Battery Current Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

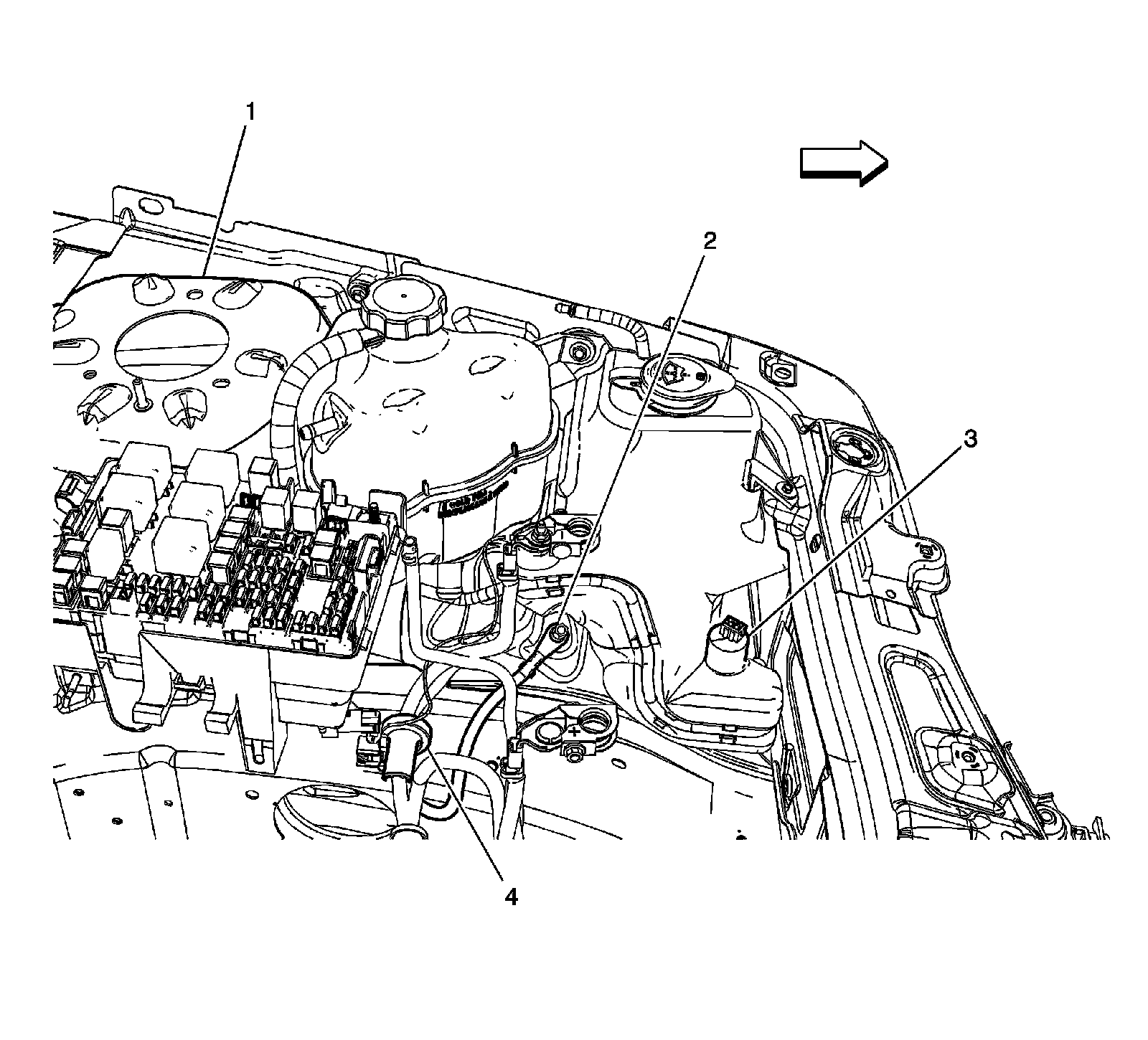

Left Front Engine Compartment Components 1 of 2




1 - Left Front Strut Tower
2 - G103
3 - Windshield Washer Fluid Pump
4 - Battery Current Sensor
