Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

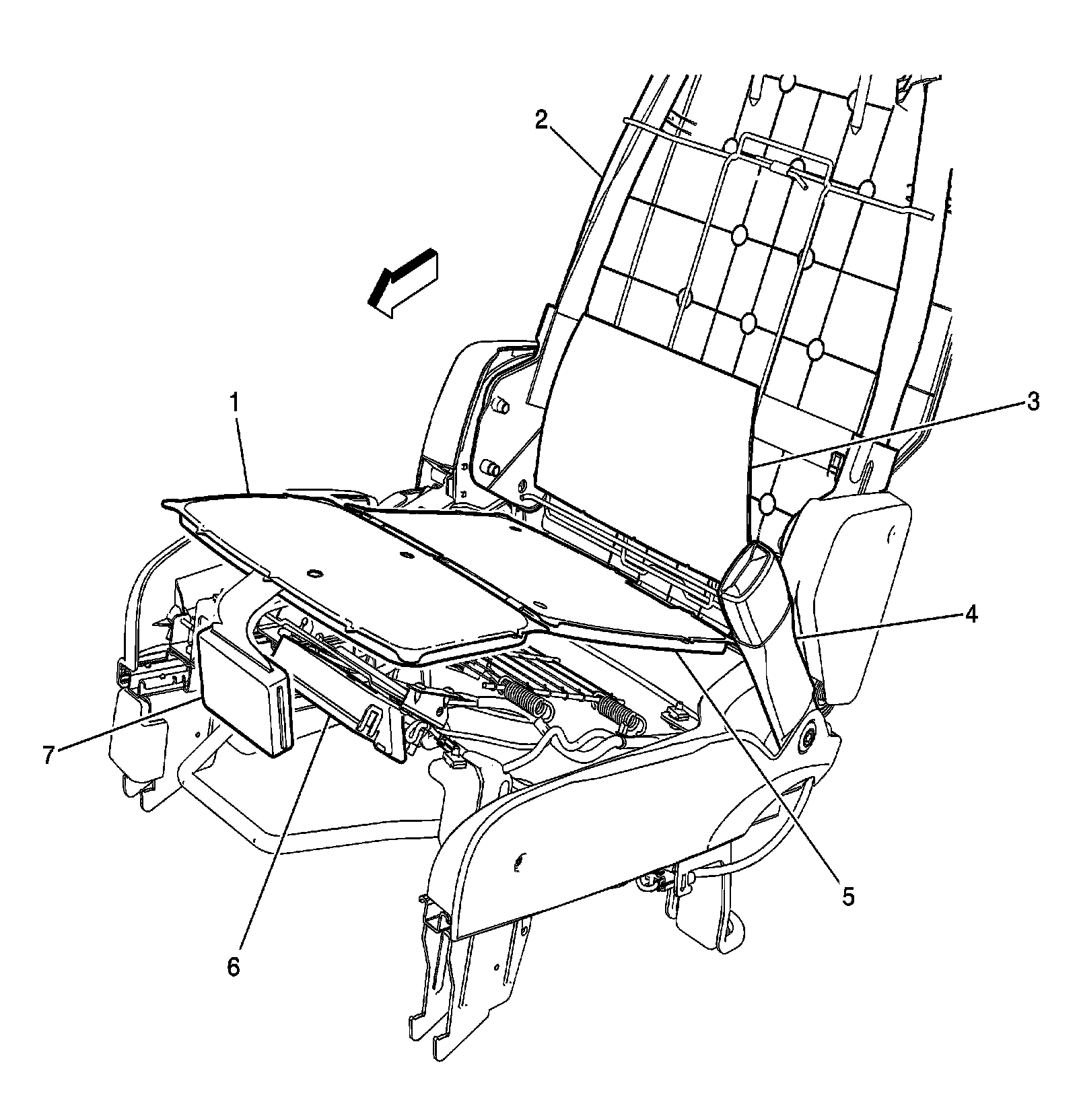

Manual Passenger Seat Components




1 - Inflatable Restraint Passenger Presence (PPS) Sensor
2 - Seat Frame
3 - Heated Seat Element - Front Passenger Back (KA1)
4 - Seat Belt Switch - Passenger
5 - Heated Seat Element - Front Passenger Cushion (KA1)
6 - Heated Seat Control Module (KA1)
7 - Inflatable Restraint Passenger Presence (PPS) Module
