Windshield Wiper System Module Replacement

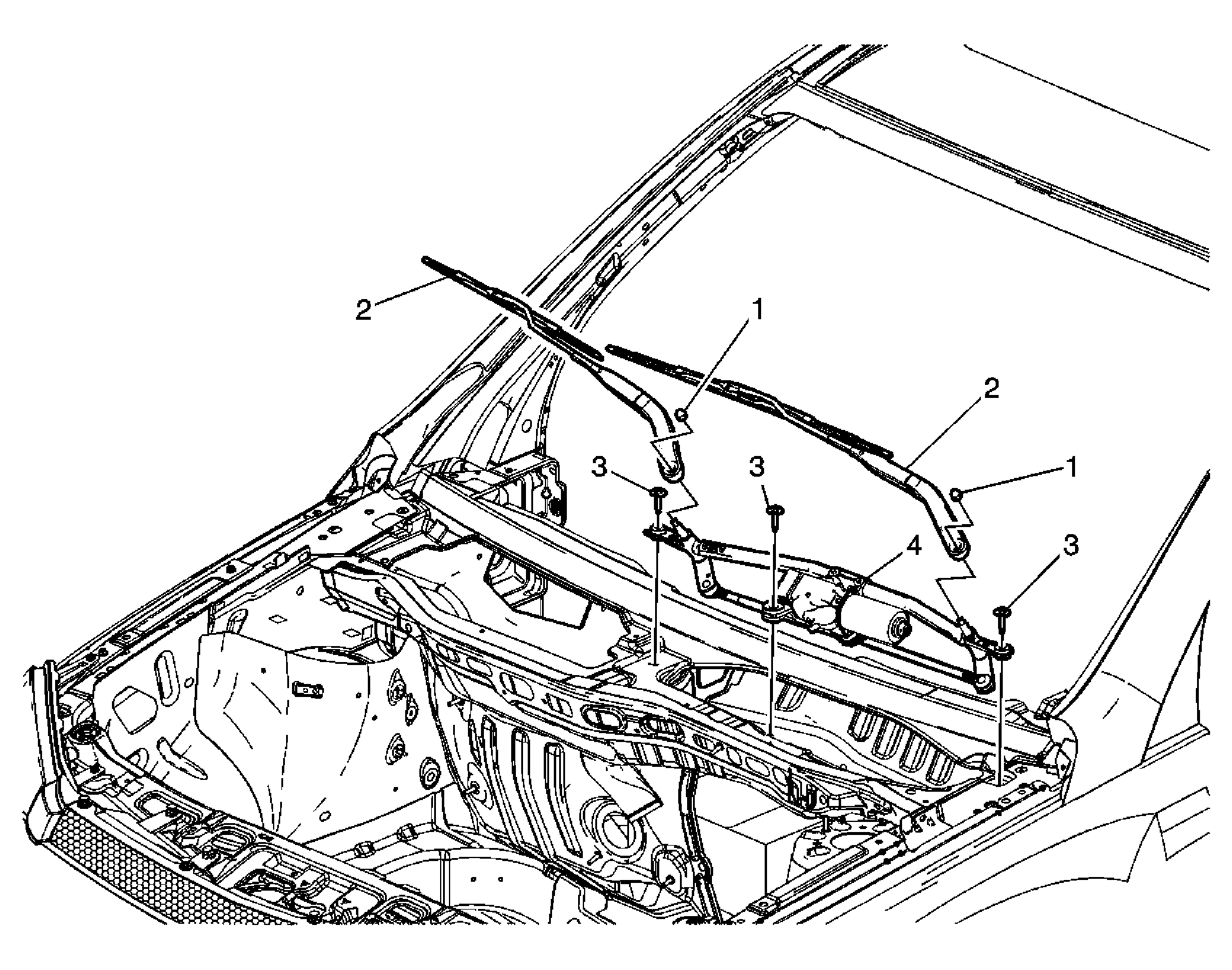

Fig 1: View Of Windshield Wiper Motor Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Windshield Washer Arm Nut (Qty: 4) Tighten: 28 N.m (21 lb ft)
2	Windshield Washer Arm Assembly Tip: Position wiper blade assembly at the dot in lower portion of windshield blackout strip on driver side of vehicle. Position wiper blade assembly at the dot in windshield pillar portion of windshield blackout strip on passenger side of vehicle.
3	Windshield Washer Module Bolt (Qty: 4) Tip: Remove the air inlet grille panel to access the wiper motor module. Refer to Air Inlet Grille Panel Replacement . Tighten: 12 N.m (9 lb ft)
4	Windshield Washer Module Assembly Tip: Disconnect the electrical connector. After installation turn the key to RUN position and cycle wiper system to ensure motor is in the park position before installing the wiper arms.
