Radio X2

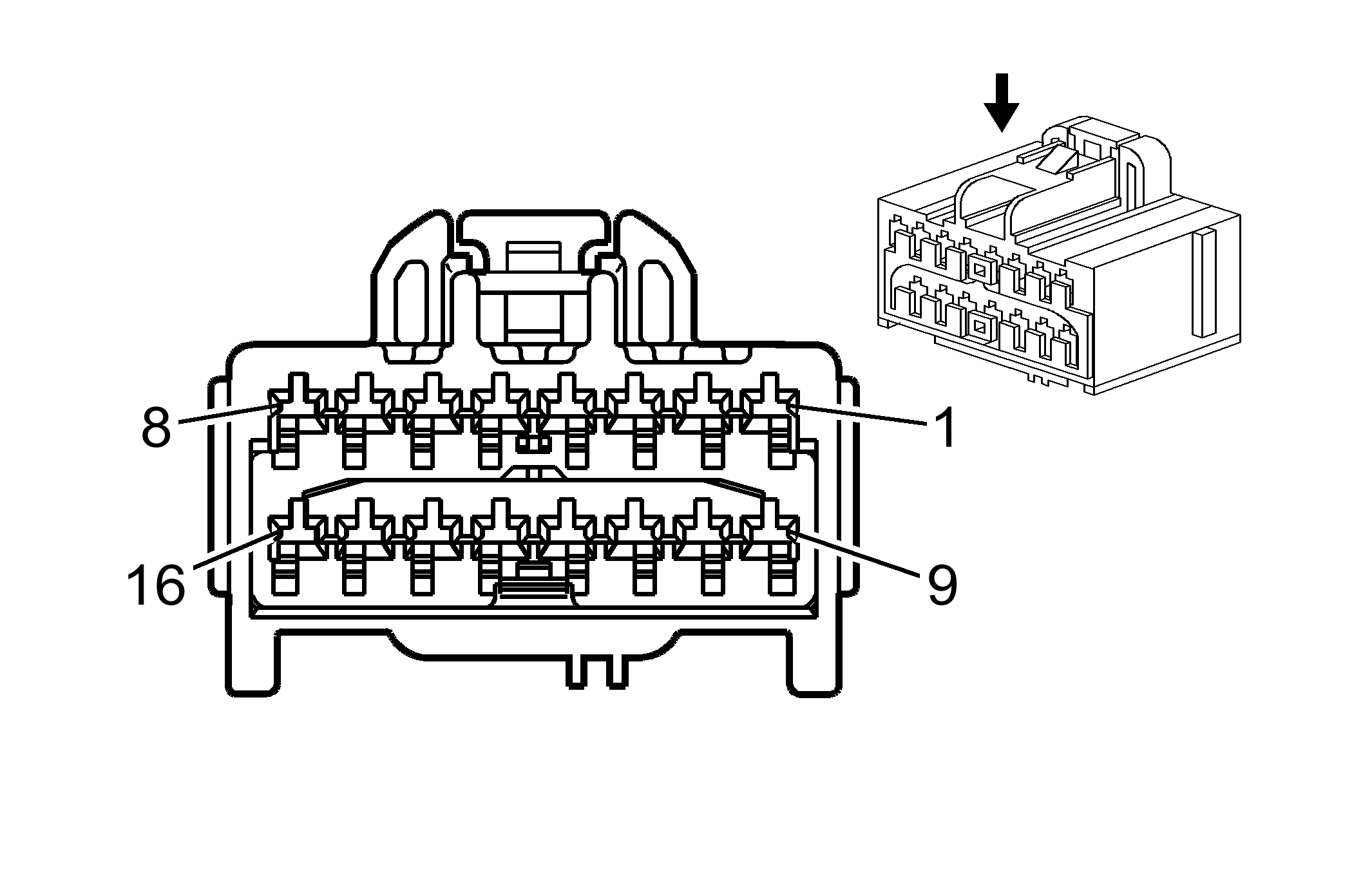

Fig 1: Radio X2 Connector End View
GM1566784Courtesy of GENERAL MOTORS CORP.
Radio X2

Pin Wire Circuit Function
1 0.5 BN/WH 367 Remote Radio Left Audio Signal (+) (U2K)
2 0.5 D-GN/WH 368 Remote Radio Right Audio Signal (+) (U2K)
3-4 - - Not Used
5 0.75 BN 199 Left Rear Speaker Output (+)
6 0.75 D-BU 46 Right Rear Speaker Output (+)
7 0.5 OG/BK 1406 Remote Playback Device Left Audio Signal
8 0.5 OG 5748 Radio Audio Mute Signal (U65)
9 0.5 TN/WH 372 Remote Radio Left Audio Signal (-) (U2K)
10 0.5 GY 388 Remote Radio Right Audio Signal (-) (U2K)
11-12 - - Not Used
13 0.75 YE 116 Left Rear Speaker Output (-)
14 0.75 L-BU 115 Right Rear Speaker Output (-)
15 0.5 L-BU 1405 Remote Playback Device Audio Common Signal
16 - - Not Used
Connector Part Information
  • OEM: 7283-9076-30
  • Service: See Catalog
  • Description: 16-Way F Kaizen 0.64 Series (BK)
Terminal Part Information
  • Pins: 1-2, 5-6, 8-10, 13-14
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: Pins 1-2, 8-10 - P/P
  • Core/Insulation Crimp: Pins 5-6, 13-14 - See Terminal Repair Kit
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
