Steering Wheel Control Switch - Right (UK3)

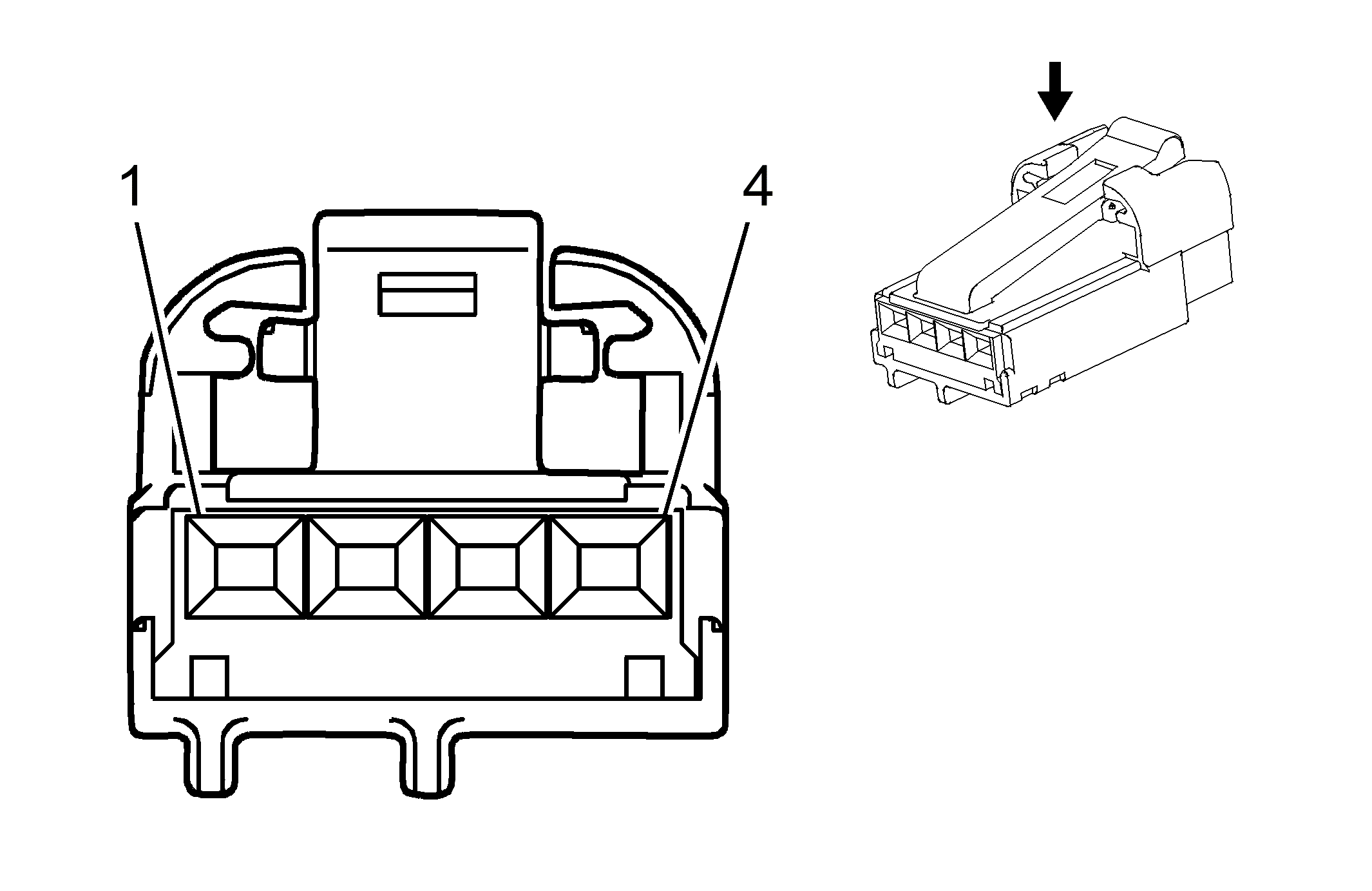

Fig 1: Steering Wheel Control Switch - Right (UK3) Connector End View
GM1711016Courtesy of GENERAL MOTORS CORP.
Steering Wheel Control Switch - Right (UK3)

Pin Wire Circuit Function
1 0.35 D-BU 1796 Steering Wheel Controls Signal
2 0.35 PU 1375 Remote Radio Control Supply Voltage
3 0.35 PU/WH 7005 LED Dimming Signal
4 0.35 BK 1450 Ground
Connector Part Information
  • OEM: 31068-1010
  • Service: See Catalog
  • Description: 4-Way F HDAC64 SR Housing (BK)
