Engine Oil Pressure (EOP) Switch (LY7)

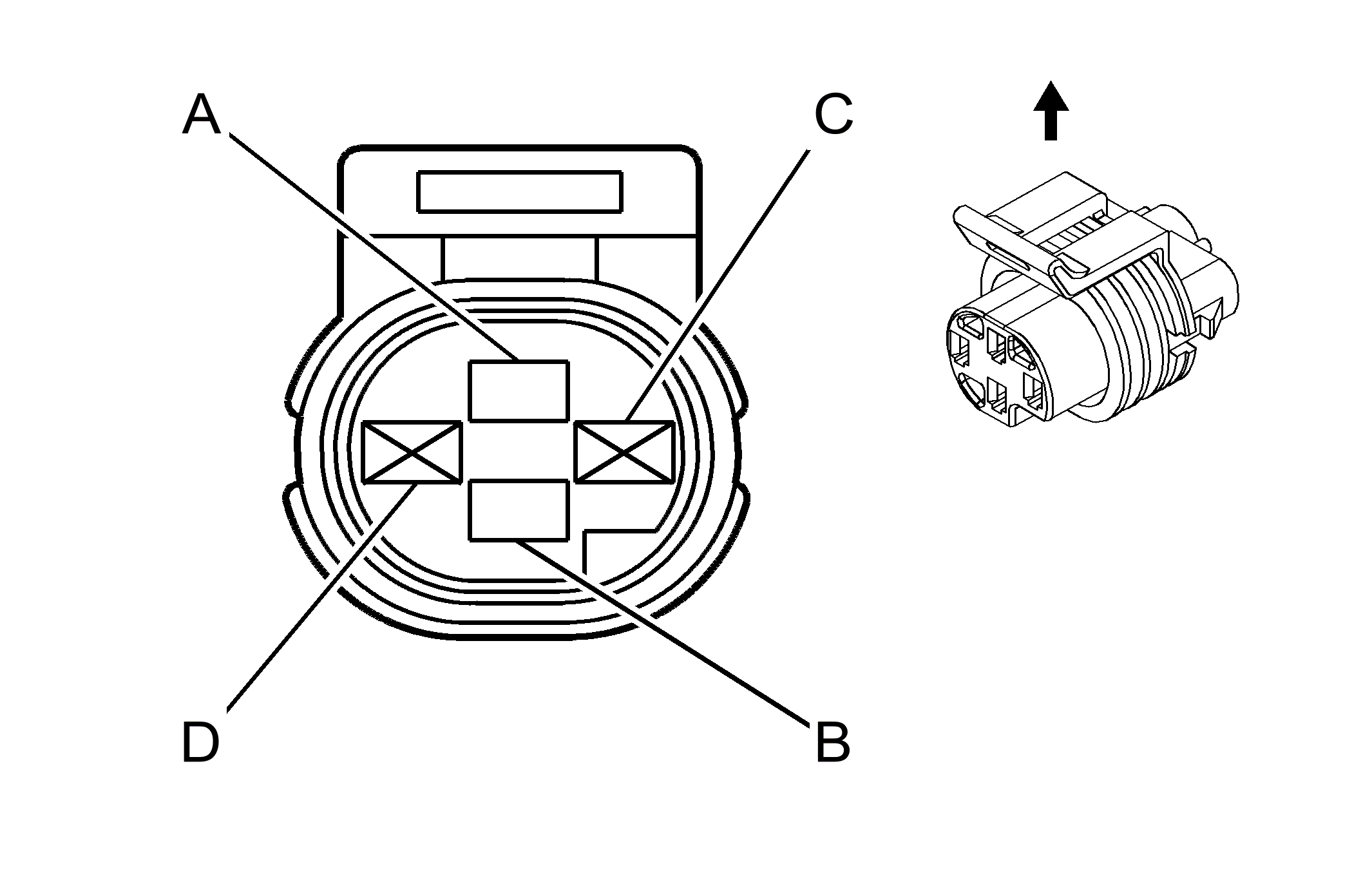

Fig 1: Engine Oil Pressure (EOP) Switch (LY7) Connector End View
GM516616Courtesy of GENERAL MOTORS CORP.
Engine Oil Pressure (EOP) Switch (LY7)

Pin Wire Circuit Function
A 0.5 TN/BK 231 Oil Pressure Switch Signal
B 0.5 TN 470 Low Reference
C-D - - Not Used
Connector Part Information
  • OEM: 12065400
  • Service: 12126436
  • Description: 4-Way F Metri-Pack 150 Series (GN)
Terminal Part Information
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
