Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LY7)

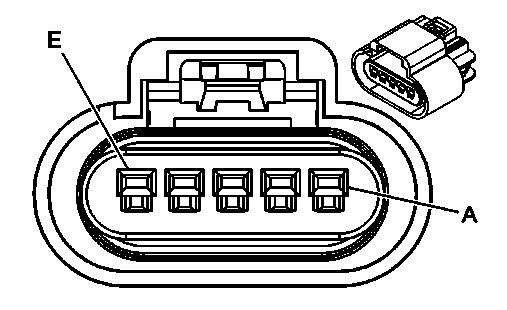

Courtesy of GENERAL MOTORS CORP. Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LY7)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 YE |
492 |
Mass Air Flow Sensor Signal |
| B |
0.5 PK |
1039 |
Ignition Voltage |
| C |
0.8 BK/WH |
451 |
Ground |
| D |
0.5 TN |
472 |
Intake Air Temperature Sensor Signal |
| E |
0.5 TN |
2760 |
Low Reference |
Connector Part Information
- OEM: 13520906
- Service: 19151493
- Description: 5-Way F GT 150 Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: Pins A-B, D-E - E/A
- Core/Insulation Crimp: Pins C - 2/A
- Release Tool/Test Probe: 15315247/J-35616-2A (GY)
|
