Outside Rearview Mirror Switch

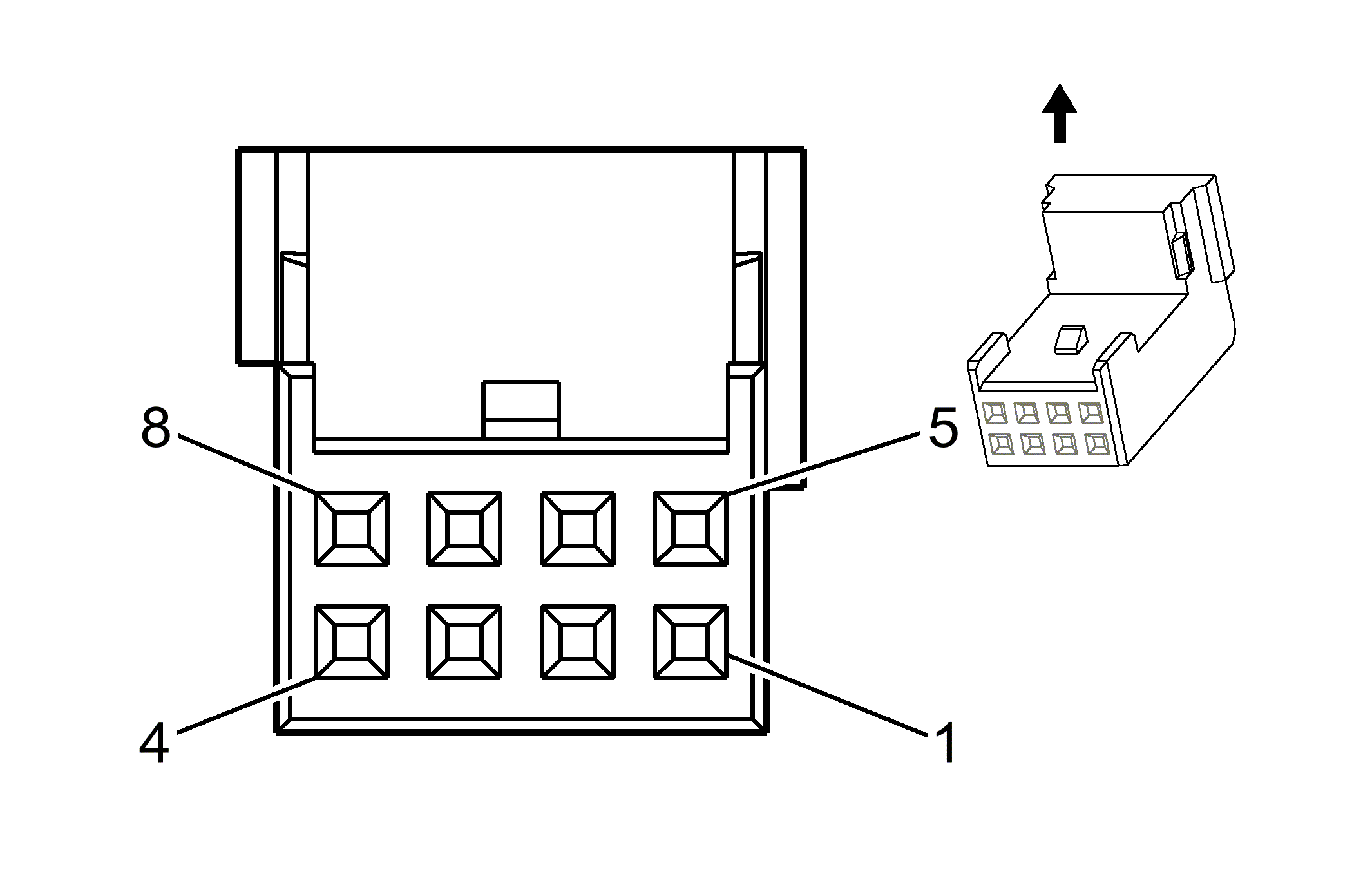

Courtesy of GENERAL MOTORS CORP. Outside Rearview Mirror Switch
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 RD/WH |
840 |
Battery Positive Voltage |
| 2 |
0.35 BK |
1450 |
Ground |
| 3 |
0.35 PU/WH |
889 |
Passenger Mirror Motor Down Control |
| 4 |
0.35 WH |
81 |
Driver Mirror Motor Right Control |
| 5 |
0.35 L-GN |
1499 |
Driver Mirror Motor Left/Up Control |
| 6 |
- |
- |
Not Used |
| 7 |
0.35 YE |
88 |
Driver Mirror Motor Down Control |
| 8 |
0.35 OG/WH |
881 |
Passenger Mirror Motor Right Control |
Connector Part Information
- OEM: 15327190
- Service: See Catalog
- Description: 8-Way F Ducon 0.8 Unsealed (GY)
|
Terminal Part Information
- Terminal/Tray: 15326592/19
- Core/Insulation Crimp: E/2
- Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
|
