Radio X1

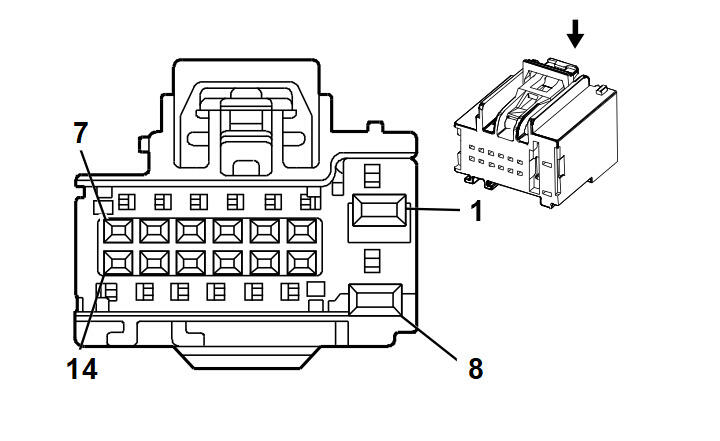

Fig 1: Radio X1 Connector End View
GM1664602Courtesy of GENERAL MOTORS CORP.
Radio X1

Pin Wire Circuit Function
1 1.0 RD/WH 2040 Battery Positive Voltage
2 0.75 TN 201 Left Front Speaker Output (+)
3 0.75 TN 1875 Right Front Speaker Output (+)
4 0.5 YE 7154 Communication Box Mic Output (+) Signal (UE1 +U3U)
5 0.5 GN 7149 Communication Box Mic Output (-) Signal (UE1 +U3U)
6 0.5 WH 1487 Antenna Enable Signal
7 0.35 PU/WH 1382 LED Dimming Signal
8 0.8 BK/WH 1551 Ground
9 0.75 GY 118 Left Front Speaker Output (-)
10 0.75 TN/WH 1975 Right Front Speaker Output (-)
11-12 - - Not Used
13 0.35 D-GN 5060 Low Speed GMLAN Serial Data
14 - - Not Used
Connector Part Information
  • OEM: 7283-4490-30
  • Service: 88988743
  • Description: 14-Way F (BK)
Terminal Part Information
  • Pins: 1, 8
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: C/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: 2-7, 9-10, 13
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: Pins 2, 3, 9-10 - See Terminal Repair Kit
  • Core/Insulation Crimp: Pins 4-7, 13 - P/P
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
