Rollover Sensor

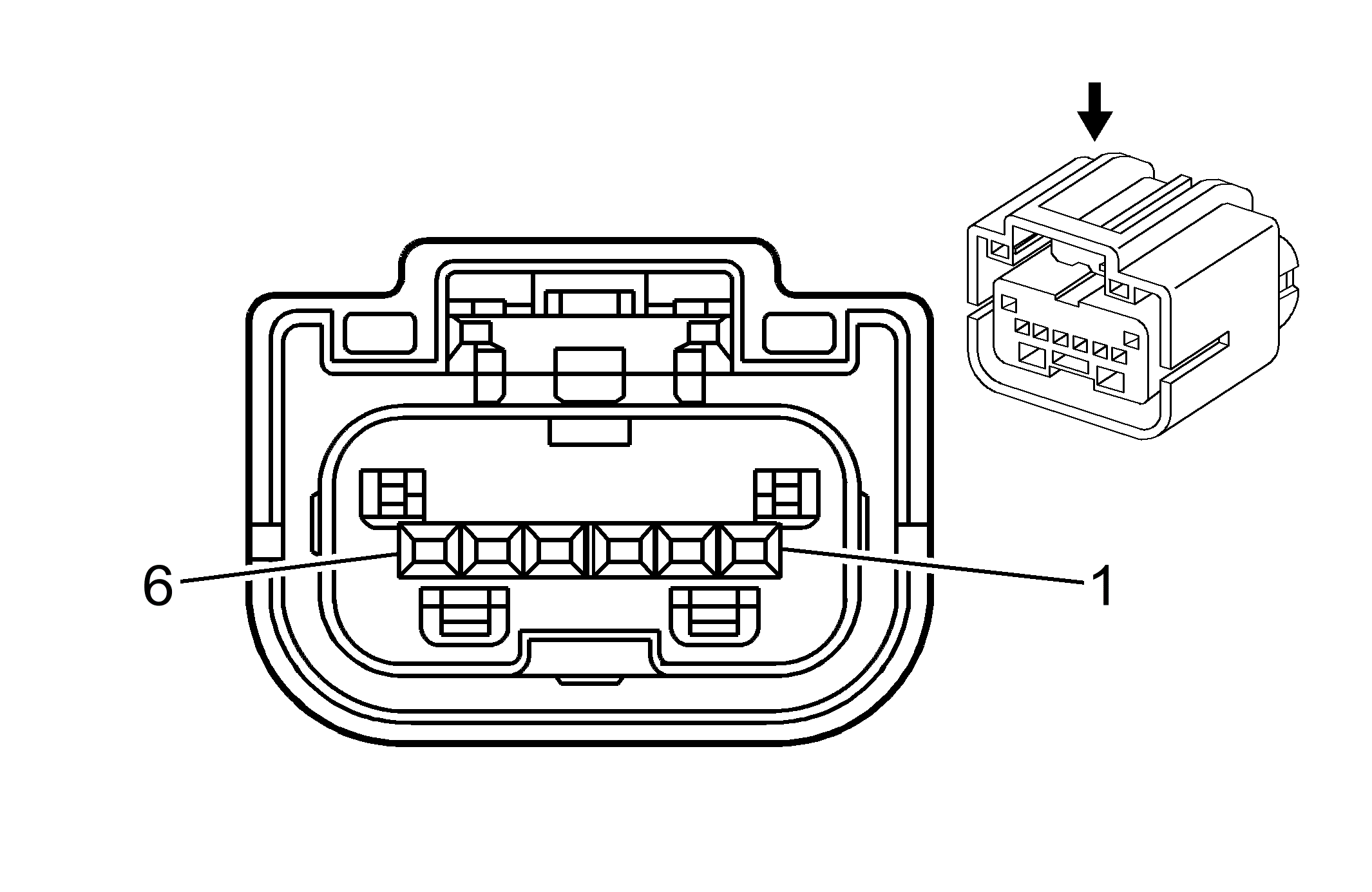

Fig 1: Rollover Sensor Connector End View
GM1845399Courtesy of GENERAL MOTORS CORP.
Rollover Sensor

Pin Wire Circuit Function
1 0.5 RD/WH 1340 Battery Positive Voltage
2 - - Not Used
3 0.35 D-GN 5060 Low Speed GMLAN Serial Data
4 0.35 D-GN 5060 Low Speed GMLAN Serial Data
5 0.35 YE/BK 5229 Roll Over Sensor High Signal
6 0.5 BK/WH 651 Ground
Connector Part Information
  • OEM: 6189-7001
  • Service: See Catalog
  • Description: 6-Way F 0.64 Series Sealed (YE)
Terminal Part Information
  • Pins: 1, 6
  • Terminal/Tray: 8100-3427/22
  • Core/Insulation Crimp: K/K
  • Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
  • Pins: 3-5
  • Terminal/Tray: 8100-3426/22
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
