Shift Solenoid 2 (AF33-5)

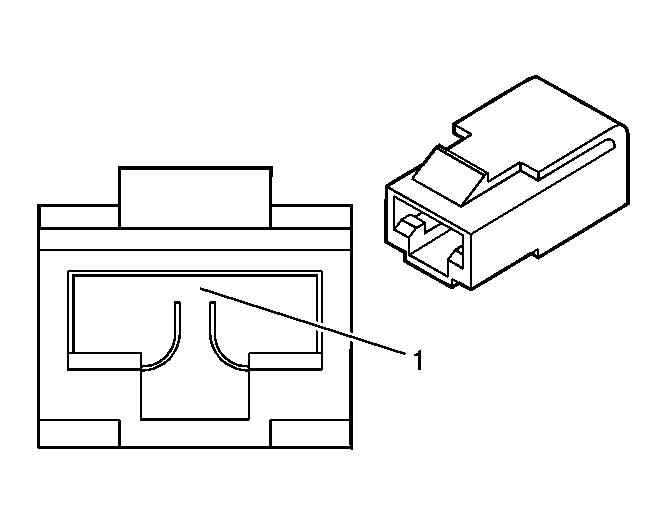

Fig 1: Shift Solenoid 2 (AF33-5) Connector End View
GM1545981Courtesy of GENERAL MOTORS CORP.
Shift Solenoid 2 (AF33-5)

Pin Wire Circuit Function
1 BK 1223 Shift Solenoid Valve 2 High Control
Connector Part Information
  • OEM: Aisin AW
  • Service: Non-Serviceable
  • Description: Conn 1-Way F (BK)
Terminal Part Information
  • Terminal: Non-Serviceable
  • Core/Insulation Crimp: Non-Serviceable
  • Release Tool/Test Probe: Non-Serviceable
