Speaker - Left Front (Tweeter)

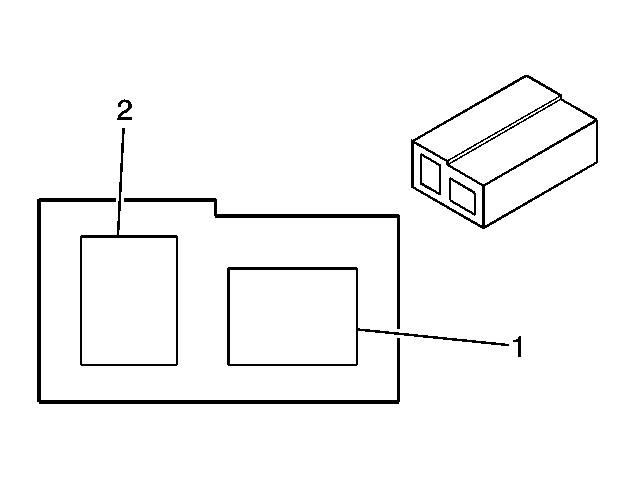

Fig 1: Speaker - Left Front (Tweeter) Connector End View
GM1282877Courtesy of GENERAL MOTORS CORP.
Speaker - Left Front (Tweeter)

Pin Wire Circuit Function
1 0.8 GY 201 Left Front Speaker Output (+)
2 0.8 TN 118 Left Front Speaker Output (-)
Connector Part Information
  • OEM: 626064-0
  • Service: See Catalog
  • Description: 2-Way F Faston 2.8 Series (NA)

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
