Wheel Speed Sensor - Right Rear

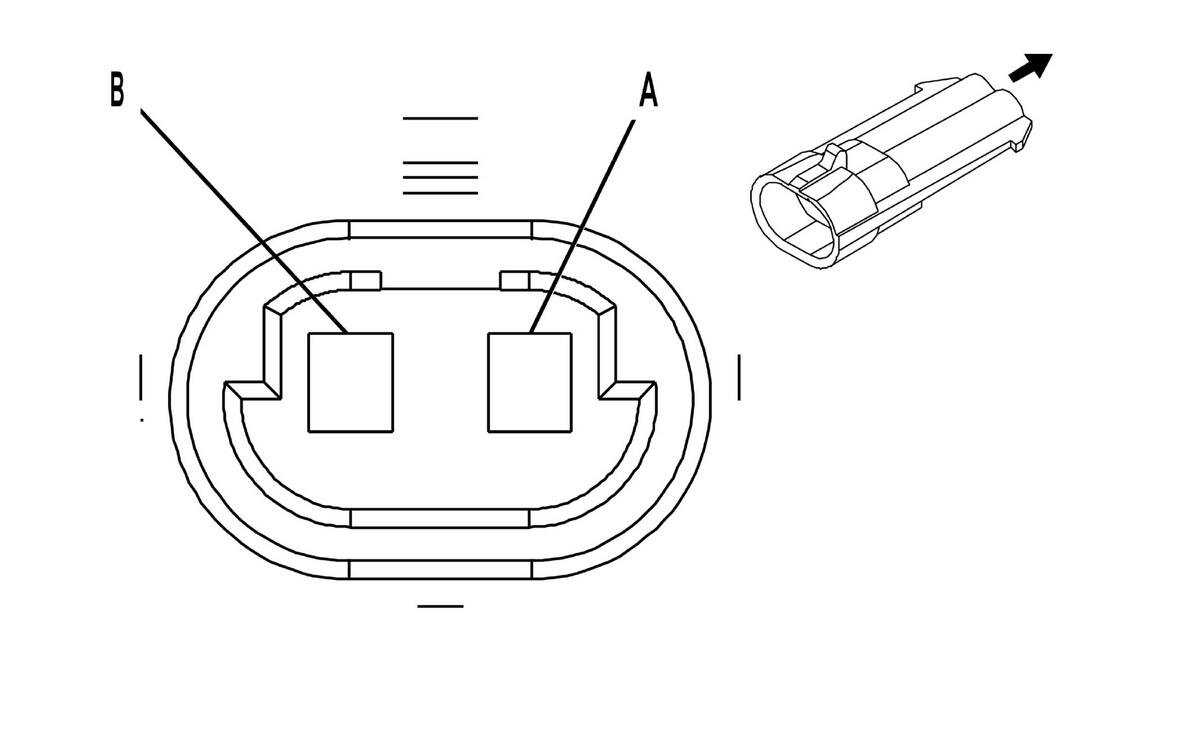

Fig 1: Wheel Speed Sensor - Right Rear Connector End View
GM605500Courtesy of GENERAL MOTORS CORP.
Wheel Speed Sensor - Right Rear

Pin Wire Circuit Function
A 0.5 WH 883 Right Rear Wheel Speed Sensor Low Reference
B 0.5 BN 882 Right Rear Wheel Speed Sensor Signal
Connector Part Information
  • OEM: 12162343
  • Service: 12162343
  • Description: 2-Way M Metri-Pack 150 Series (GY)
Terminal Part Information
  • Terminal/Tray: 12045773/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-3 (GY)
