Window Motor - Driver

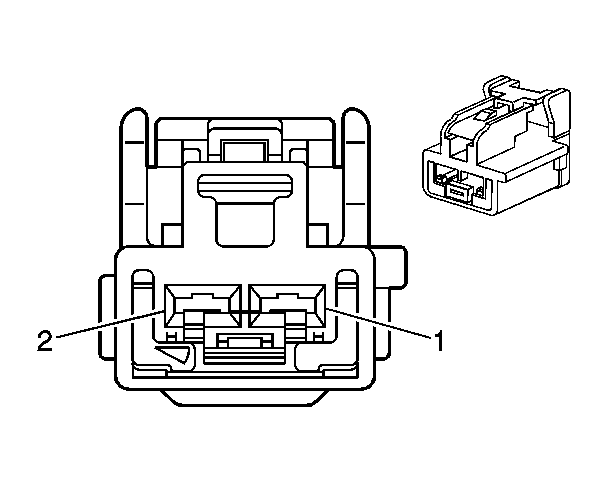

Fig 1: Window Motor - Driver Connector End View
GM1415174Courtesy of GENERAL MOTORS CORP.
Window Motor - Driver

Pin Wire Circuit Function
1 2.0 BN 165 Power Window Motor Left Front Down Control
2 2.0 D-BU 164 Power Window Motor Left Front Up Control
Connector Part Information
  • OEM: 7283-5565-40
  • Service: See Catalog
  • Description: 2-Way F YESC/USCAR Series (L-GY)

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
