Windshield Washer Fluid Pump

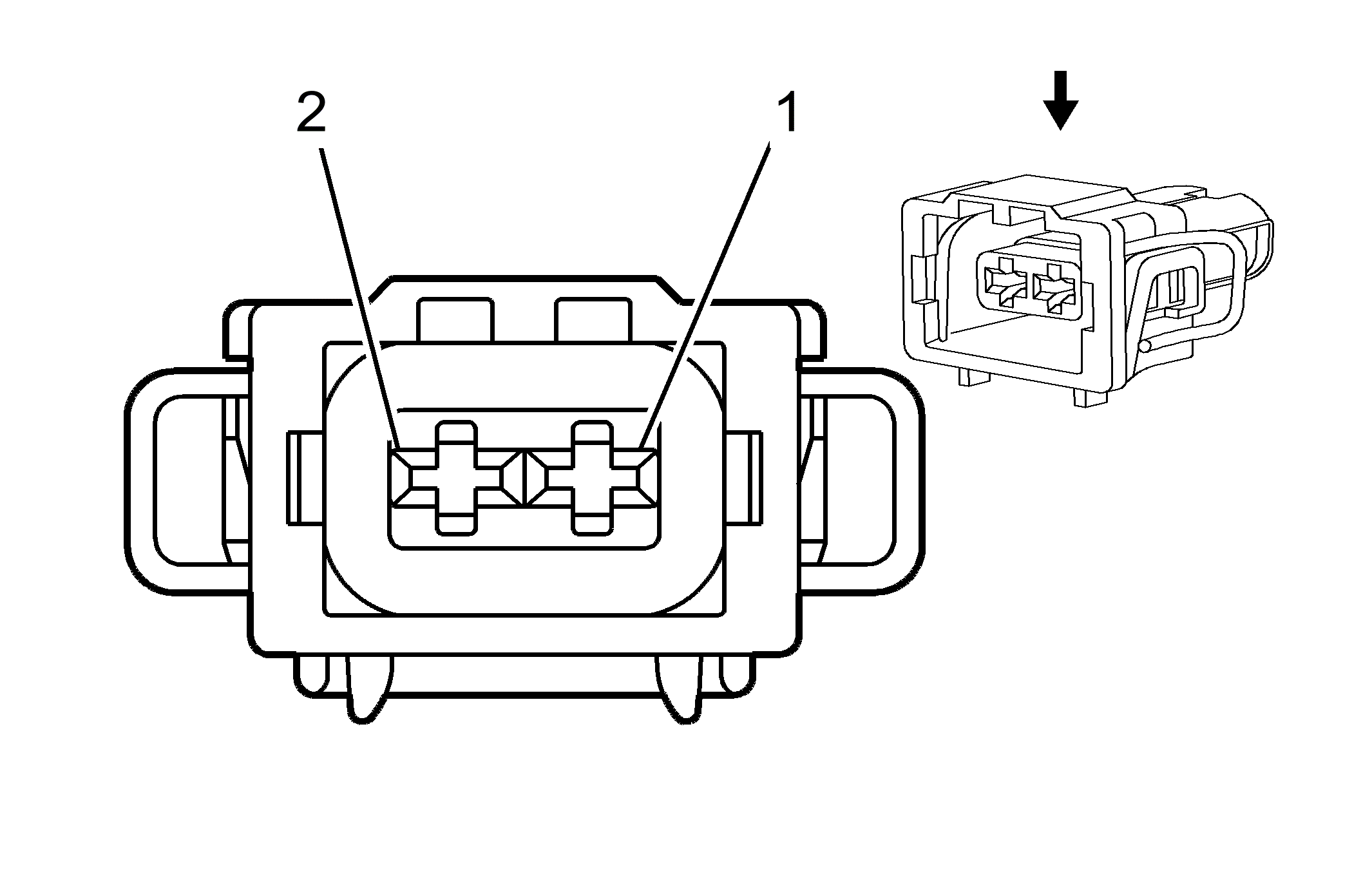

Fig 1: Windshield Washer Fluid Pump Connector End View
GM1243629Courtesy of GENERAL MOTORS CORP.
Windshield Washer Fluid Pump

Pin Wire Circuit Function
1 0.8 D-GN 392 Rear Window Washer Pump Control
2 0.8 D-BU 298 Rear Window Washer Pump Control
Connector Part Information
  • OEM: 12185025
  • Service: 89046634
  • Description: 2-Way F Mini Timer (BK)
Terminal Part Information
  • Terminal/Tray: 60012941/21
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 12122378/J-35616-4A (PU)
