Fuse Block - Instrument Panel Label

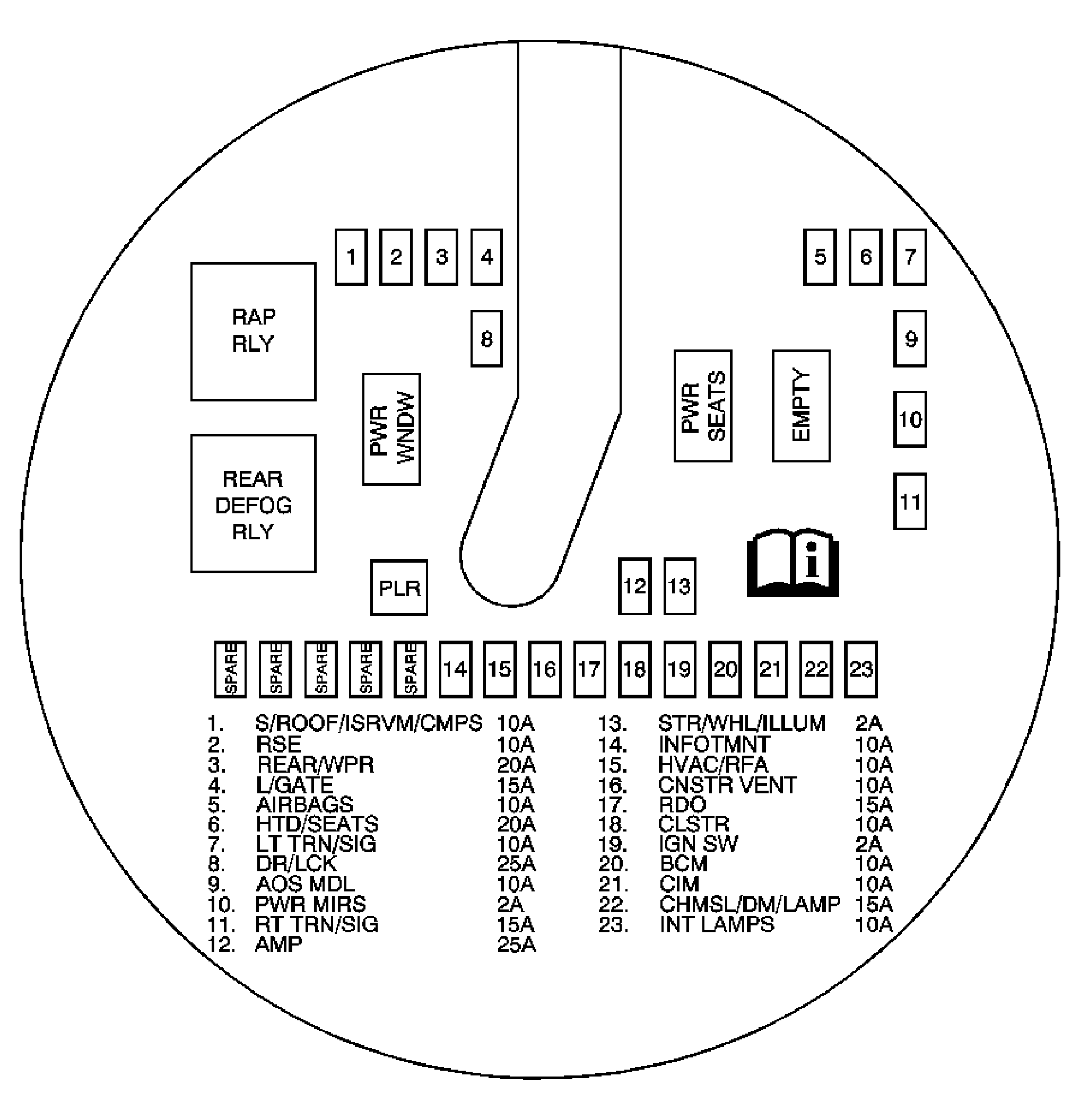

Fuse Block - Instrument Panel Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | S/ROOF | 20A | Inside Rearview Mirror (ISRVM), Sunroof Control Module (CF5) |
| 2 | RSE | 10A | Infrared Transmitter Module (UUC) |
| 3 | REAR/WPR | 20A | Rear Window Wiper Motor |
| 4 | L/GATE | 15A | Liftgate Latch |
| 5 | AIRBAGS | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM), Rollover Sensor (ASF) |
| 6 | HTD SEATS | 20A | Heated Seat Control Module (KA1) |
| 7 | LT TRN/SIG | 10A | Body Control Module (BCM) |
| 8 | DR/LCK | 25A | UNLOCK PCB Relay, DRIVER UNLOCK PCB Relay, LOCK PCB Relay |
| 9 | AOS MDL | 10A | Inflatable Restraint Passenger Presence (PPS) Module |
| 10 | PWR MIRS | 2A | Outside Rearview Mirror Switch |
| 11 | RT TRN/SIG | 15A | Body Control Module (BCM) |
| 12 | AMP | 25A | Amplifier (U65) |
| 13 | STR/WHL/ILLUM | 2A | Steering Wheel Control Switch - Left (UK3/K34), Steering Wheel Control Switch - Right (UK3/K34) |
| 14 | INFOTMNT | 10A | Video Display (UUC), Digital Radio Receiver (U2K) |
| 15 | HVAC/RFA | 10A | Remote Control Door Lock Receiver (RCDLR), HVAC Control Module, Data Link Connector (DLC) |
| 16 | CNSTR VENT | 10A | Evaporative Emissions (EVAP) Canister Vent Solenoid |
| 17 | RDO | 15A | Radio |
| 18 | CLSTR | 10A | Instrument Panel Cluster (IPC) |
| 19 | IGN SW | 2A | Ignition Switch |
| 20 | BCM | 10A | Body Control Module (BCM), Theft Deterrent Module (TDM) |
| 21 | ONSTAR | 10A | Vehicle Communication Interface Module (VCIM) (UE1) |
| 22 | CHMSL/DM/LAMP | 15A | Body Control Module (BCM) |
| 23 | INT LAMPS | 10A | Body Control Module (BCM) |
| - | PWR SEATS Circuit Breaker | 25A | Seat Adjuster Switch - Driver (AG1) |
| - | PWR WNDW Circuit Breaker | 25A | Power Window Switch - Main |
| - | REAR DEFOG Relay | - | Rear Defogger Grid |
