Front of Vehicle/Engine Compartment Component Views

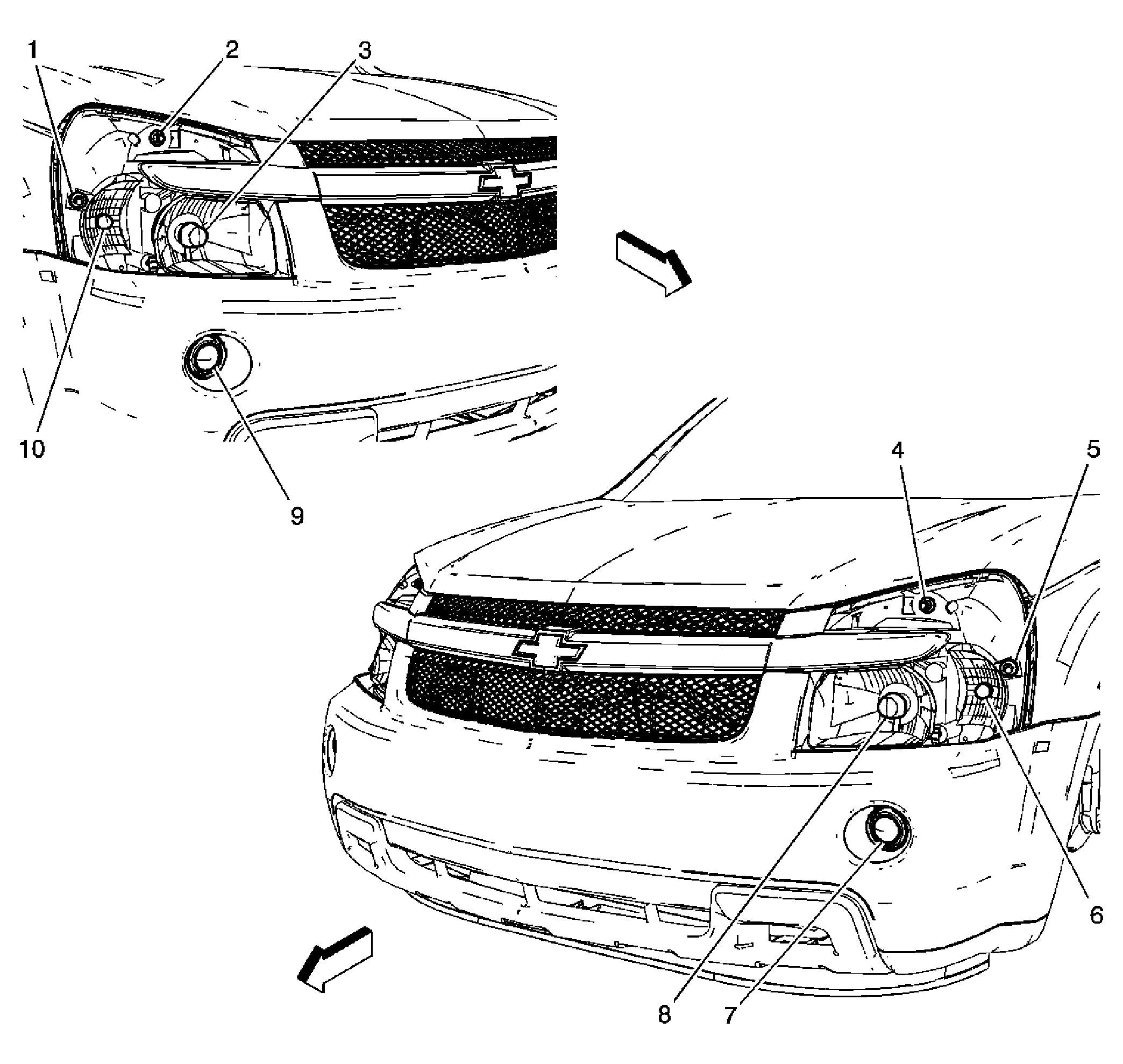

Fig 1: View Of Front Lighting Components (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Right Front
2	Park Lamp - Right Front
3	Headlamp - Right
4	Park Lamp - Left Front
5	Marker Lamp - Left Front
6	Turn Signal Lamp - Left Front
7	Fog Lamp - Left (T96)
8	Headlamp - Left
9	Fog Lamp - Right (T96)
10	Turn Signal Lamp - Right Front

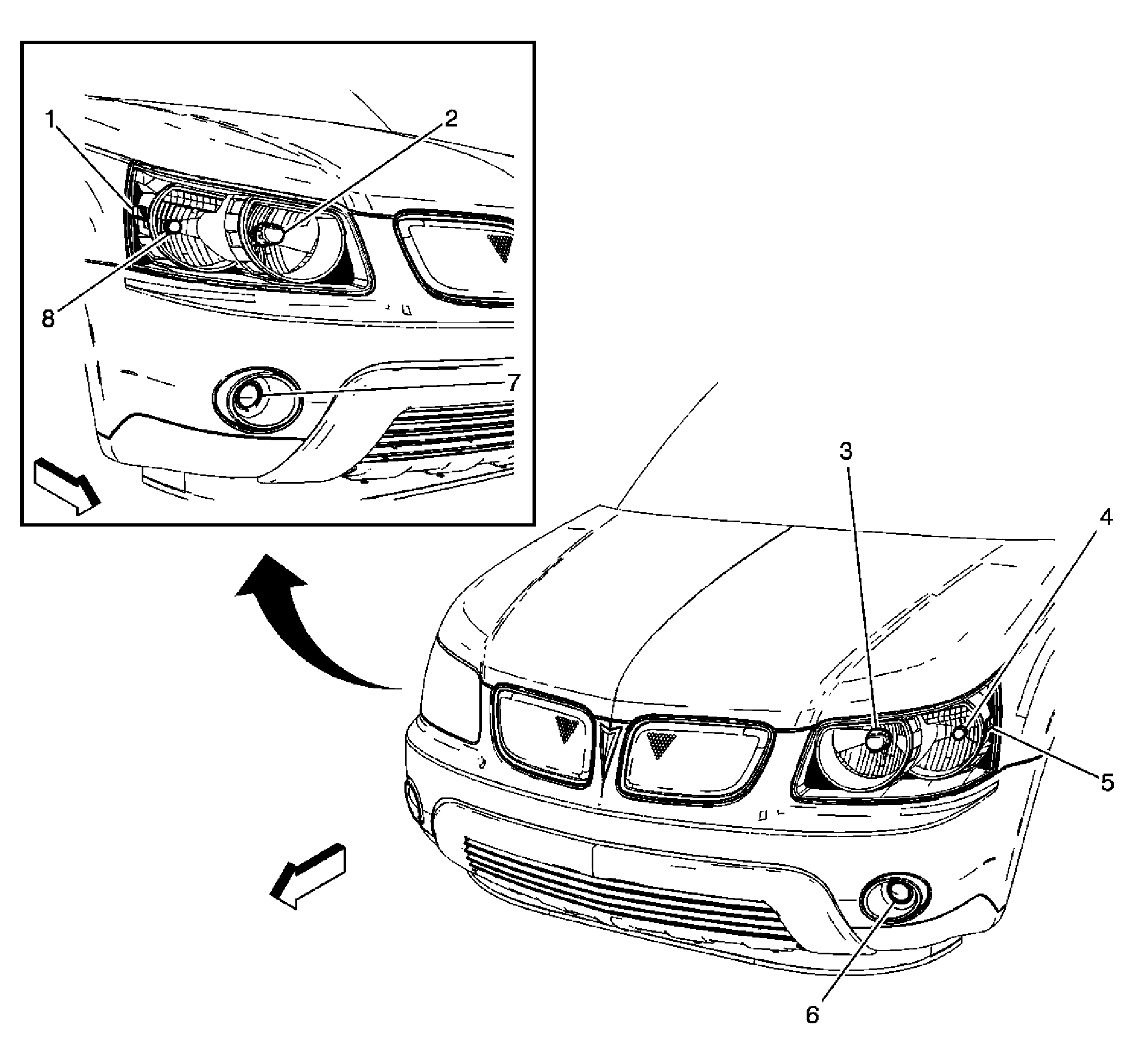

Fig 2: View Of Front Lighting Components (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Right Front
2	Headlamp - Right
3	Headlamp - Left
4	Park/Turn Signal Lamp - Left Front
5	Marker Lamp - Left Front
6	Fog Lamp - Left (T96)
7	Fog Lamp - Right (T96)
8	Park/Turn Signal Lamp - Right Front

Fig 3: Below Front Impact Bar View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Right
2	Radiator
3	Ambient Air Temperature Sensor (DH3/DF5)

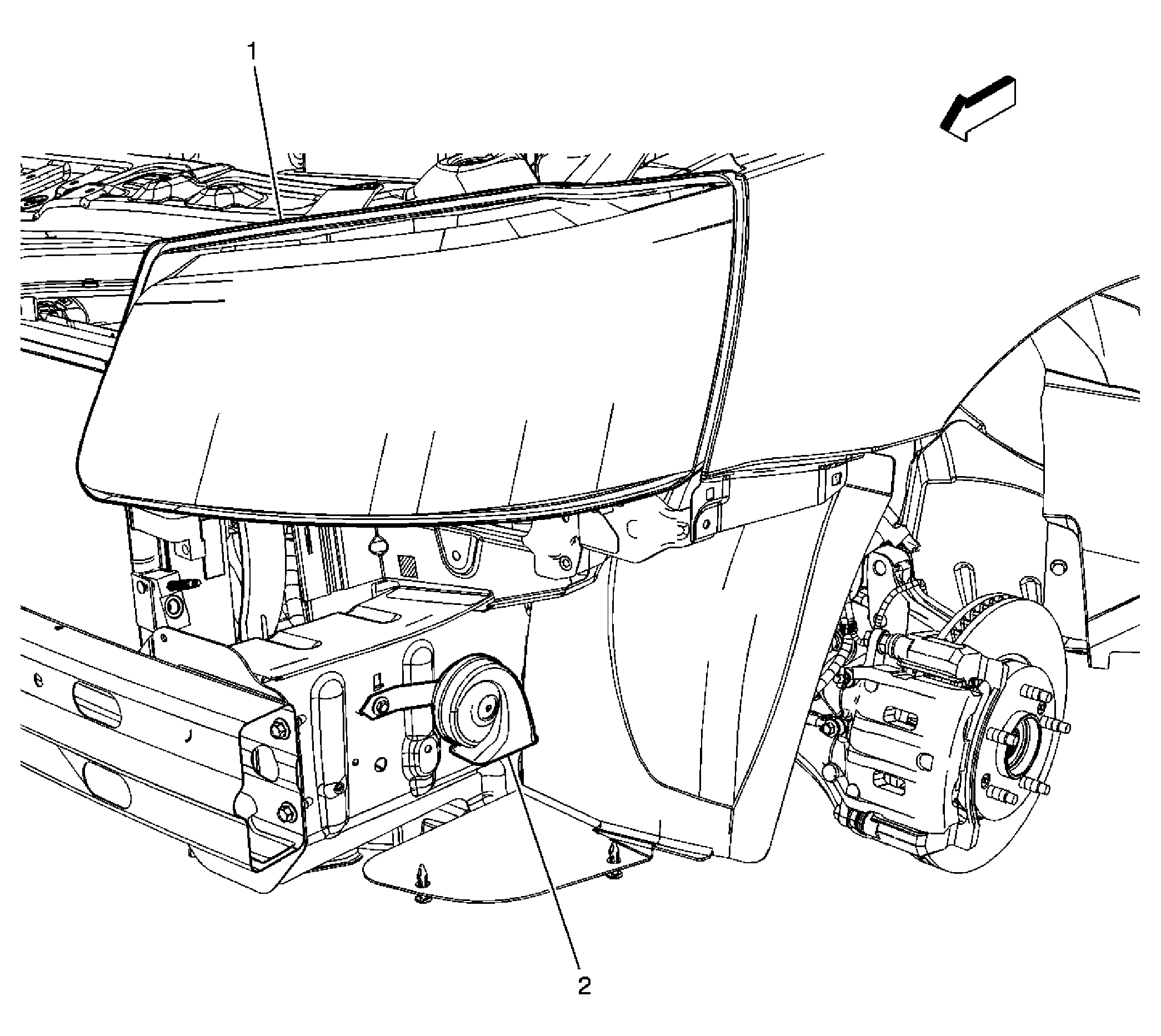

Fig 4: Below LF Headlamp View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left
2	Horn

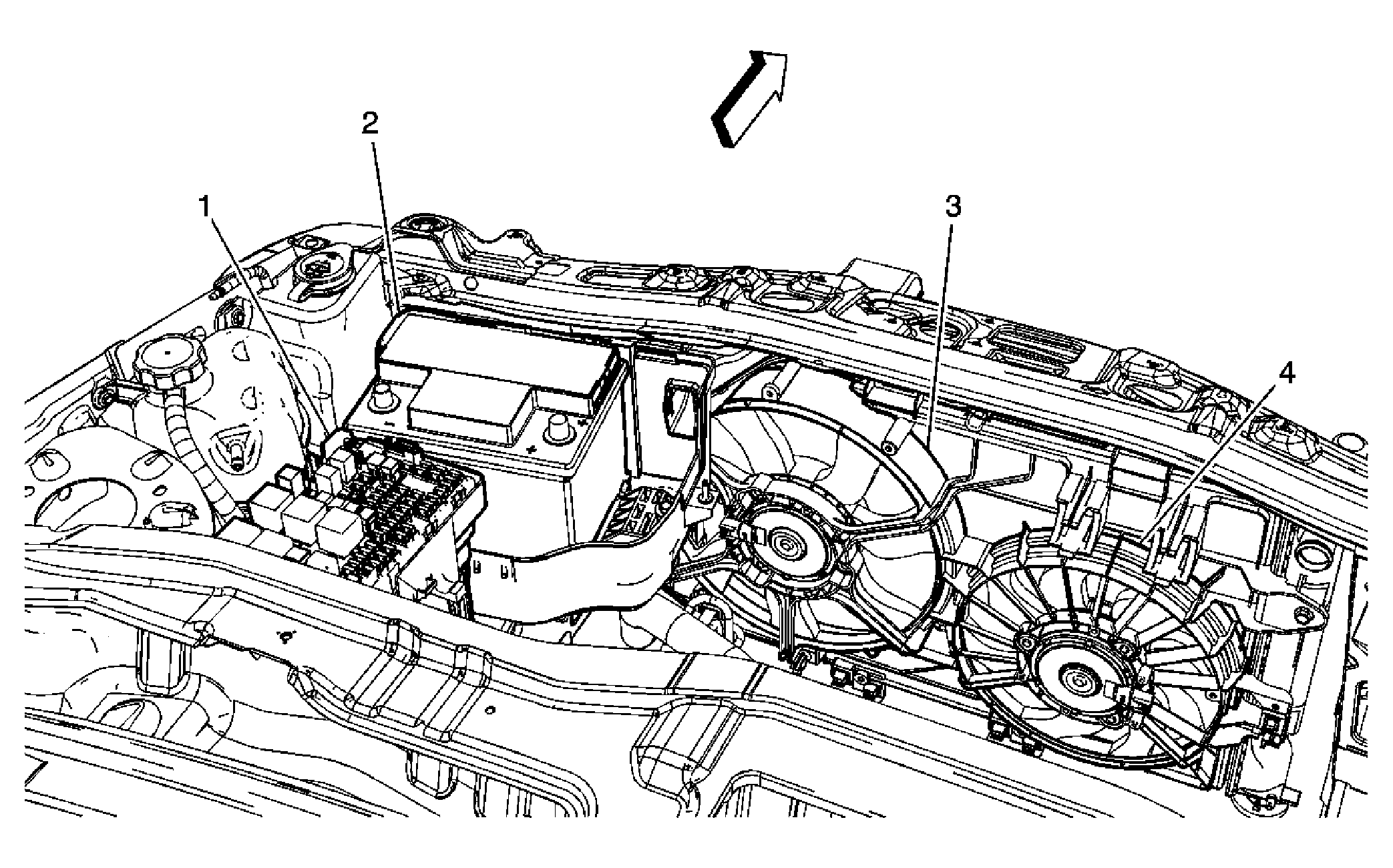

Fig 5: View Of Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Battery
3	Cooling Fan - Left
4	Cooling Fan - Right

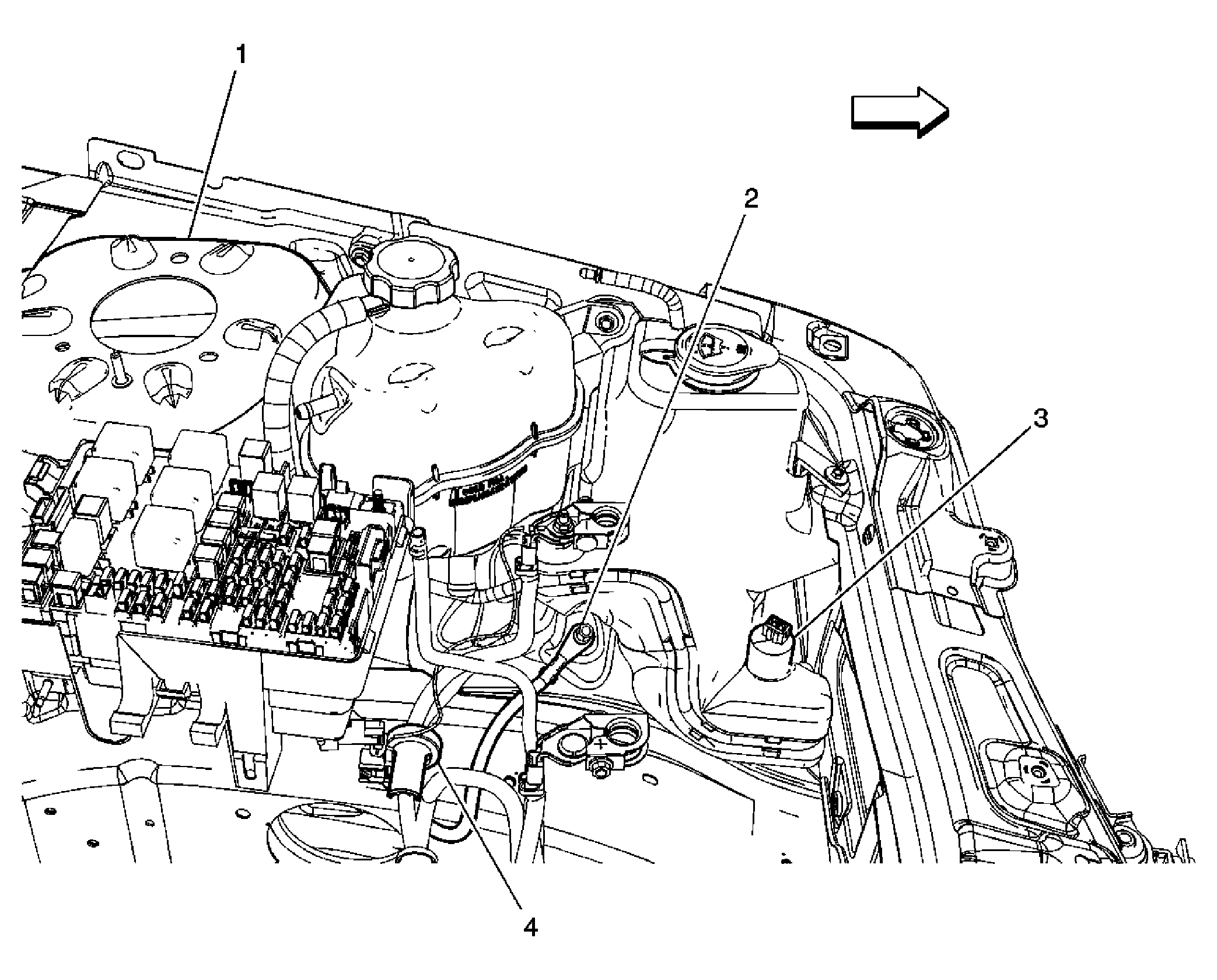

Fig 6: View Of Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Front Strut Tower
2	G103
3	Windshield Washer Fluid Pump
4	Battery Current Sensor

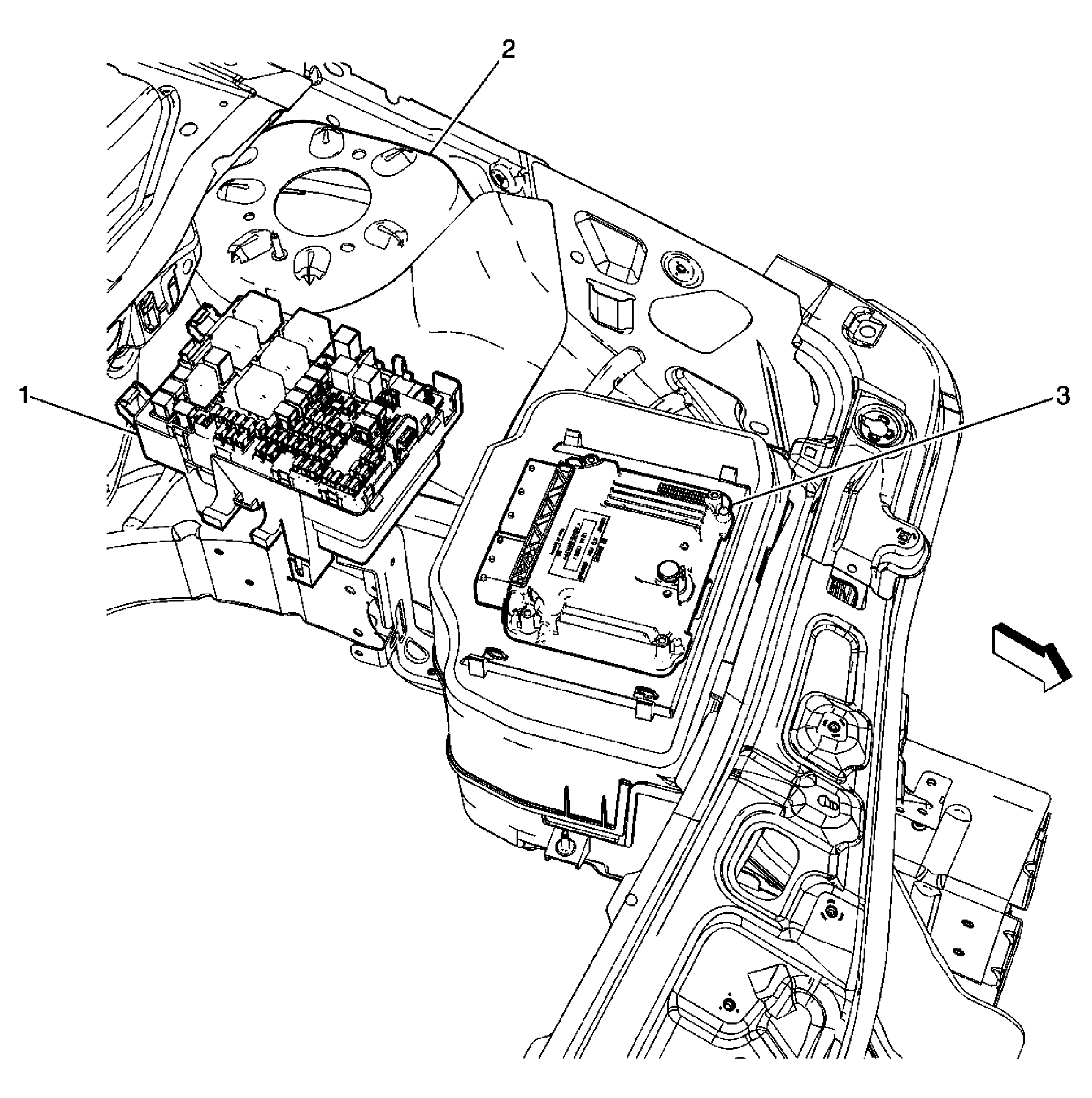

Fig 7: View From Above Of Battery

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Left Front Strut Tower
3	Engine Control Module (ECM)

Fig 8: View Of Top Of Windshield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM)
2	Hood

Fig 9: View Of Hood Latch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Left
2	Radiator Core Support
3	Cooling Fan - Right
4	Cooling Fan - Left

Fig 10: View Of Brake Booster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Left Front Strut Tower
3	Electronic Brake Control Module (EBCM)
