Installation Procedure

    CAUTION: Do not tip the battery over a 45 degree angle or acid could spill causing serious personal injury.

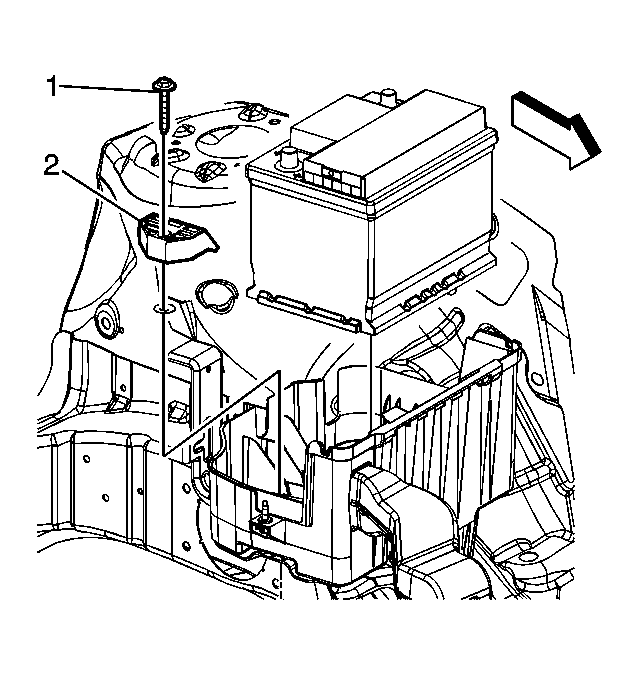

    Fig 1: View Of Battery Hold Down & Bolt
    GM1822623Courtesy of GENERAL MOTORS CORP.
  1. Install the battery to the battery box.
    2. NOTE: Refer to Fastener Notice .
  2. Install the battery hold down and bolt, tighten the bolt.

    Tighten:  Tighten the bolt to 15 N.m (11 lb ft).

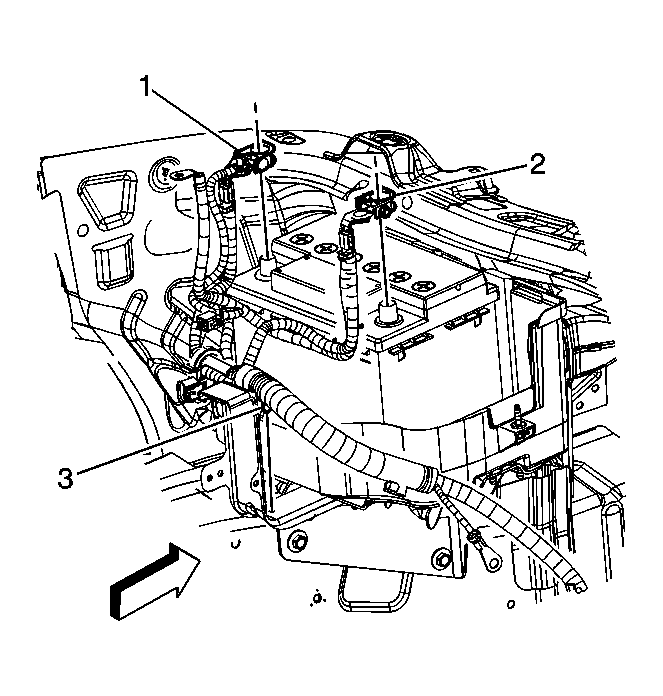

    3. Fig 2: View Of Battery Cables & Terminal Nut
    GM1822394Courtesy of GENERAL MOTORS CORP.
  3. Install the positive battery cable lead (2) to the battery.
  4. Tighten the positive battery cable terminal nut.

    Tighten:  Tighten the nut to 17 N.m (13 lb ft).

  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
