Electronic Navigation Antenna Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Panel Replacement
.
- Remove the radio. Refer to Radio Replacement .
|

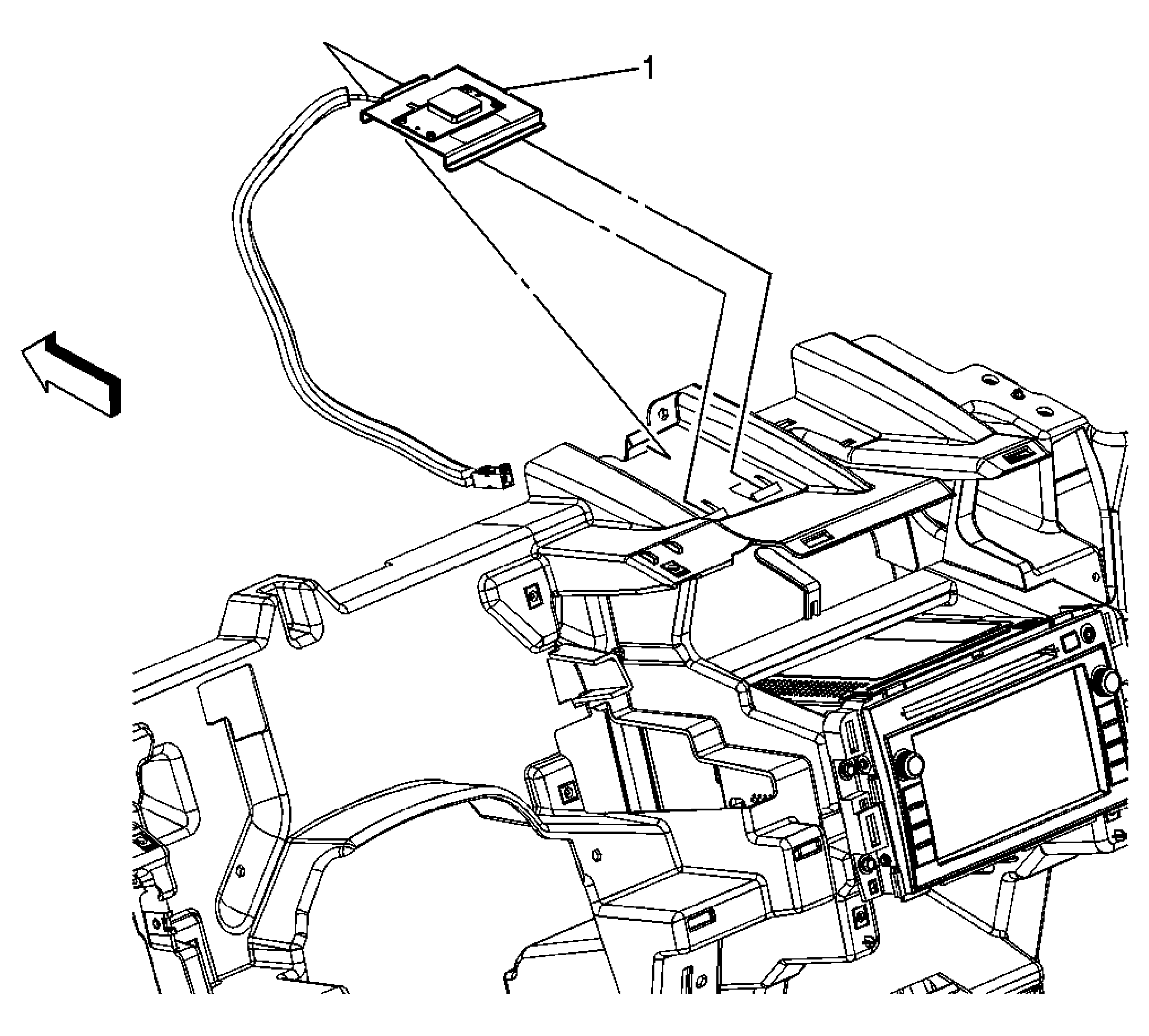

| 1 |
Navigation Antenna Assembly Procedure
- Unclip the navigation antenna from the instrument panel retainer.
- Note the routing of the antenna for installation purposes.
|
