Shift Interlock Control Module



Shift Lock Control Connector End Views

Shift Lock Control Module







Automatic Transmission External Component Connector End Views

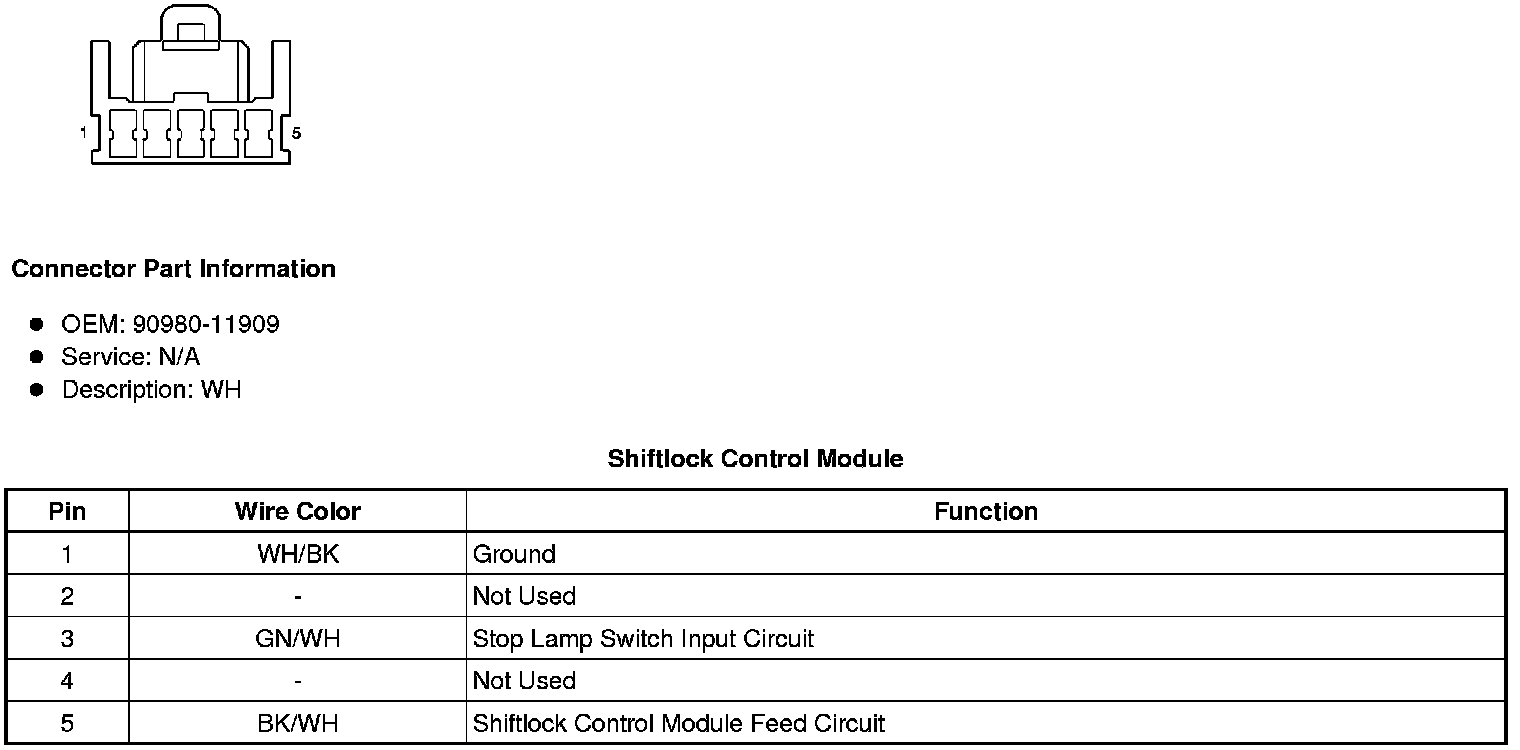

Shiftlock Control Module
