Keyless Entry Module
Vehicle Access Connector End Views

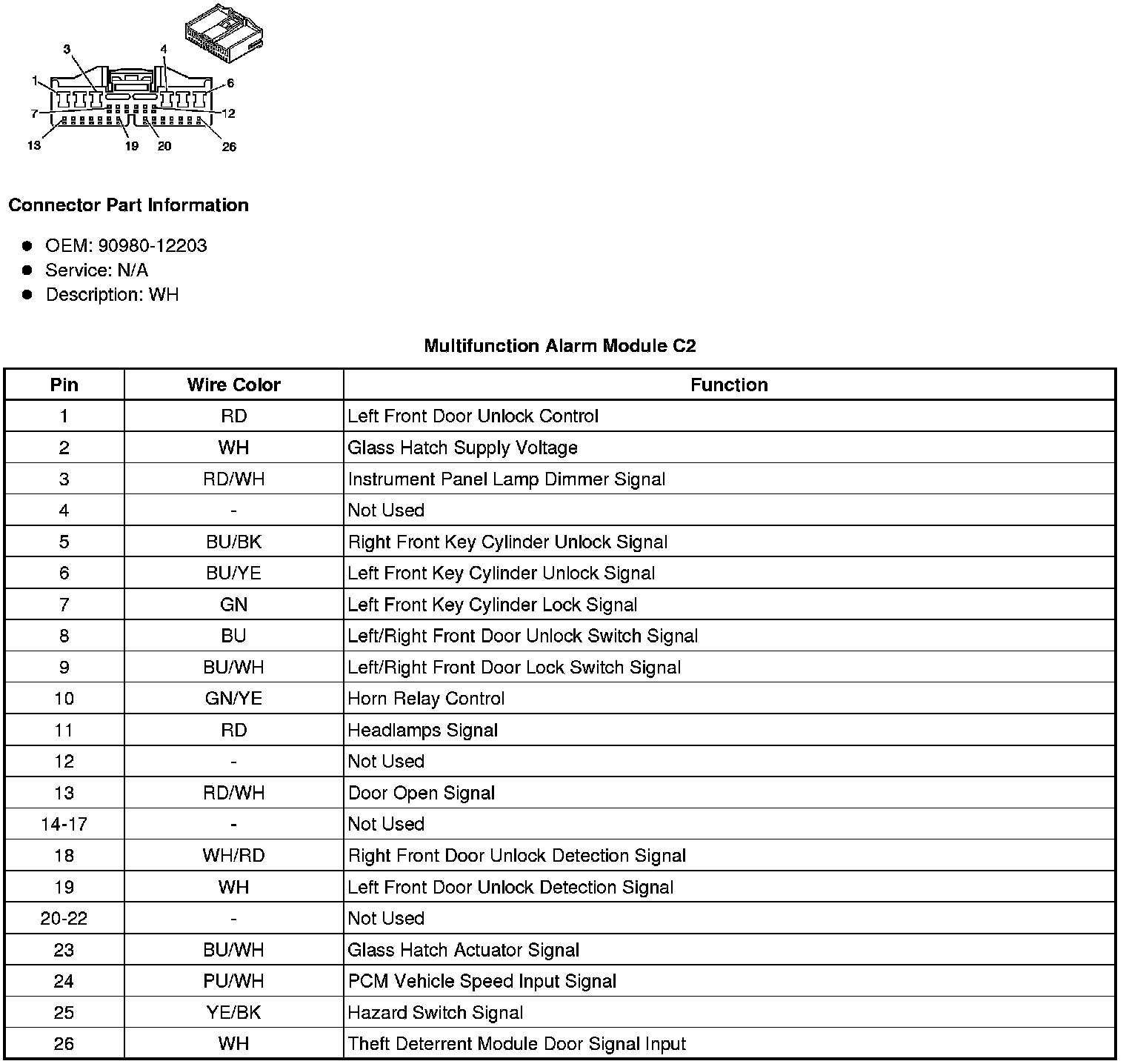

Multifunction Alarm Module C2

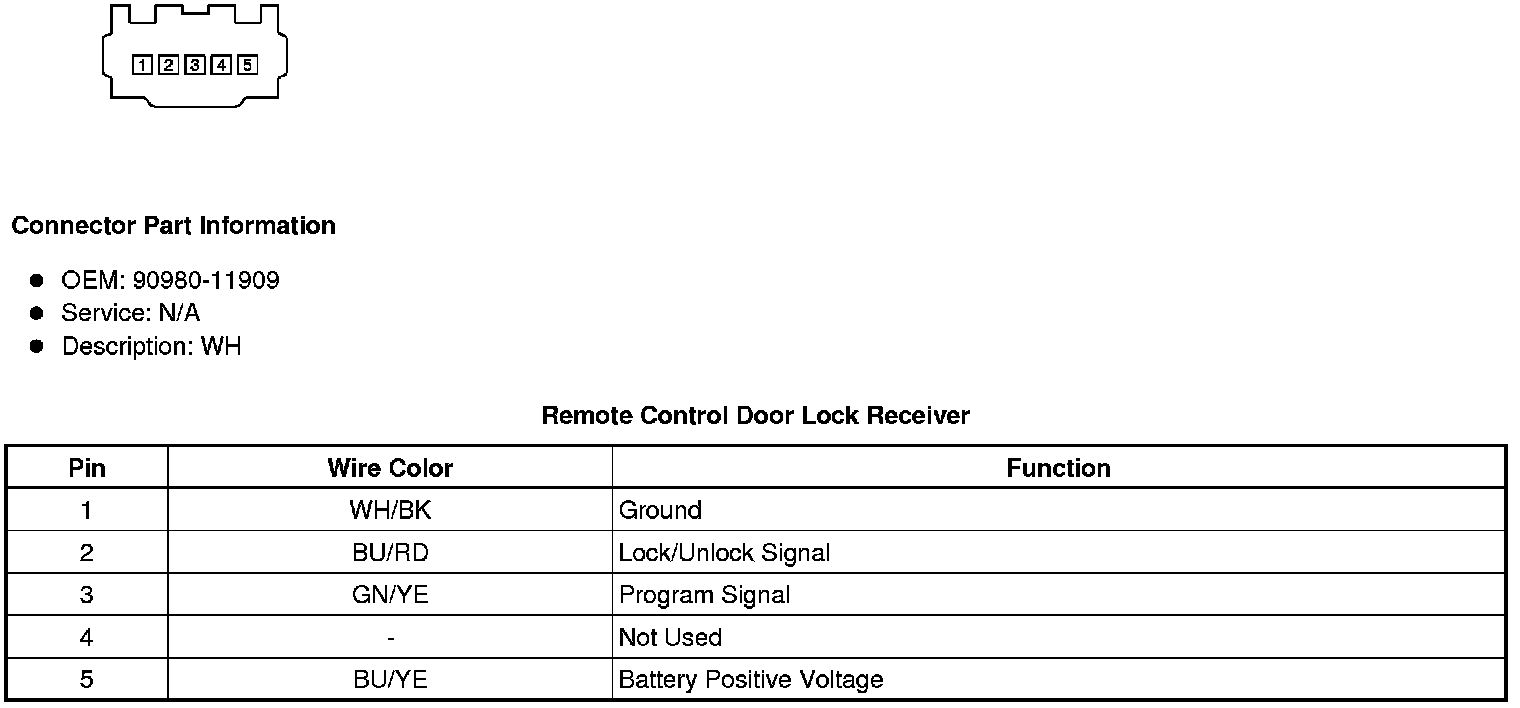

Remote Control Door Lock Receiver
