Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Guides And Communication Interface Module Cover

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The vehicle communication interface module (VCIM) has a specific set of unique numbers that tie the module to each vehicle. These numbers, the 10-digit station identification and the 11-digit electronic serial number, are used by the National Cellular Network and OnStar® to identify the specific vehicle. Because these numbers are tied to the vehicle identification number of the vehicle, you must never exchange these parts with those of another vehicle.

CAUTION: Refer to BATTERY DISCONNECT WARNING .

Disconnect the battery ground cable.
Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the two clips (1).
Disengage two guides (2) and remove the communication interface module cover (3).

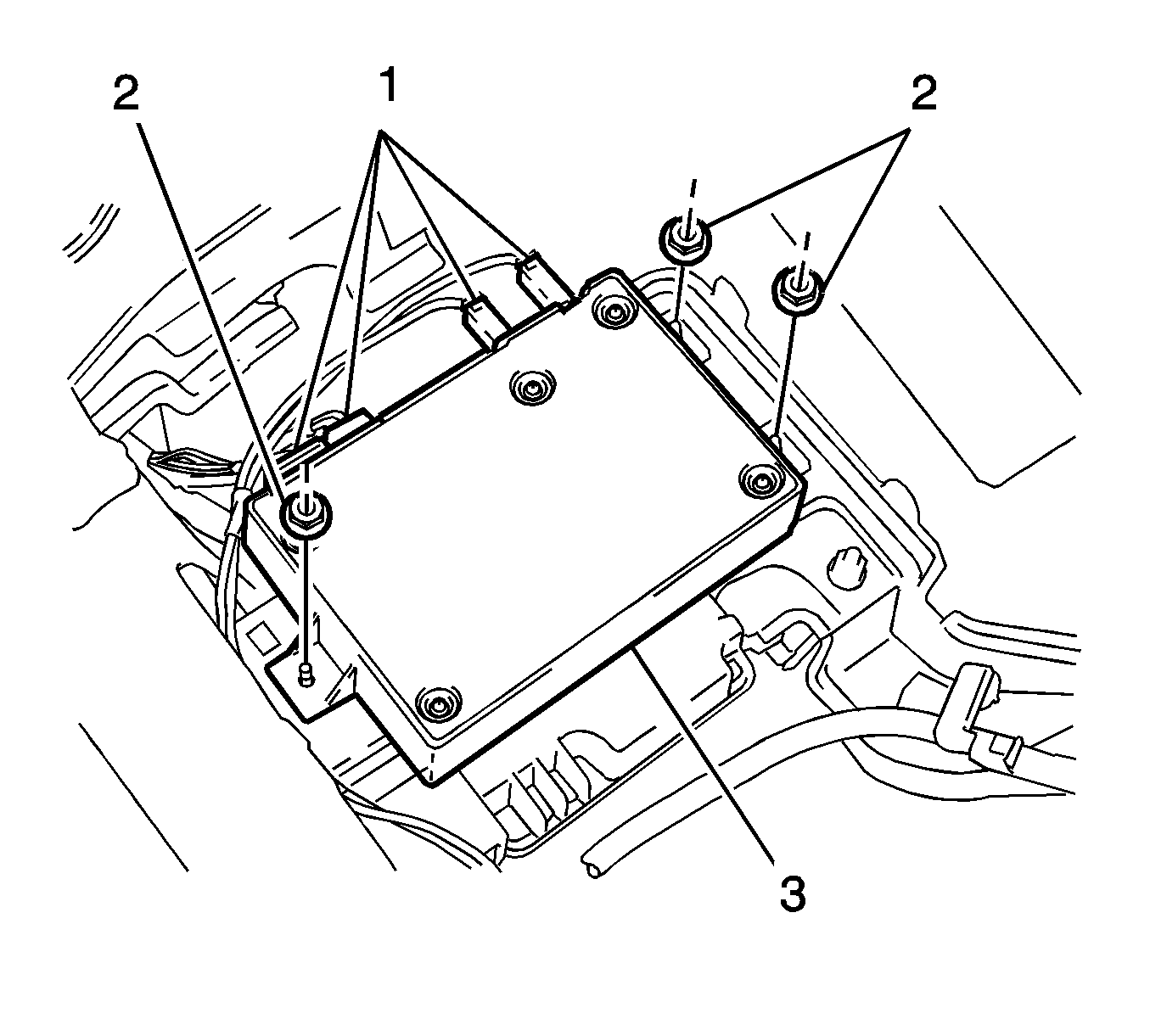

Fig 2: View Of Communication Interface Module & Fasteners

Courtesy of GENERAL MOTORS CORP.

Disconnect vehicle communication interface module electrical connectors (1).
Remove the three nuts (2).
Remove the vehicle communication interface module (3) from the vehicle.
