Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

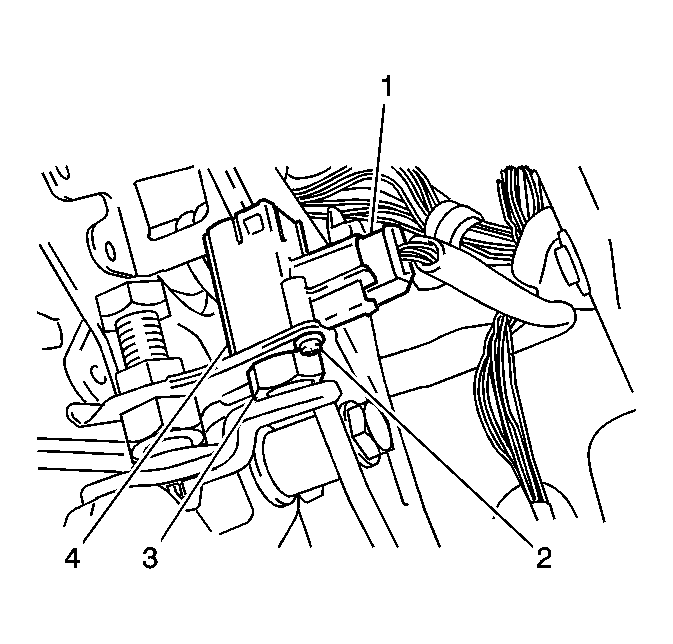

Fig 1: View Of Cruise Control Release Switch, Electrical Connector, Locknut & Pin

Courtesy of GENERAL MOTORS CORP.

Install the cruise control release switch (4) with the locknut (3) to the clutch pedal bracket.

NOTE: Refer to Fastener Caution .

Engage the pin (2)
Tighten: Tighten the locknut to 16 N.m (12 lb ft).
Connect the cruise control release switch electrical connector (1).
