Automatic Transmission Shift Lever Position Indicator (MLQ)

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

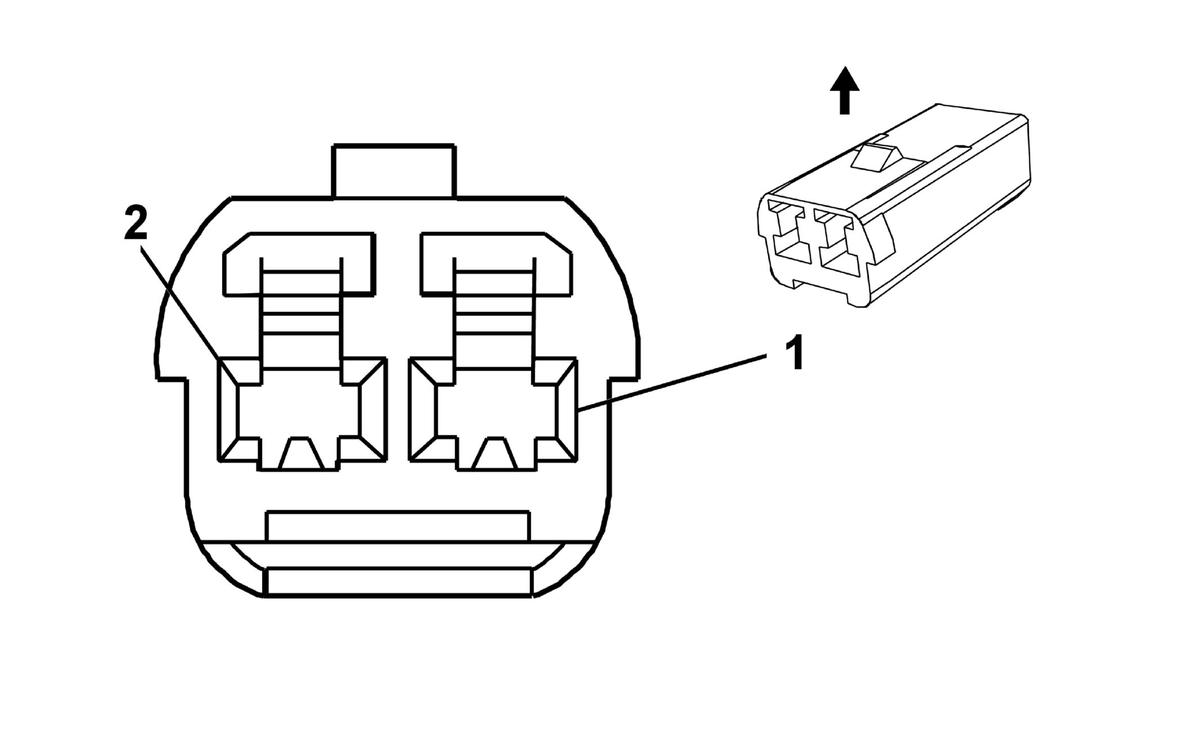

Fig 1: Automatic Transmission Shift Lever Position Indicator (MLQ) Connector End View
GM1413061Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Shift Lever Position Indicator (MLQ)

Pin Wire Circuit Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 D-GN 230 Instrument Panel Lamps Dimming Control
Connector Part Information
  • OEM: MG 610070
  • Service: 88988450
  • Description: 2-Way F, (WH)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 88988450
  • Release Tool: 15315247
  • Diagnostic Test Probe: J-35616-18 (BK)
  • Terminal/Tray: 7116-1180/11
  • Core/Insulation Crimp: C/E/C
