Clutch Start Switch (MLM with NCS) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

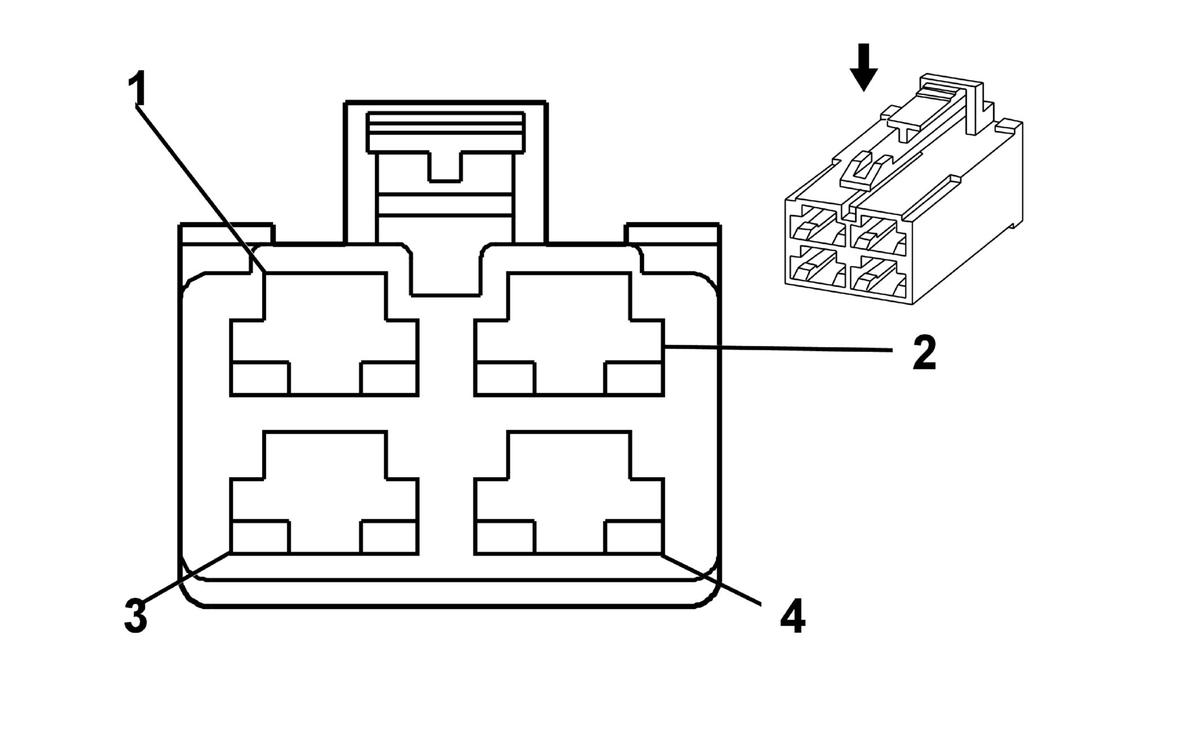

Fig 1: Clutch Start Switch (MLM with NCS) Connector End View

Courtesy of GENERAL MOTORS CORP.

Clutch Start Switch (MLM with NCS)

Pin	Wire	Circuit	Function
1	YE	5	Crank Voltage
2	-	-	Not Used
3	PU	6	Starter Solenoid Crank Voltage
4	-	-	Not Used

Connector Part Information

OEM: MG 630678
Service: 88987863
Description: 4-Way F, (WH)

Terminal Part Information

Terminated Lead: Service by Connector Assembly - 88987863
Release Tool: 12094430
Diagnostic Test Probe: J-35616-42 (RD)
Terminal/Tray: 7116-2876/10
Core/Insulation Crimp: E/G
