Shift Lock Control Schematics

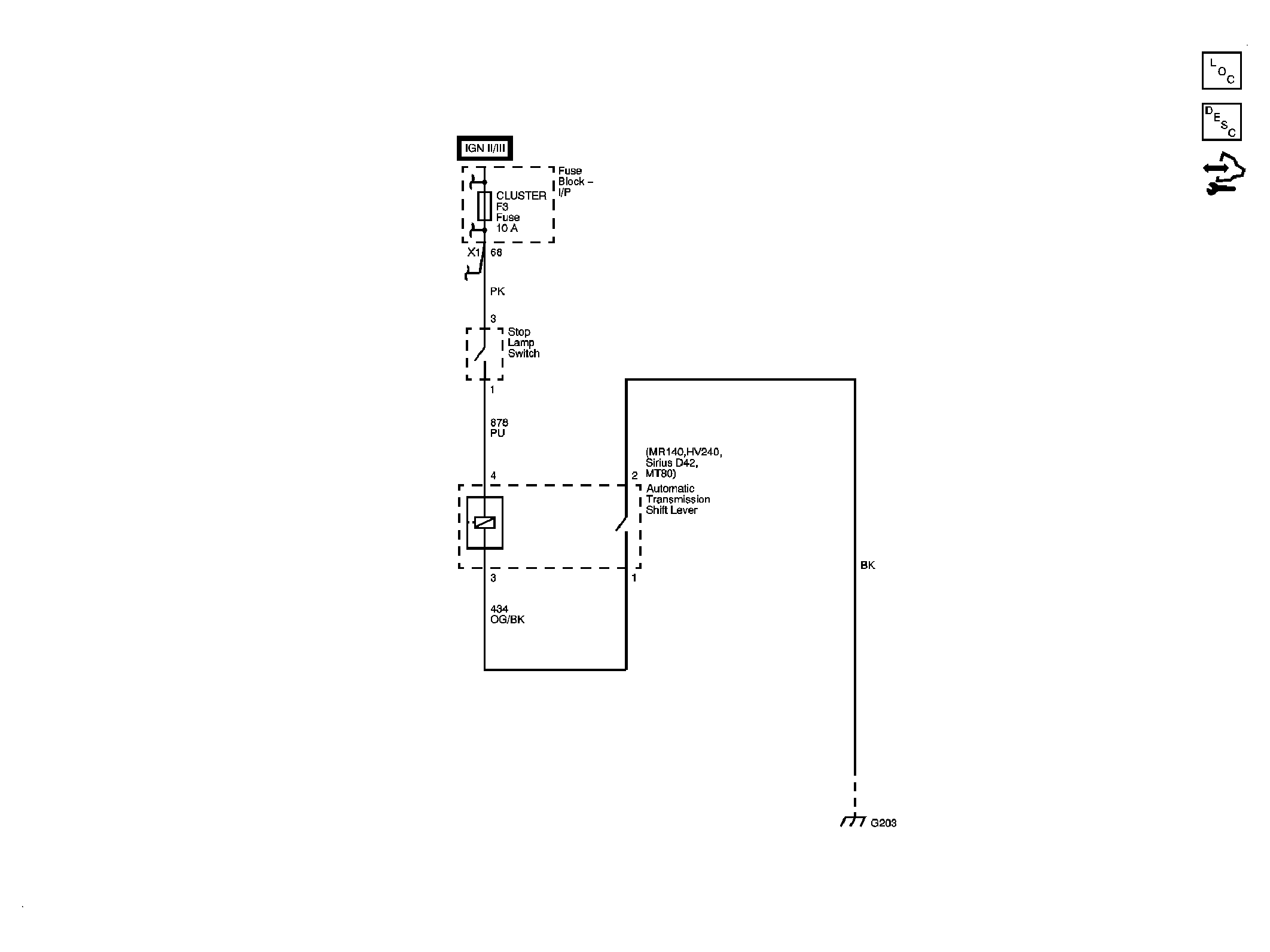

Fig 1: Shift Lock Control Schematic

GM2049303

Courtesy of GENERAL MOTORS CORP.
