Alignment: Service and Repair

Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

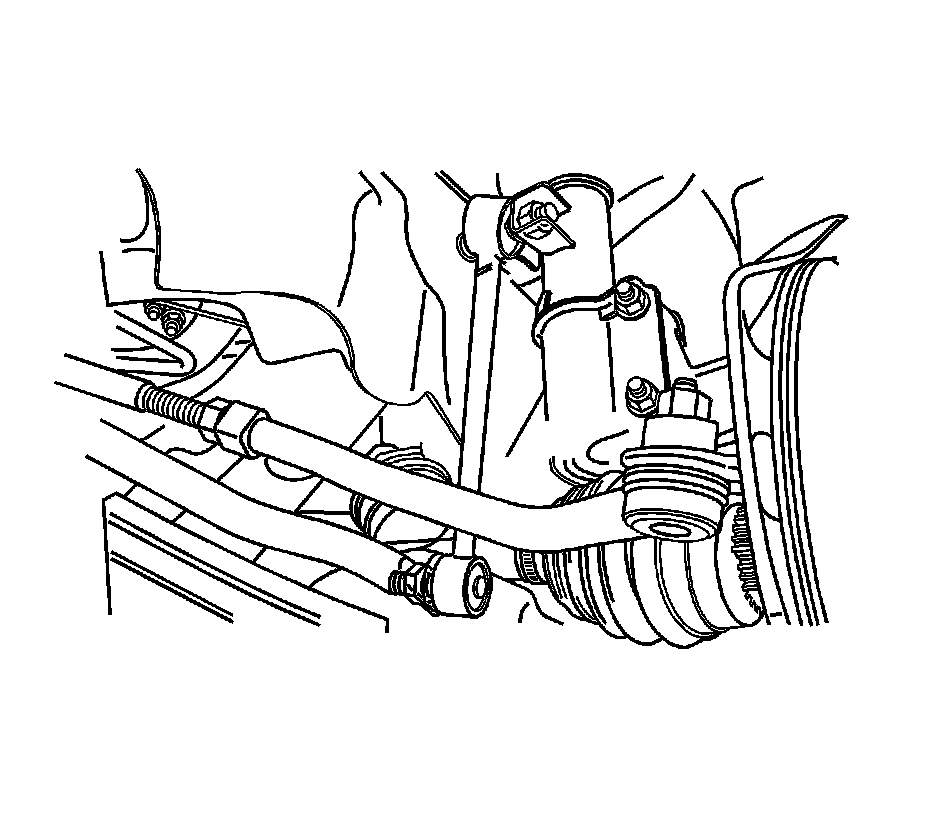

1. Loosen the right and the left rod lock bolts.

Note: In this adjustment, the right and left tie rods must be equal in length.

2. Turn the right and the left tie rod adjusters to align the toe to 0 degrees ±10 minutes.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Tighten the tie rod lock bolts to 64 Nm (47 lb ft).
