Radio/Navigation System Schematics

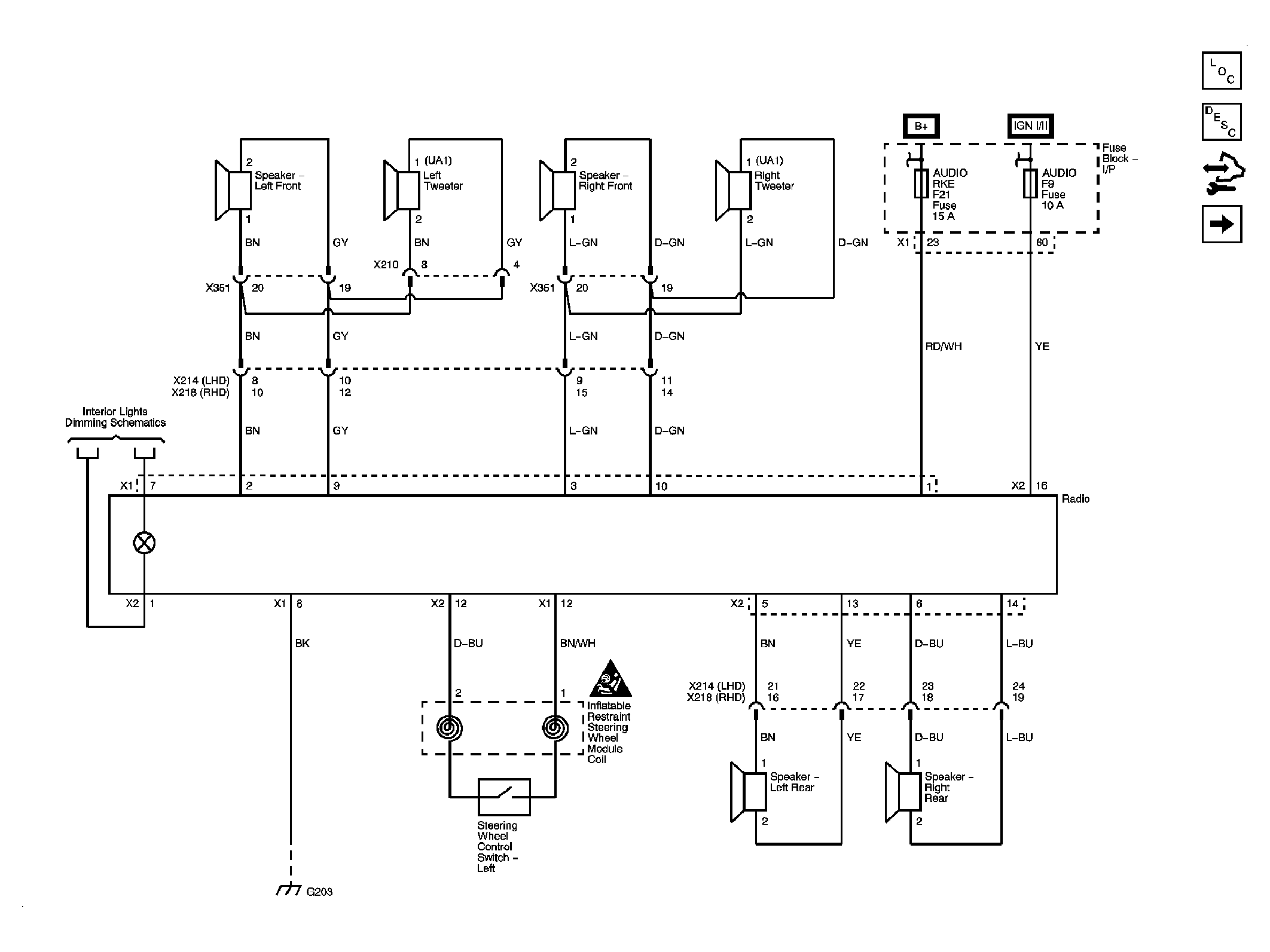

Fig 1: Radio Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
