Input Shaft Speed (ISS) Sensor

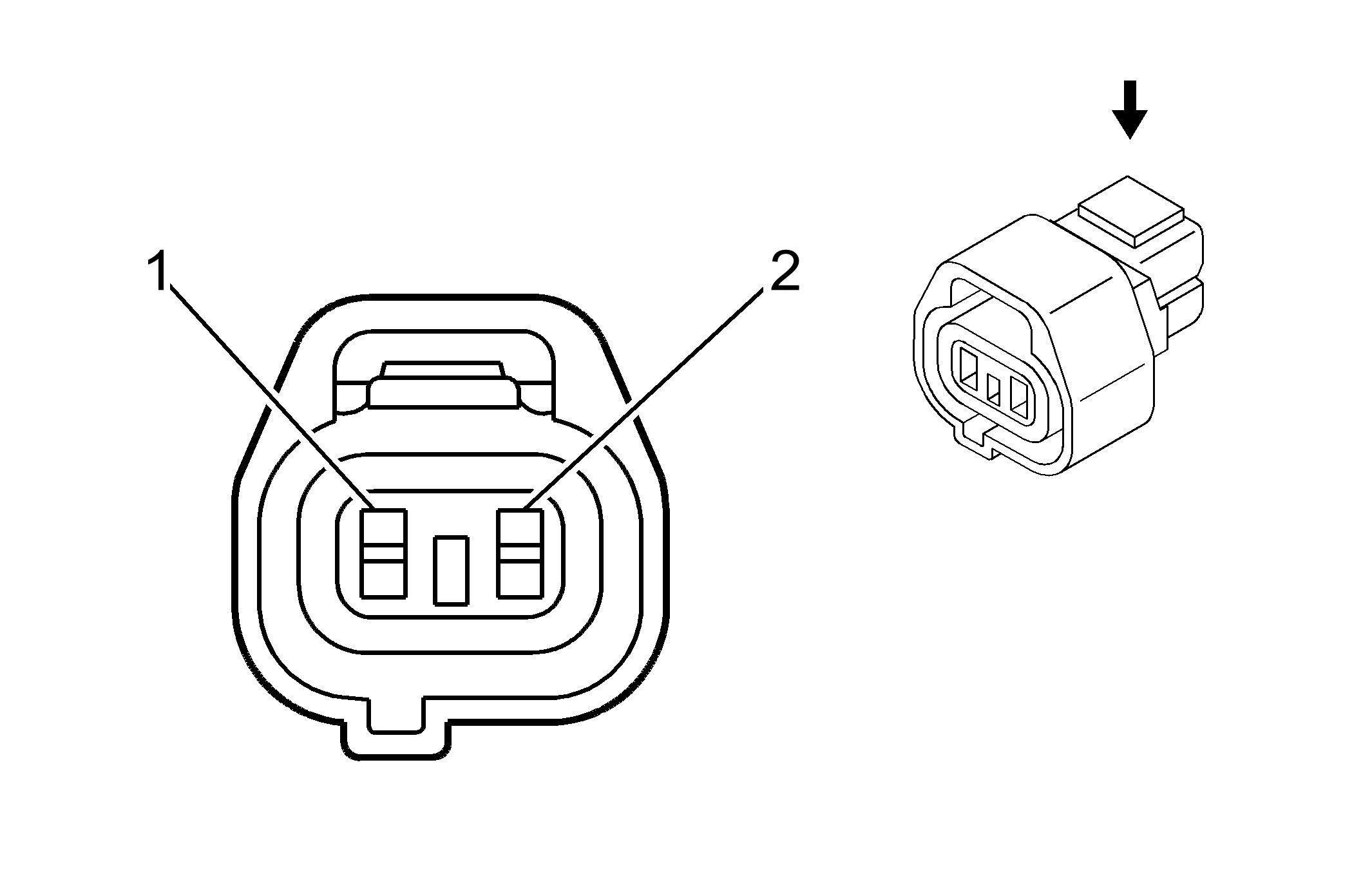

Fig 1: Input Shaft Speed (ISS) Sensor Connector End View
GM1481270Courtesy of GENERAL MOTORS CORP.
Input Shaft Speed (ISS) Sensor

Pin Wire Circuit Function
1 OG - Input Shaft Speed (ISS) Sensor Low Signal
2 WH - Input Shaft Speed (ISS) Sensor High Signal
Connector Part Information
  • OEM: Yazaki 7283-8125-90
  • Service: N/A
  • Description: 2-Way F (BU)
