Intake Sensor

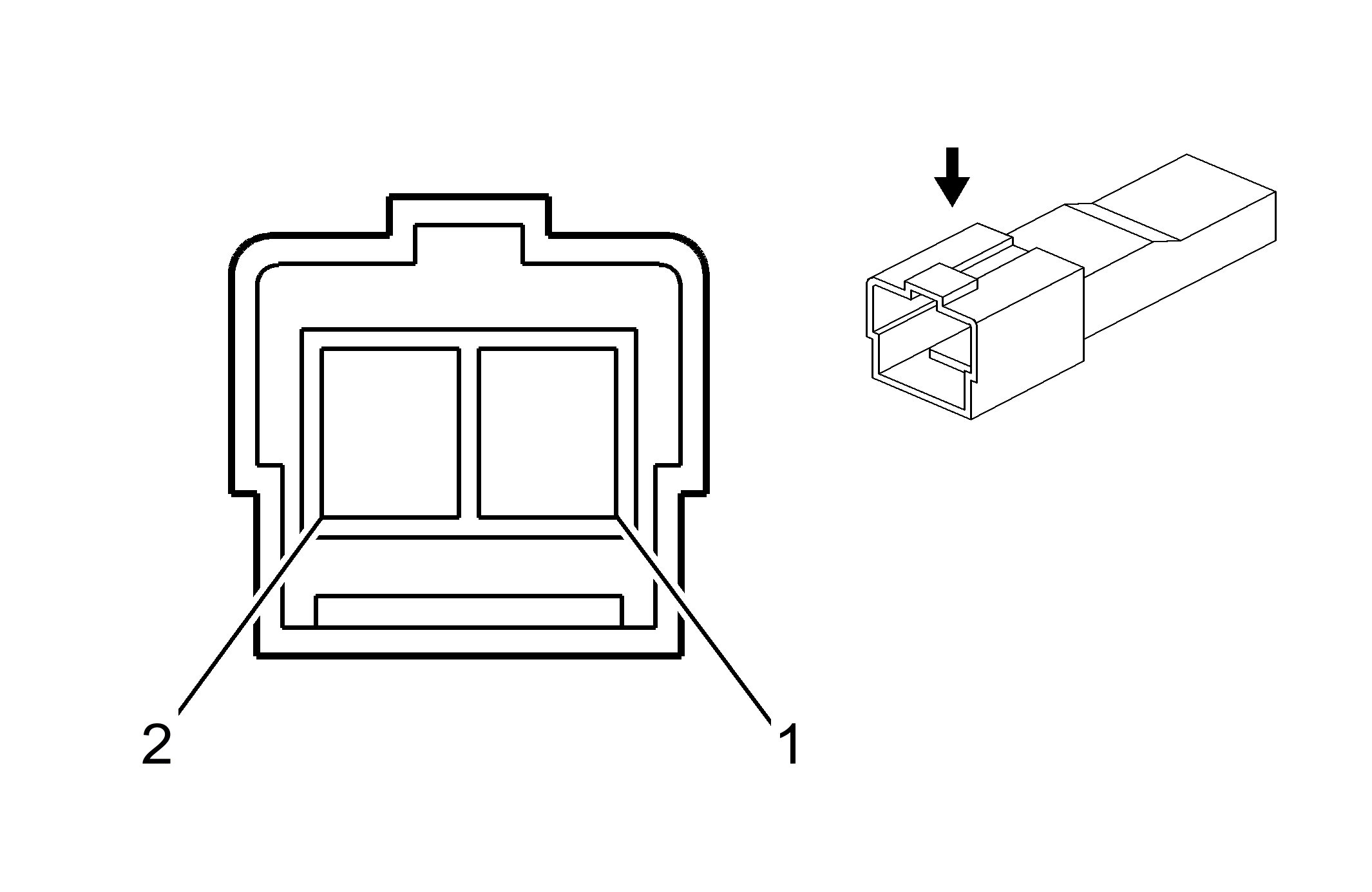

Fig 1: Intake Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Intake Sensor
Pin
Wire
Circuit
Function
1
BK/YE
-
Intake Sensor Signal
2
D-BU/WH
-
Low Reference
Connector Part Information
OEM: MG652630
Service: N/A
Description: 2-Way M
