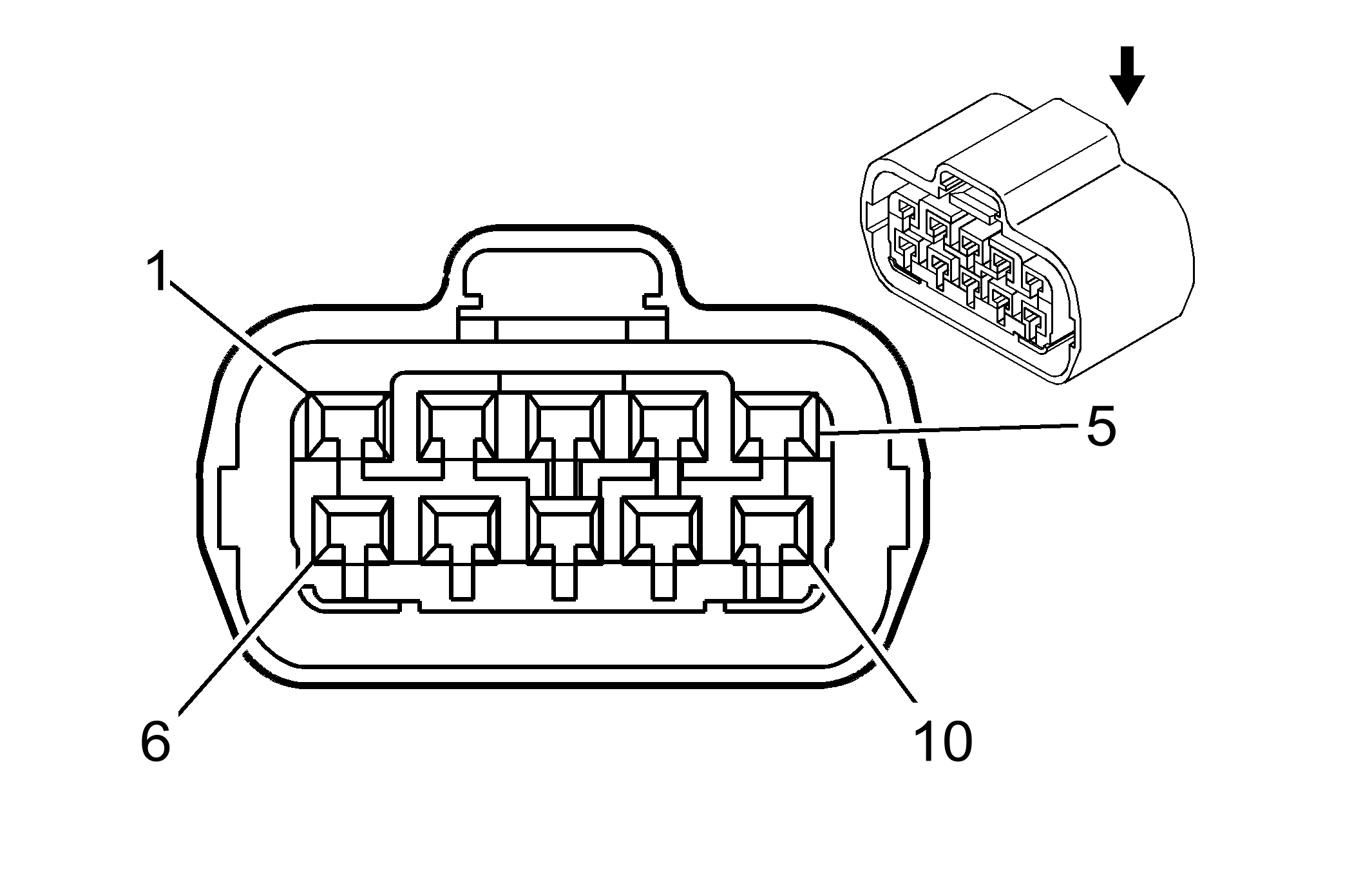

Automatic Transmission Connector
Courtesy of GENERAL MOTORS CORP. Automatic Transmission Connector
| Pin |
Wire |
Circuit |
Function |
| 1 |
PU |
- |
Transmission Fluid Temperature Sensor Signal |
| 2 |
PK |
- |
Timing Valve Control |
| 3 |
RD |
- |
Pressure Control Solenoid Control |
| 4 |
D-BU |
- |
Torque Converter Clutch Solenoid Control |
| 5 |
L-GN |
- |
Shift Solenoid 1 Valve Control |
| 6 |
OG/BK |
- |
Transmission Fluid Temperature Sensor Low Reference |
| 7 |
- |
- |
Not Used |
| 8 |
OG |
- |
Low Reference |
| 9 |
- |
- |
Not Used |
| 10 |
YE/BK |
- |
Shift Solenoid 2 Valve Control |
Connector Part Information
- OEM: 7283-1407-40
- Service: N/A
- Description: 10-Way (GY)
|
