Blower Switch

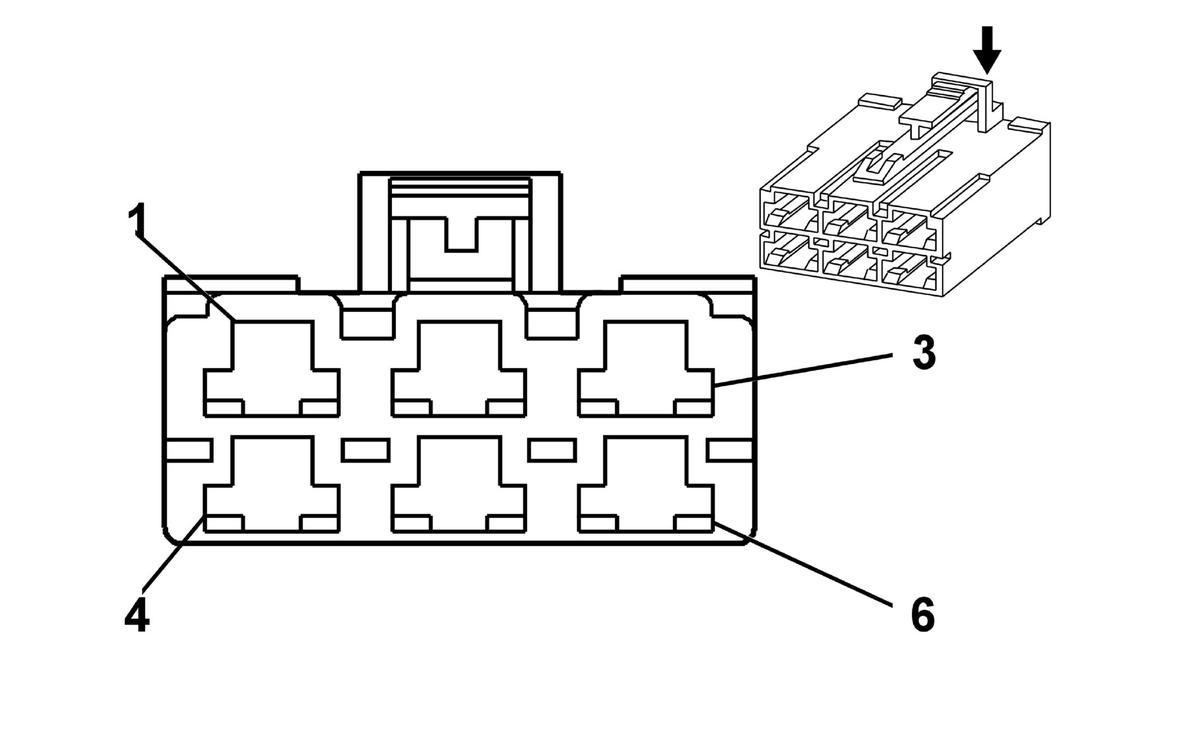

Fig 1: Blower Switch Connector End View
GM1467013Courtesy of GENERAL MOTORS CORP.
Blower Switch

Pin Wire Circuit Function
1 OG - HVAC On Signal
2 OG - Ignition Voltage
3 L-BU - Blower Motor Medium 3 Control
4 YE - Blower Motor Low Control
5 BN - Blower Motor Medium 2 Control
6 OG - Blower Motor High Control
Connector Part Information
  • OEM: MG610049
  • Service: N/A
  • Description: 6-Way F 250 Series (WH)
