Headlamp Switch

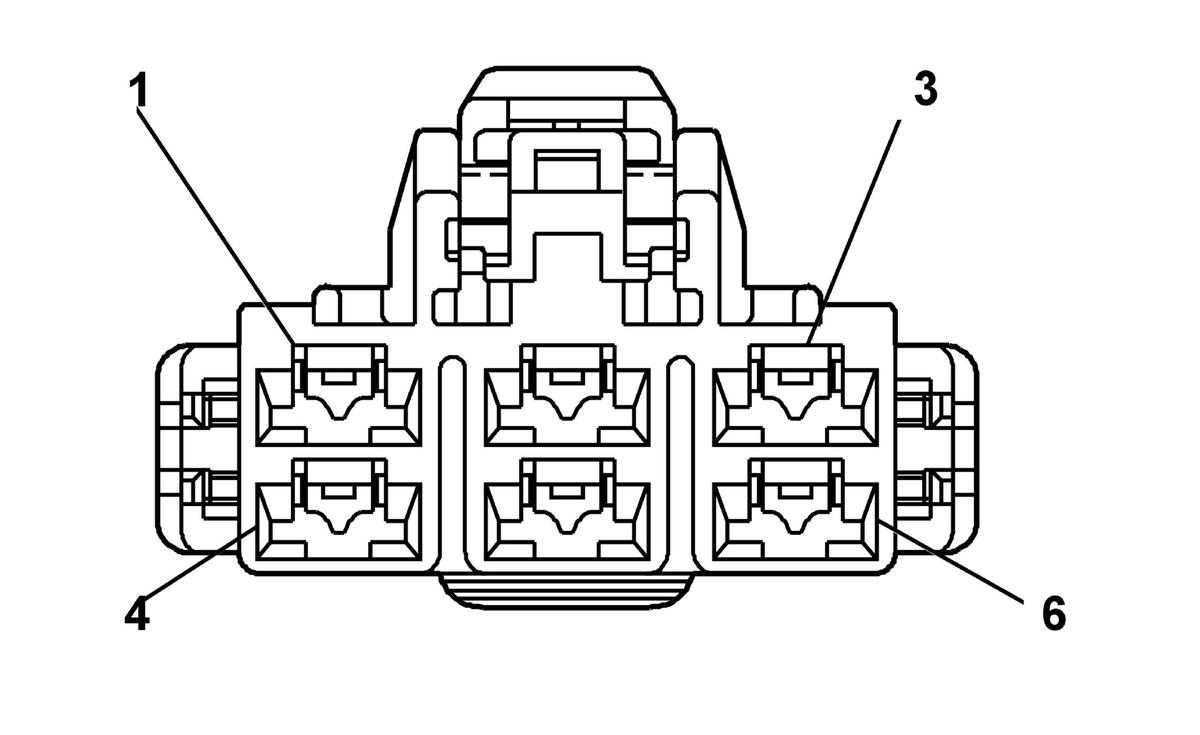

Fig 1: Headlamp Switch Connector End View
GM1891429Courtesy of GENERAL MOTORS CORP.
Headlamp Switch

Pin Wire Circuit Function
1 BN/WH - Front Fog Relay Control
2 BK/WH - Headlamp Control
3 BK/WH - Ground
4 - - Not Used
5 D-GN/WH - Front Fog Lamp Switch Signal
6 L-BU - Park Lamps Control
Connector Part Information
  • OEM: MG650887
  • Service:
  • Description: 6-Way F 250 III Series (NA)
