Master Window Switch (A32)

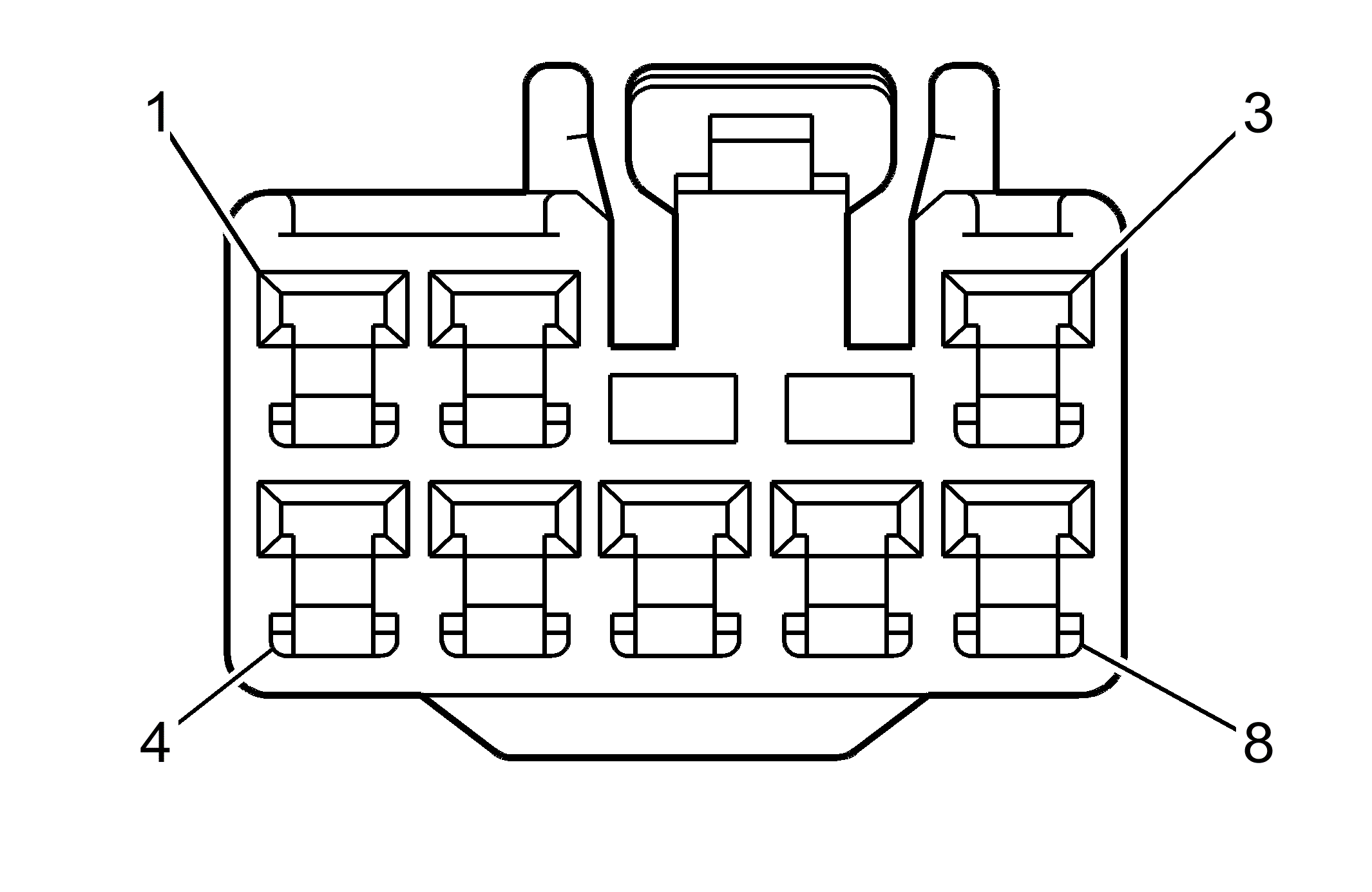

Fig 1: Master Window Switch (A32) Connector End View
GM1902505Courtesy of GENERAL MOTORS CORP.
Master Window Switch (A32)

Pin Wire Circuit Function
1 D-BU 164 Power Window Motor Left Front Down Control (LHD)
L-BU 166 Power Window Motor Right Front Down Control (RHD)
2 - - Not Used
3 BN 167 Power Window Master Switch Right Front Down Signal (LHD)
BN 165 Power Window Motor Left Front Up Control (RHD)
4 - - Not Used
5 L-GN/BK 580 Battery Positive Voltage
6 BN 165 Power Window Motor Left Front Up Control (LHD)
BN 167 Power Window Master Switch Right Front Up Signal (RHD)
7 D-GN 166 Power Window Motor Right Front Up Control (LHD)
D-BU 164 Power Window Motor Left Front Down Control (RHD)
8 BK 650 Ground
Connector Part Information
  • OEM: MG 612231
  • Service: N/A
  • Description: 8-Way F ASC Series (NA)
