Mode Motor

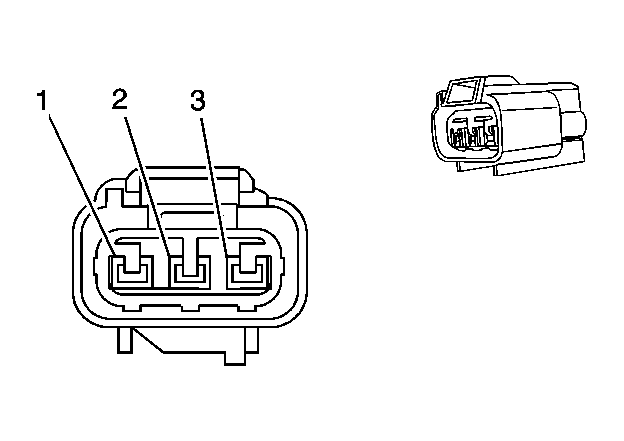

Fig 1: Mode Motor Connector End View
GM1619746Courtesy of GENERAL MOTORS CORP.
Mode Motor

Pin Wire Circuit Function
1 RD/D-BU - Reference Voltage
2 BK - Ground
3 D-BU - Signal
Connector Part Information
  • OEM: MG651444
  • Service: N/A
  • Description: 3-Way M
