Sunload Sensor

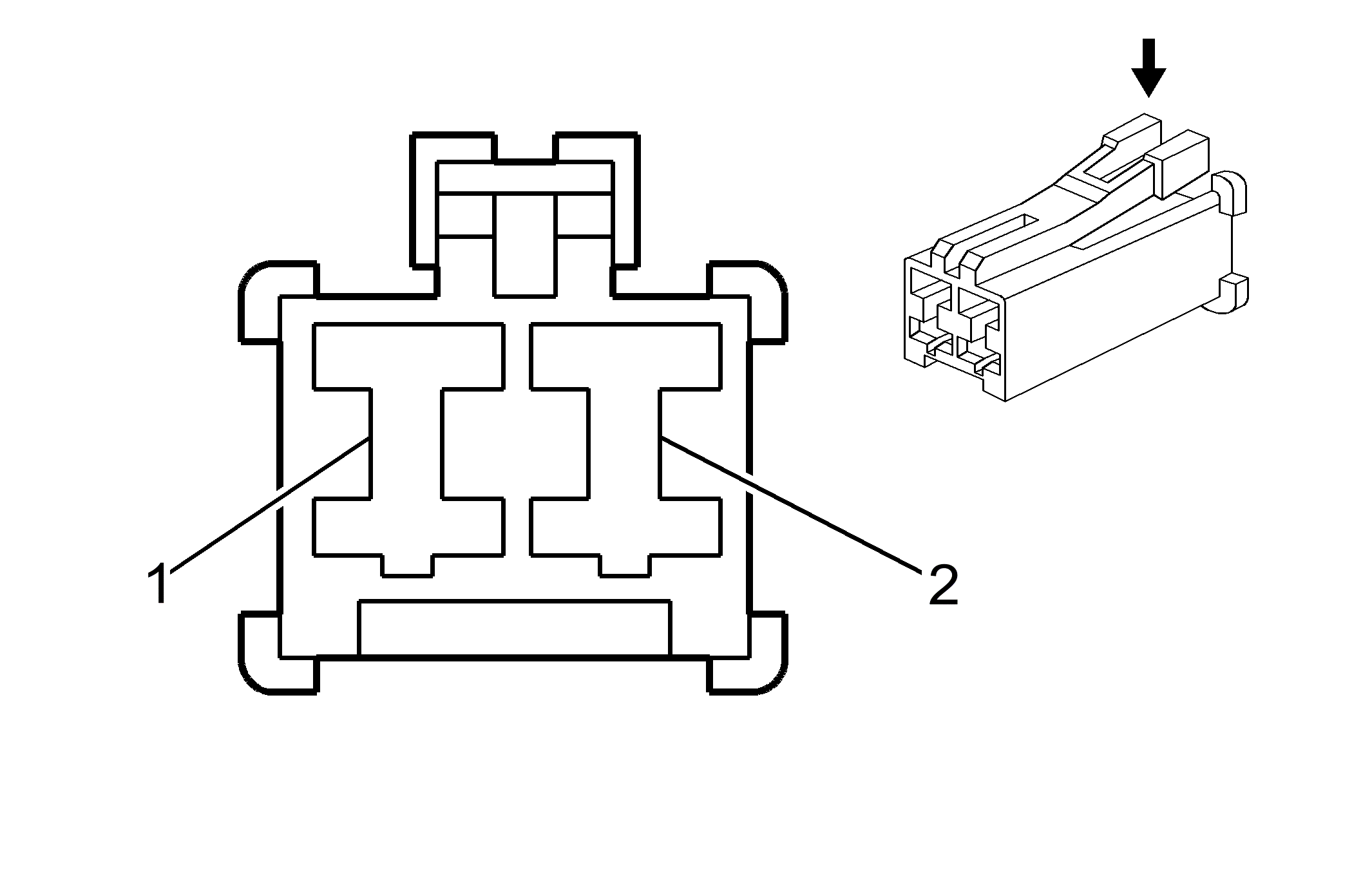

Fig 1: Sunload Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Sunload Sensor
Pin
Wire
Circuit
Function
1
D-BU/WH
-
Low Reference
2
D-GN/RD
-
Sunload Sensor Signal
Connector Part Information
OEM: 174056-2
Service: N/A
Description: 2-Way F
