Vehicle Speed Sensor (VSS)

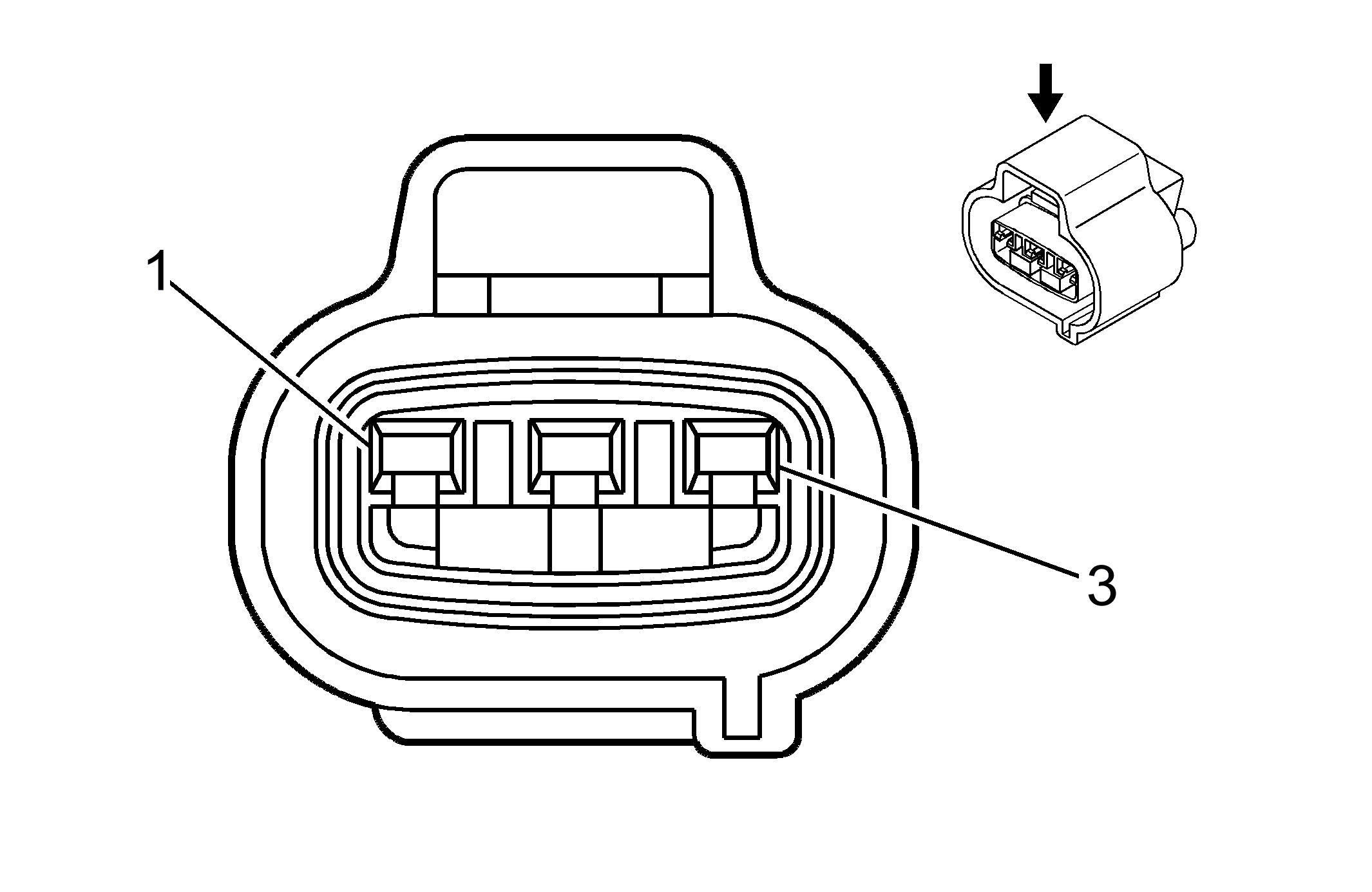

Fig 1: Vehicle Speed Sensor (VSS) Connector End View
GM1481279Courtesy of GENERAL MOTORS CORP.
Vehicle Speed Sensor (VSS)

Pin Wire Circuit Function
1 PK - Ignition 1 Voltage
2 BK/WH - Ground
3 D-GN/WH - Vehicle Speed Signal
Connector Part Information
  • OEM: Yazaki 7283-1232
  • Service: N/A
  • Description: 3-Way F (BK)


Fig 1: Vehicle Speed Sensor (VSS) Connector End View
GM516611Courtesy of GENERAL MOTORS CORP.
Vehicle Speed Sensor (VSS)

Pin Wire Circuit Function
A BK/WH - Ground
B D-GN - Vehicle Speed Signal
C PK - Ignition Voltage
Connector Part Information
  • OEM: PED 12059595
  • Service: N/A
  • Description: 3-Way F Metri-Pack 150 Series, Sealed (BK)
