Windshield Washer Pump (Notchback)

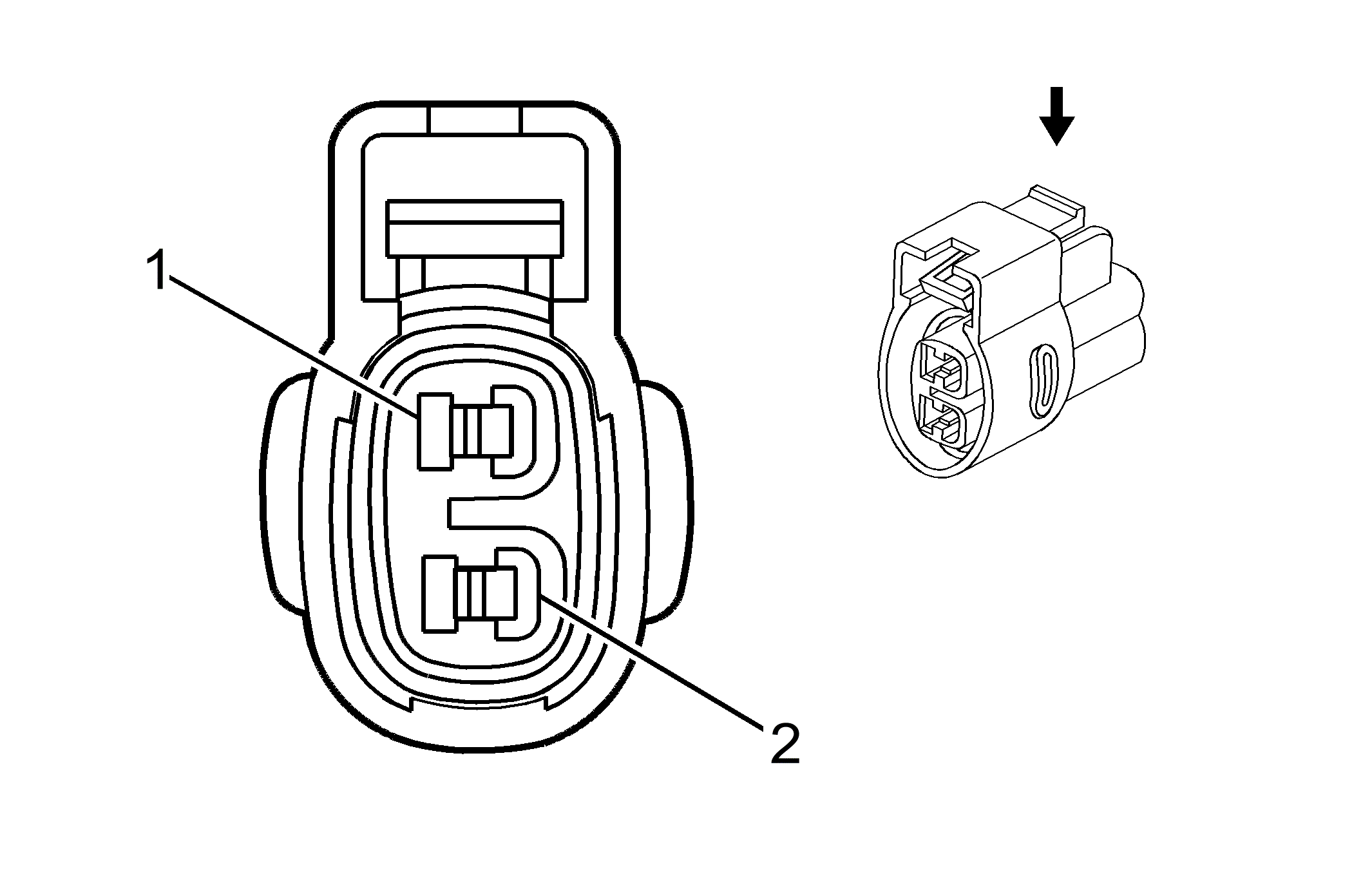

Fig 1: Windshield Washer Pump (Notchback) Connector End View
GM1467079Courtesy of GENERAL MOTORS CORP.
Windshield Washer Pump (Notchback)

Pin Wire Circuit Function
1 BK - Ground
2 PK - Windshield Washer Switch Signal
Connector Part Information
  • OEM: MG640605
  • Service: See Catalog
  • Description: 2-Way F 090 WP Series (WH)
