Windshield Wiper Switch

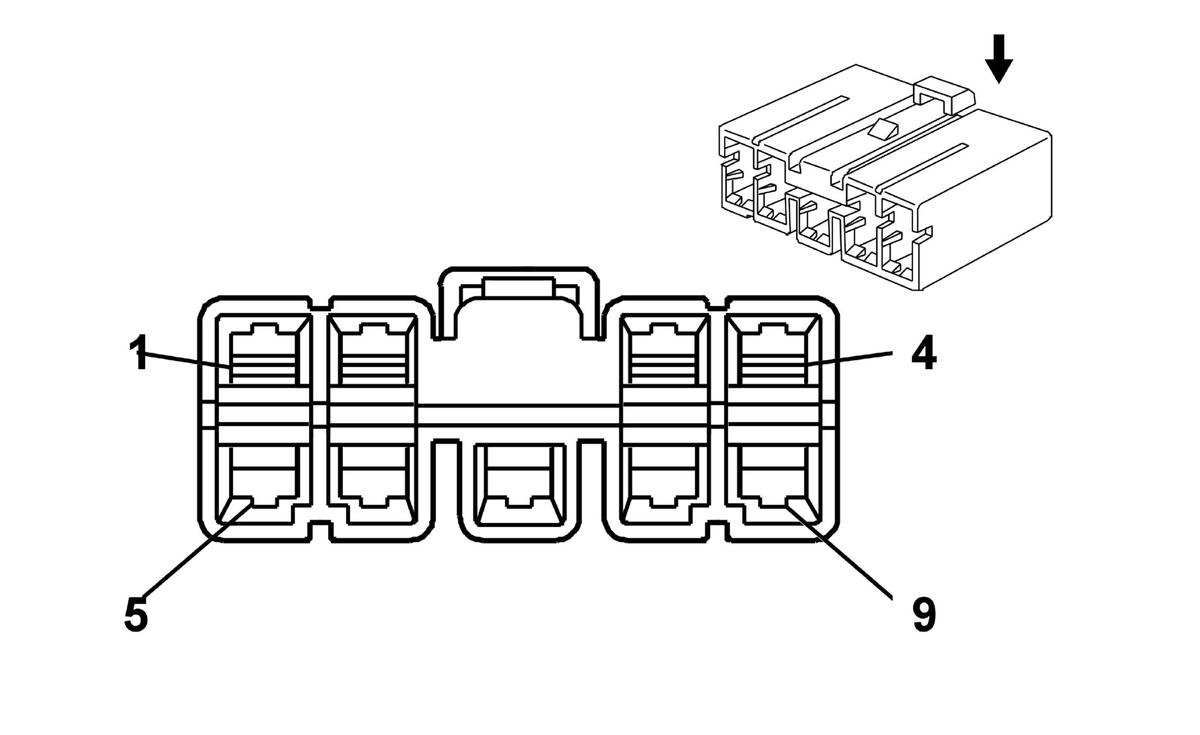

Fig 1: Windshield Wiper Switch Connector End View
GM1468431Courtesy of GENERAL MOTORS CORP.
Windshield Wiper Switch

Pin Wire Circuit Function
1 GY 393 Rear Window Wiper Motor Control (Hatchback)
2 L-GN/BK 392 Rear Window Washer Pump Control (Hatchback)
3 RD 441 Ignition 3 Voltage (Hatchback)
PK - Ignition 3 Voltage (Notchback)
PK - Ignition 3 Voltage (Notchback)
4 D-GN/WH 94 Windshield Washer Switch Signal (Hatchback)
PK - Windshield Washer Switch Signal (Notchback)
5 D-BU 92 Windshield Wiper Motor Low Speed (Hatchback)
PU - Windshield Wiper Motor Low Speed (Notchback)
6 BN 97 Windshield Wiper Switch Mist/Off/Low Signal (Hatchback)
L-BU - Windshield Wiper Switch Mist/Off/Low Signal (Notchback)
7 PU 91 Windshield Wiper Switch Signal 2 (Hatchback)
GY - Windshield Wiper Switch Mist/Off/Low Signal (Notchback)
8 RD 441 Ignition 3 Voltage (Hatchback)
PK - Ignition 3 Voltage Notchback)
9 WH 95 Windshield Wiper Motor High Speed (Hatchback)
D-GN - Windshield Wiper Motor High Speed (Notchback)
Connector Part Information
  • OEM: MG610154
  • Service: See Catalog
  • Description: 9-Way 118 (PA) Series (WH)
