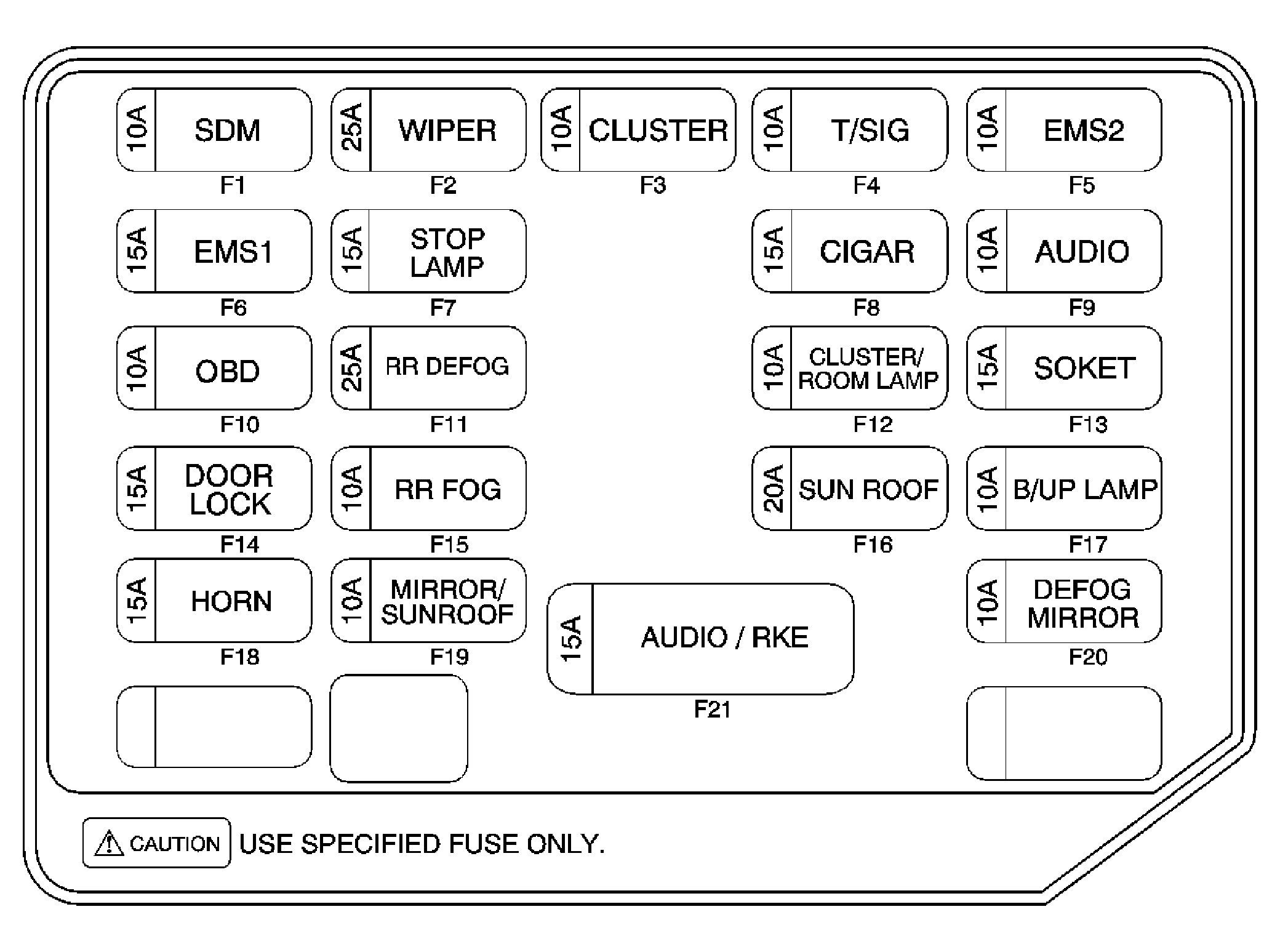

Fuse Block - I/P Label (Hatchback)
Fuse Block - I/P Label Usage (Hatchback)
| No. | Fuse | Rating | Description |
|---|---|---|---|
| F1 | SDM Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| F2 | WIPER Fuse | 25A | Windshield Wiper/Washer Switch, Windshield Wiper Motor |
| F3 | CLUSTER Fuse | 10A | Clock, Instrument Panel Cluster (IPC), Remote Control Door Lock Receiver (RCDLR), Stop Lamp Switch |
| F4 | T/SIG Fuse | 10A | Hazard Switch |
| F5 | EMS2 Fuse | 10A | Fuse Block - Underhood, Heated Oxygen Sensor (HO2S) 2, Tank Shut-off Valve, Transmission Control Module (TCM) (MLQ), Vehicle Speed Sensor (VSS) (MFM/MLM) |
| F6 | EMS1 Fuse | 15A | Fuse Block - Underhood, Immobilizer |
| F7 | STOP LAMP Fuse | 15A | Stop Lamp Switch |
| F8 | CIGAR Fuse | 15A | Cigar Lighter |
| F9 | AUDIO Fuse | 10A | Clock, I/P Compartment Lamp Switch, Radio |
| F10 | OBD Fuse | 10A | Data Link Connector (DLC), Immobilizer |
| F11 | RR DEFOG Fuse | 25A | REAR DEFOG Relay |
| F12 | CLUSTER/ROOM LAMP Fuse | 10A | Dome Lamp, I/P Compartment Lamp Switch, Instrument Panel Cluster (IPC), Rear Compartment Lamp |
| F13 | SOKET Fuse | 15A | Auxiliary Power Outlet |
| F14 | DOOR LOCK Fuse | 15A | DOOR LOCK Relay, DOOR UNLOCK Relay |
| F15 | RR FOG Fuse | 10A | Fuse Block - I/P Controller, REAR FOG Relay |
| F16 | SUN ROOF Fuse | 20A | Sunroof Control Module (CF5) |
| F17 | B/UP LAMP Fuse | 10A | Backup Lamp Switch, Park/Neutral Position (PNP) Switch |
| F18 | HORN Fuse | 15A | HORN Relay |
| F19 | MIRROR/SUNROOF Fuse | 10A | Dome Lamp, HVAC Control Module, Outside Rearview Mirror Switch |
| F20 | DEFOG MIRROR Fuse | 10A | HVAC Control Module, Outside Rearview Mirror - Driver, Outside Rearview Mirror - Passenger |
| F21 | AUDIO/RKE Fuse | 15A | Clock, Fuse Block - I/P, HVAC Control Module, Ignition Key Alarm Switch, Key Illumination, Outside Rearview Mirror - Driver, Outside Rearview Mirror - Passenger, Radio, Remote Control Door Lock Receiver (RCDLR) |
