Installation Procedure

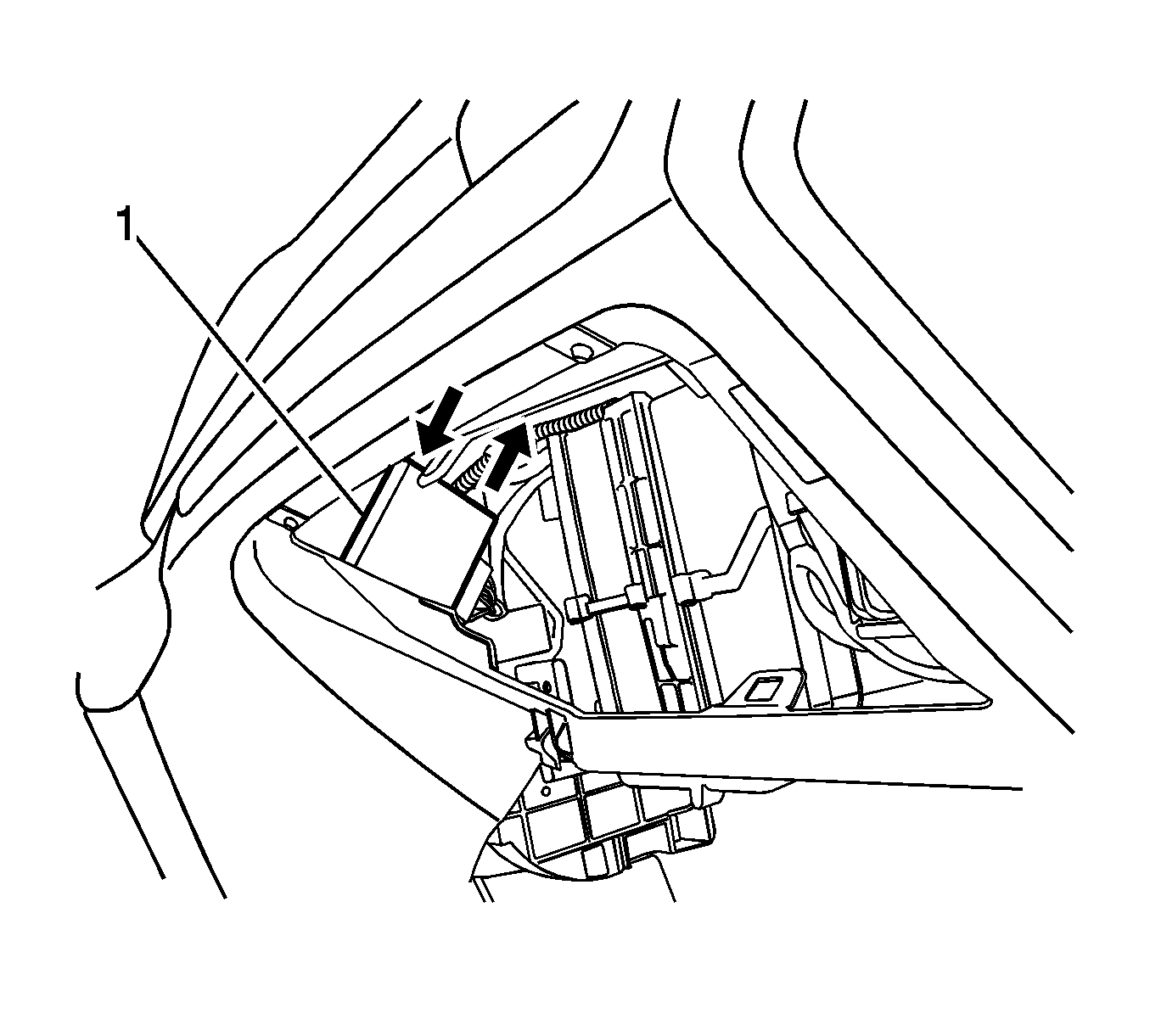

    Fig 1: Control Module/Receiver
    GM2111785Courtesy of GENERAL MOTORS CORP.
  1. Install the control module/receiver (1) on its mounting bracket.
  2. Connect the control module/receiver electrical connector.

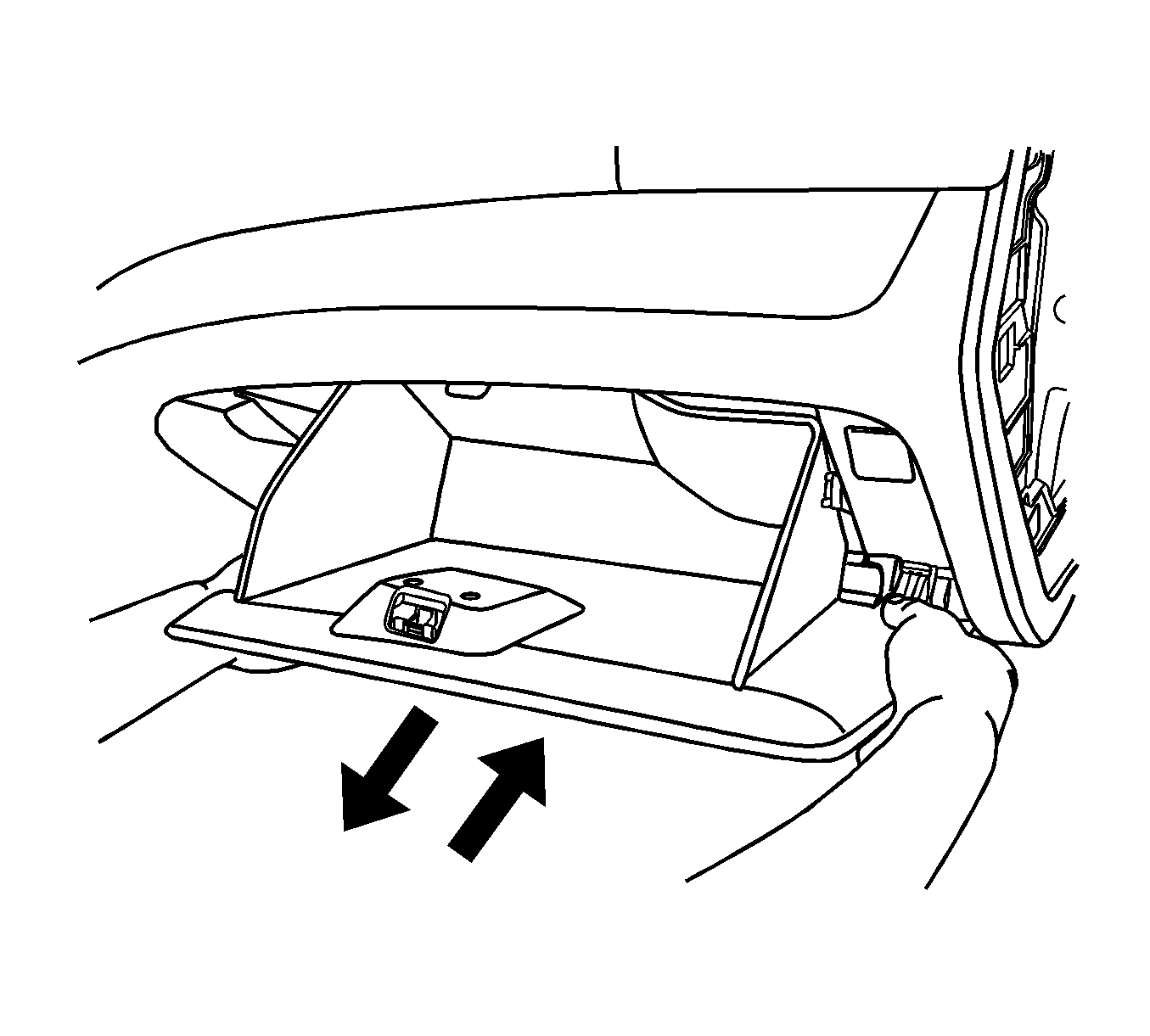

    3. Fig 2: Instrument Panel Storage Compartment
    GM2111718Courtesy of GENERAL MOTORS CORP.
  3. Install the instrument panel storage compartment. Refer to Instrument Panel Storage Compartment Replacement .
  4. Connect the negative battery cable.
  5. Complete remote keyless transmitter programming. Refer to Transmitter Programming
