Installation Procedure

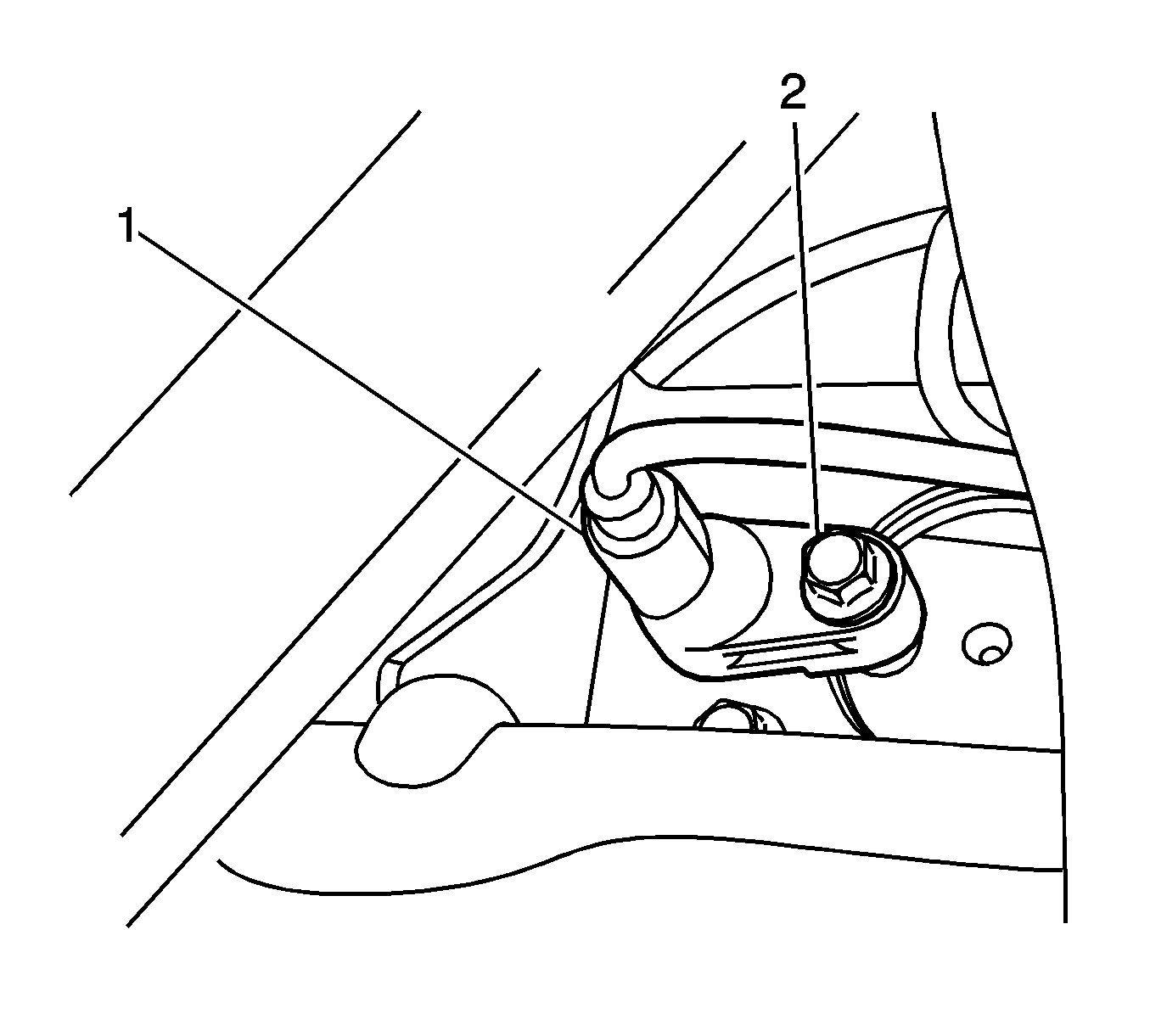

Fig 1: Rear Wheel Speed Sensor Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER CAUTION .

Install the rear wheel speed sensor (1) to the backing plate. Secure it with the bolt (2).
Tighten: Tighten the rear wheel speed sensor bolt to 8 N.m (71 lb in).

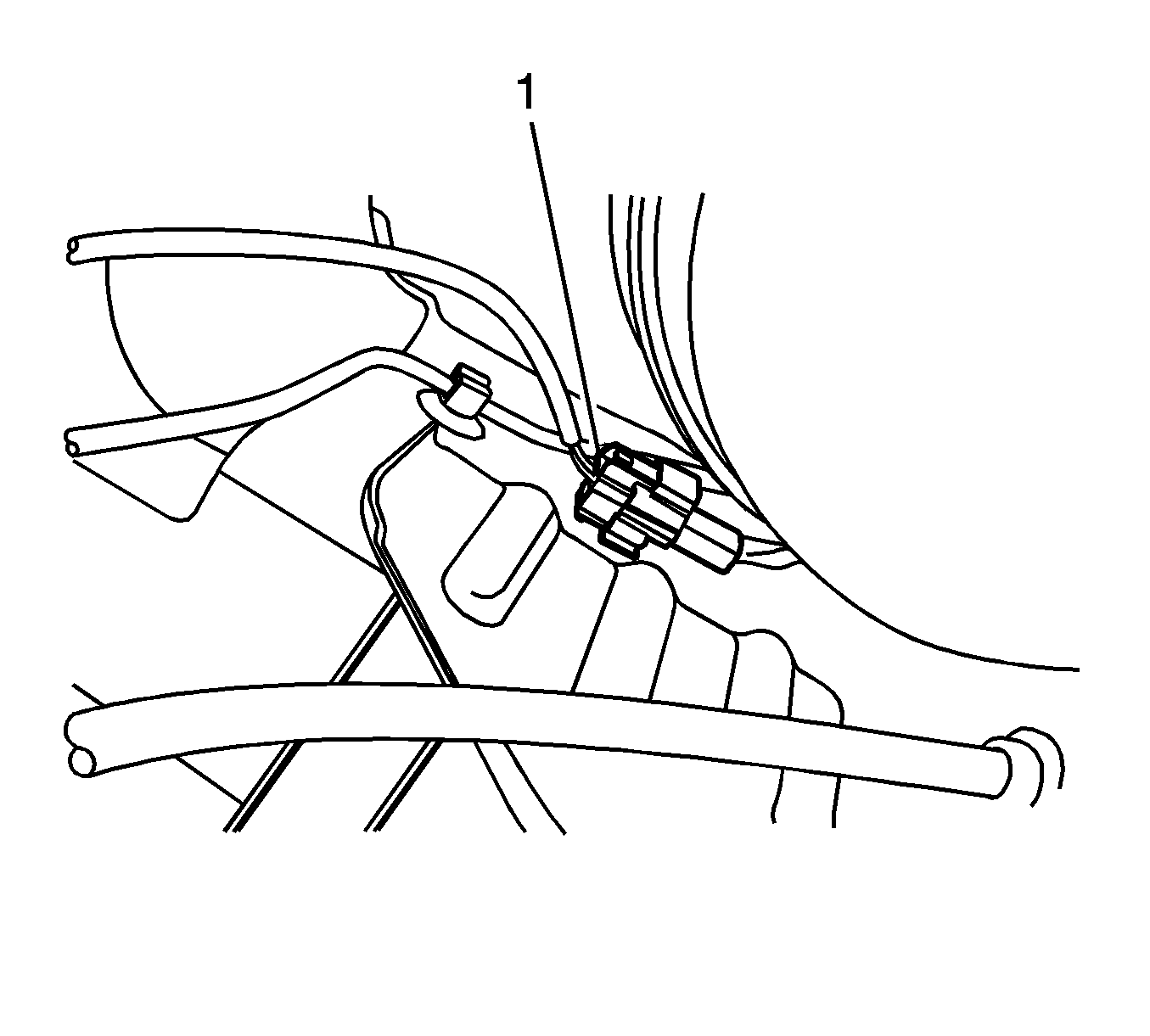

Fig 2: Rear Wheel Speed Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the rear wheel speed sensor electrical connector (1).
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
