Powertrain Component Views
Powertrain Component Views

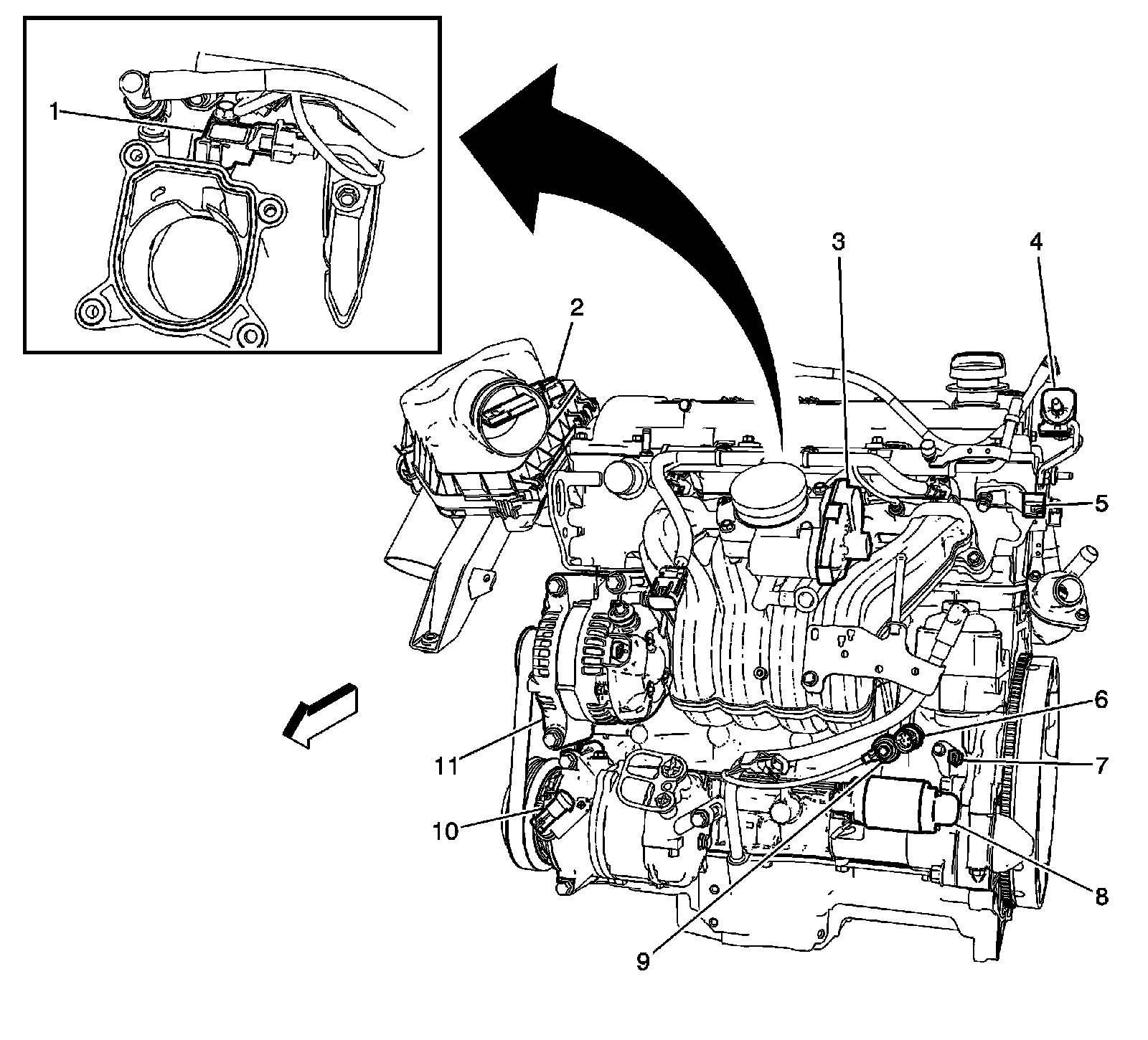

Engine - Front View (LE5)
1 - Manifold Absolute Pressure (MAP) Sensor (L61/LE5)
2 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (L61/LE5)
3 - Throttle Actuator Control (TAC) Module (L61/LE5)
4 - Evaporative Emission (EVAP) Canister Purge Solenoid
5 - Camshaft Position (CMP) Sensor (L61)
6 - Engine Oil Pressure (EOP) Switch
7 - Crankshaft Position (CKP) Sensor
8 - Starter Solenoid
9 - Knock Sensor (KS) (L61/LE5)
10 - A/C Compressor Clutch (C67)
11 - Generator

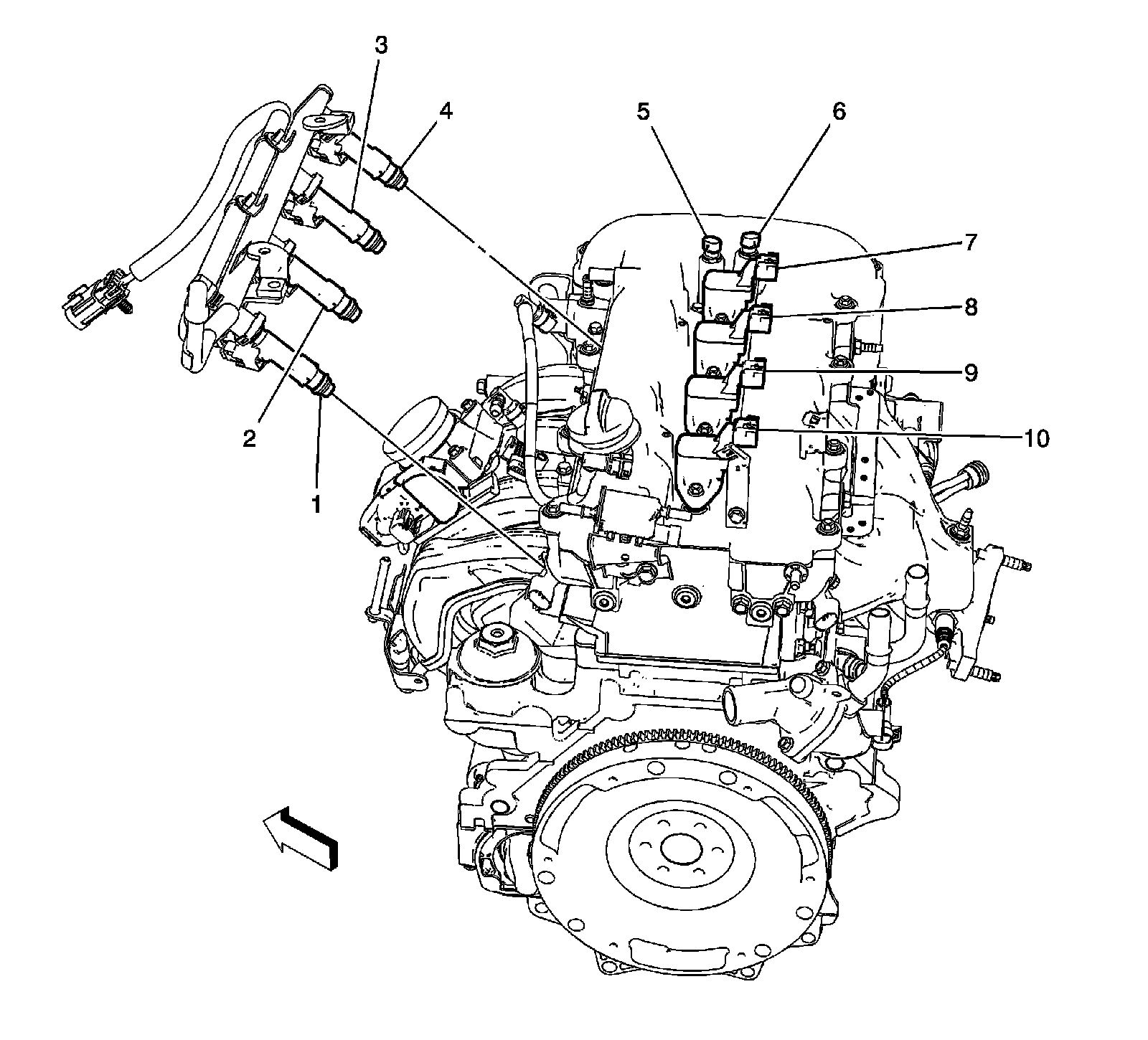

Engine - Top View (LE5)
1 - Fuel Injector 4 (L61/LE5)
2 - Fuel Injector 3 (L61/LE5)
3 - Fuel Injector 2 (L61/LE5)
4 - Fuel Injector 1 (L61/LE5)
5 - Camshaft Position (CMP) Actuator Solenoid - Intake (LE5/LNF)
6 - Camshaft Position (CMP) Actuator Solenoid - Exhaust (LE5/LNF)
7 - Ignition Coil/Module 1
8 - Ignition Coil/Module 2
9 - Ignition Coil/Module 3
10 - Ignition Coil/Module 4

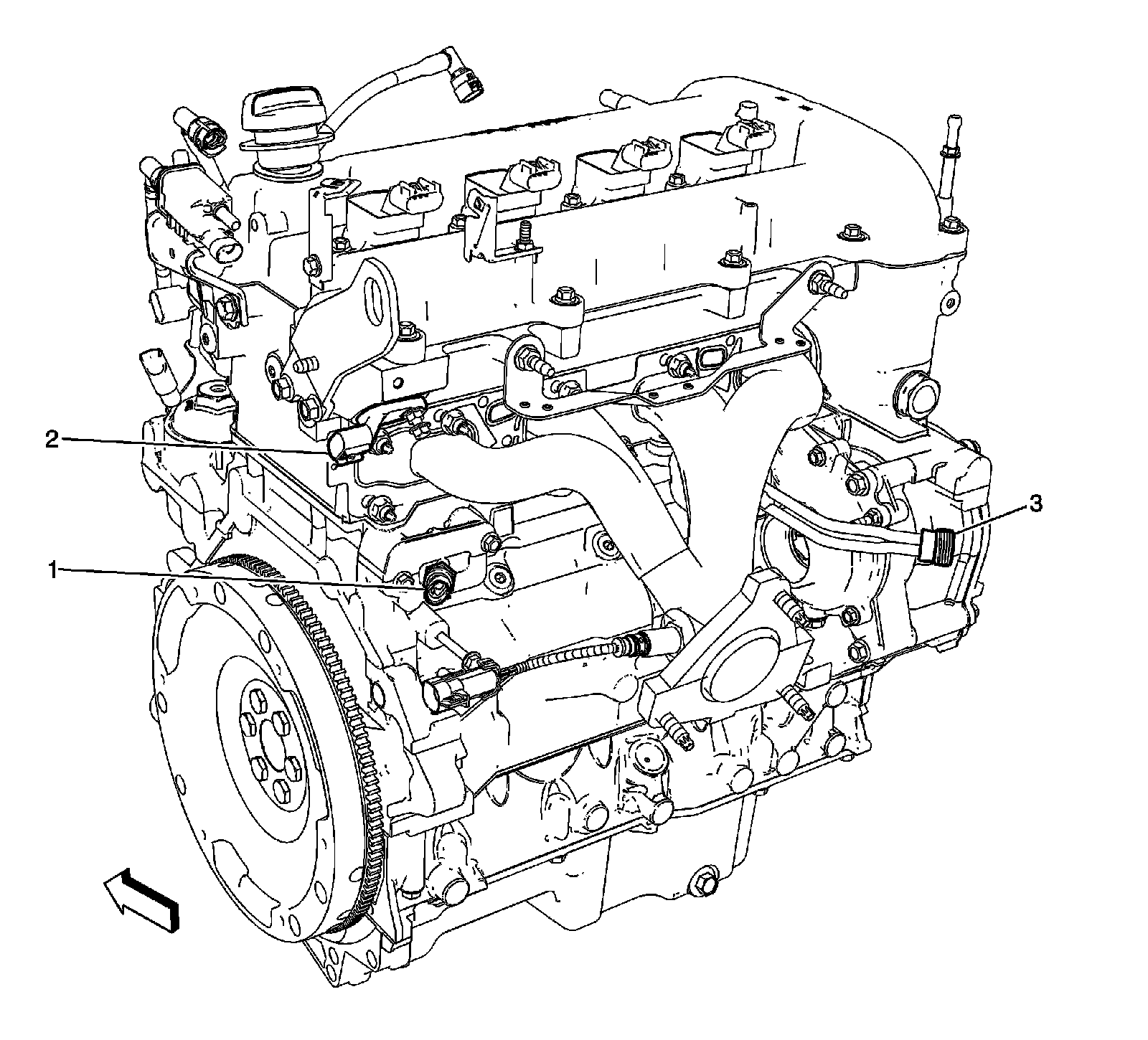

Engine - Rear View (LE5)
1 - Engine Coolant Temperature (ECT) Sensor (L61/LE5)
2 - Camshaft Position (CMP) Sensor - Exhaust (LE5/LNF)
3 - Block Heater Connector

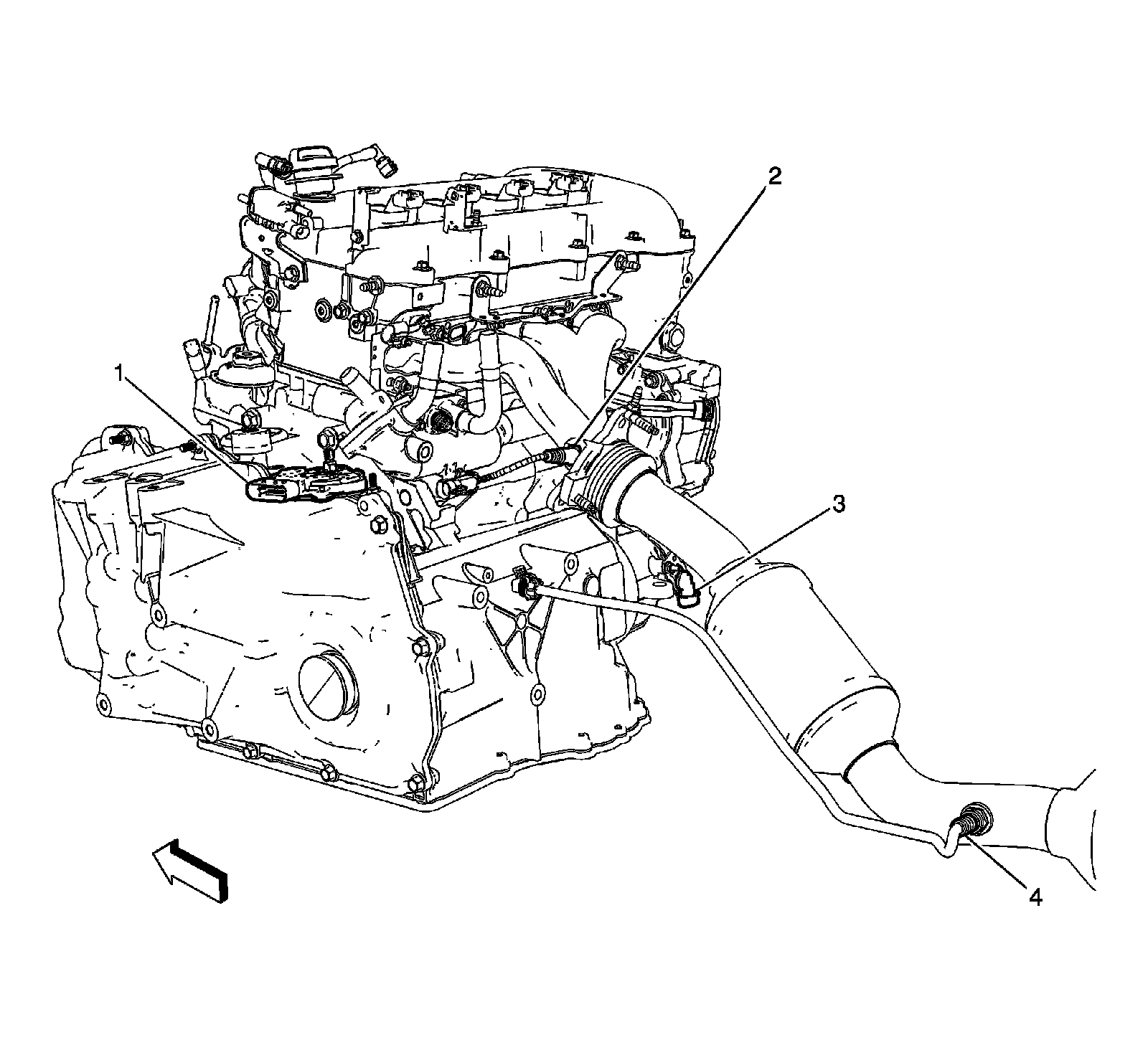

Engine (LE5) and Automatic Transmission (MN5)
1 - Park/Neutral Position (PNP) Switch (MN5/MXO)
2 - Heated Oxygen Sensor (HO2S) 1
3 - Vehicle Speed Sensor (VSS)
4 - Heated Oxygen Sensor (HO2S) 2

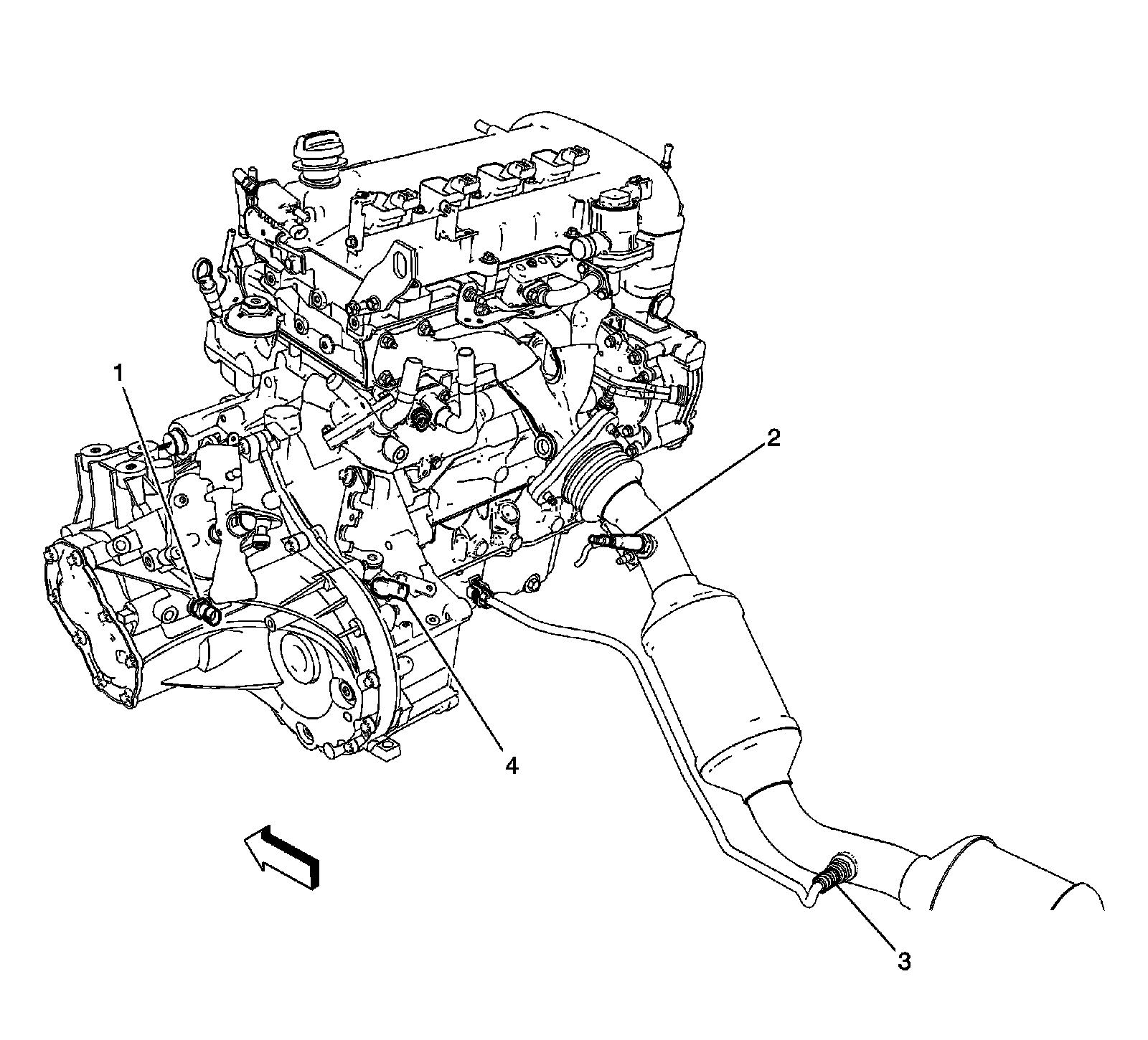

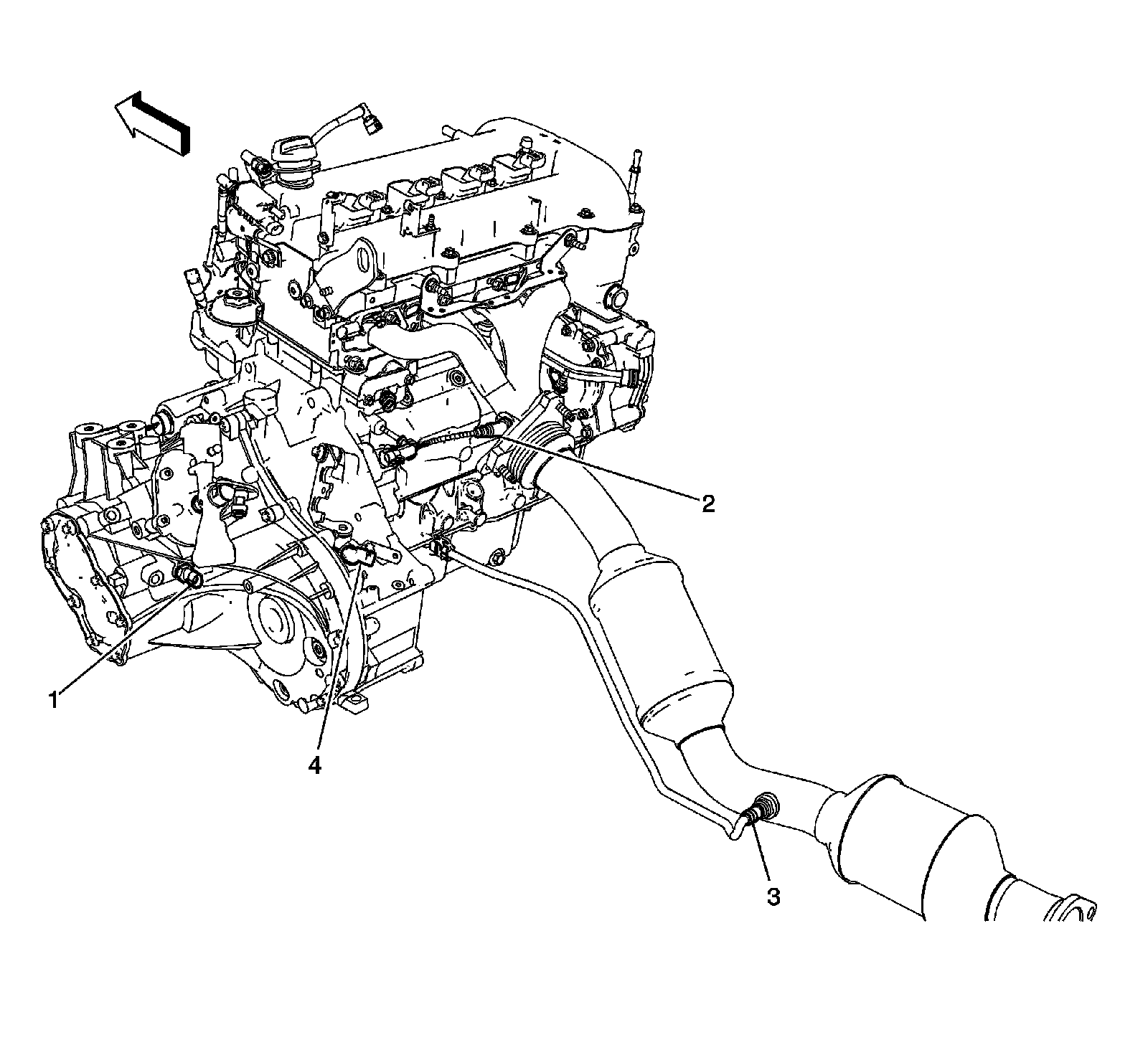

Engine (LE5) and Manual Transmission (M86)
1 - Backup Lamp Switch (M86)
2 - Heated Oxygen Sensor (HO2S) 1
3 - Heated Oxygen Sensor (HO2S) 2
4 - Vehicle Speed Sensor (VSS)

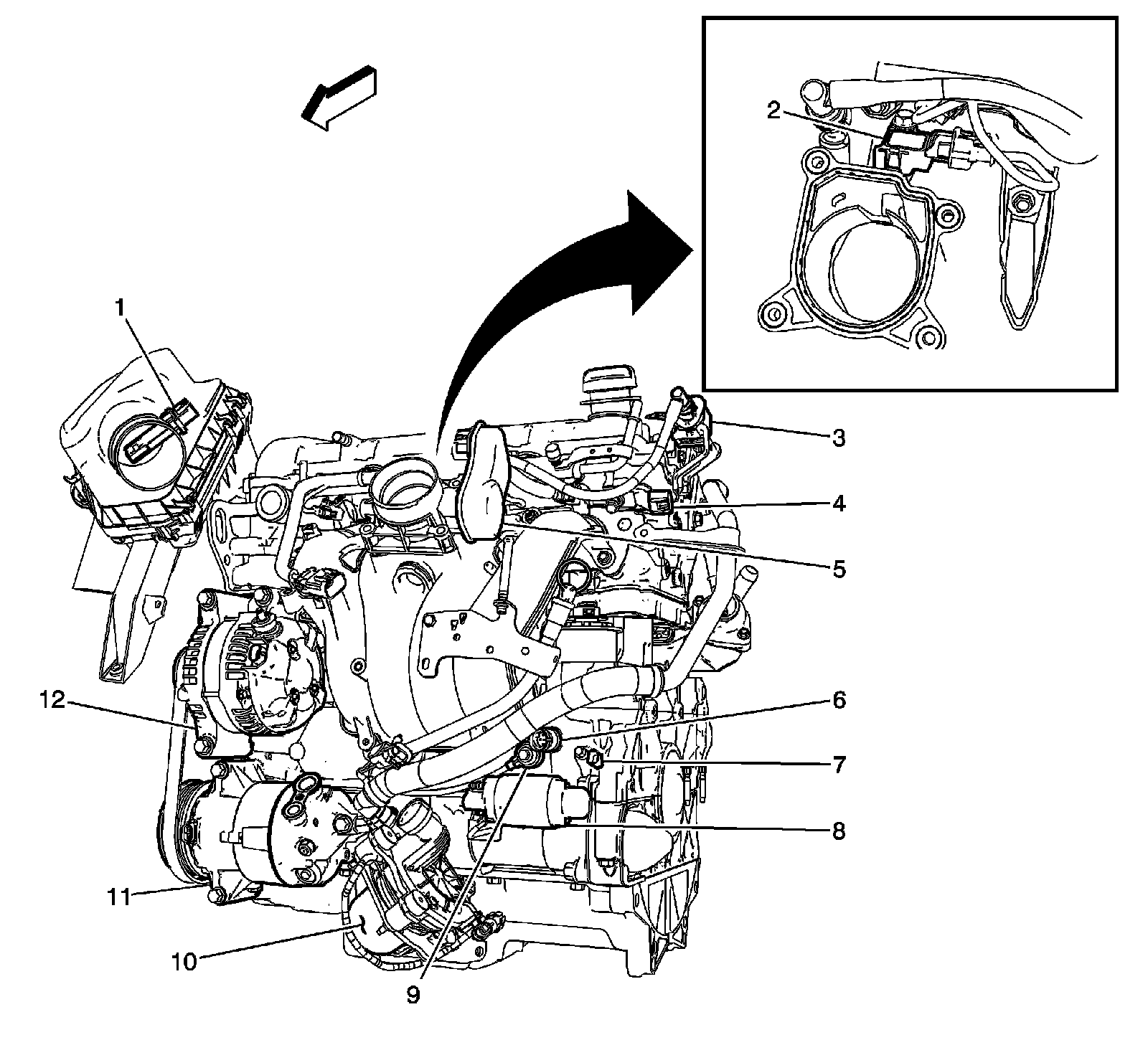

Engine - Front View (L61)
1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (L61/LE5)
2 - Manifold Absolute Pressure (MAP) Sensor (L61/LE5)
3 - Evaporative Emission (EVAP) Canister Purge Solenoid
4 - Camshaft Position (CMP) Sensor (L61)
5 - Throttle Actuator Control (TAC) Module (L61/LE5)
6 - Engine Oil Pressure (EOP) Switch
7 - Crankshaft Position (CKP) Sensor
8 - Starter Solenoid
9 - Knock Sensor (KS) (L61/LE5)
10 - Secondary Air Injection (AIR) Pump (NU6)
11 - A/C Compressor Clutch (C67)
12 - Generator

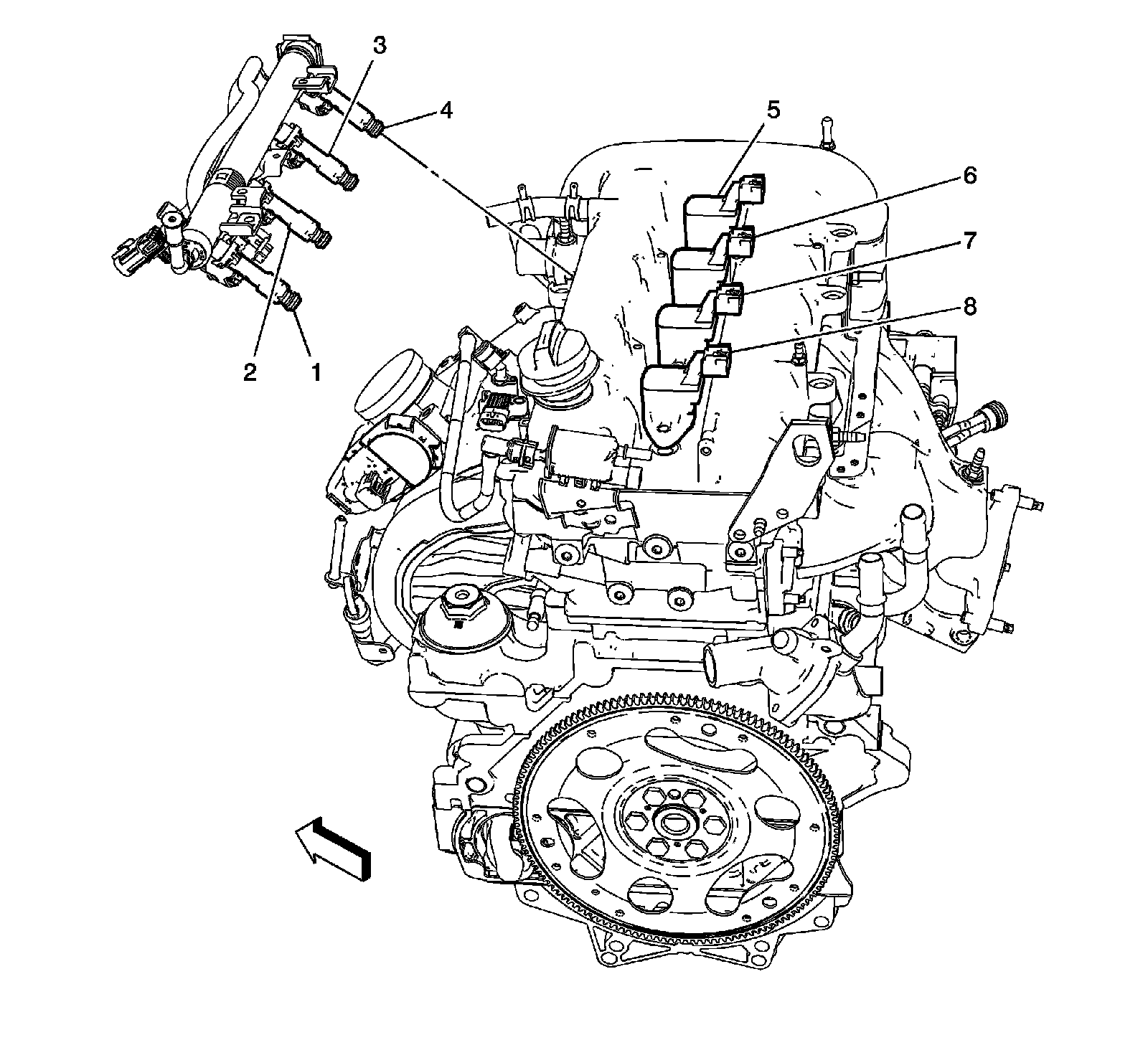

Engine (L61/LE5)-Top View
1 - Fuel Injector 4 (L61/LE5)
2 - Fuel Injector 3 (L61/LE5)
3 - Fuel Injector 2 (L61/LE5)
4 - Fuel Injector 1 (L61/LE5)
5 - Ignition Coil/Module 1
6 - Ignition Coil/Module 2
7 - Ignition Coil/Module 3
8 - Ignition Coil/Module 4

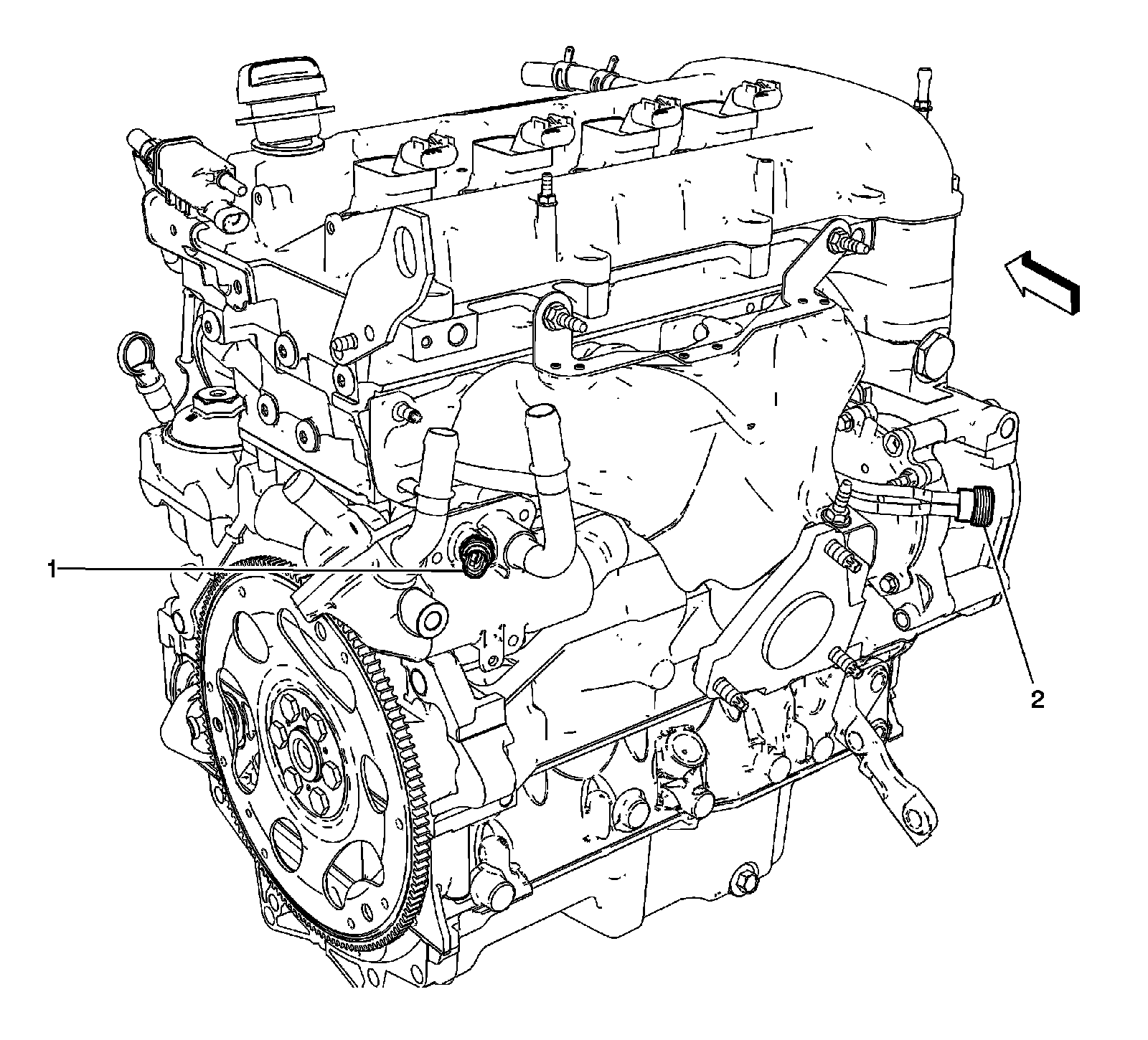

Engine - Rear View (L61)
1 - Engine Coolant Temperature (ECT) Sensor (L61)
2 - Engine Block Heater Connector
Engine (L61) and Manual Transmission (M86)
1 - Backup Lamp Switch (M86)
2 - Heated Oxygen Sensor (HO2S) 1
3 - Heated Oxygen Sensor (HO2S) 2
4 - Vehicle Speed Sensor (VSS)

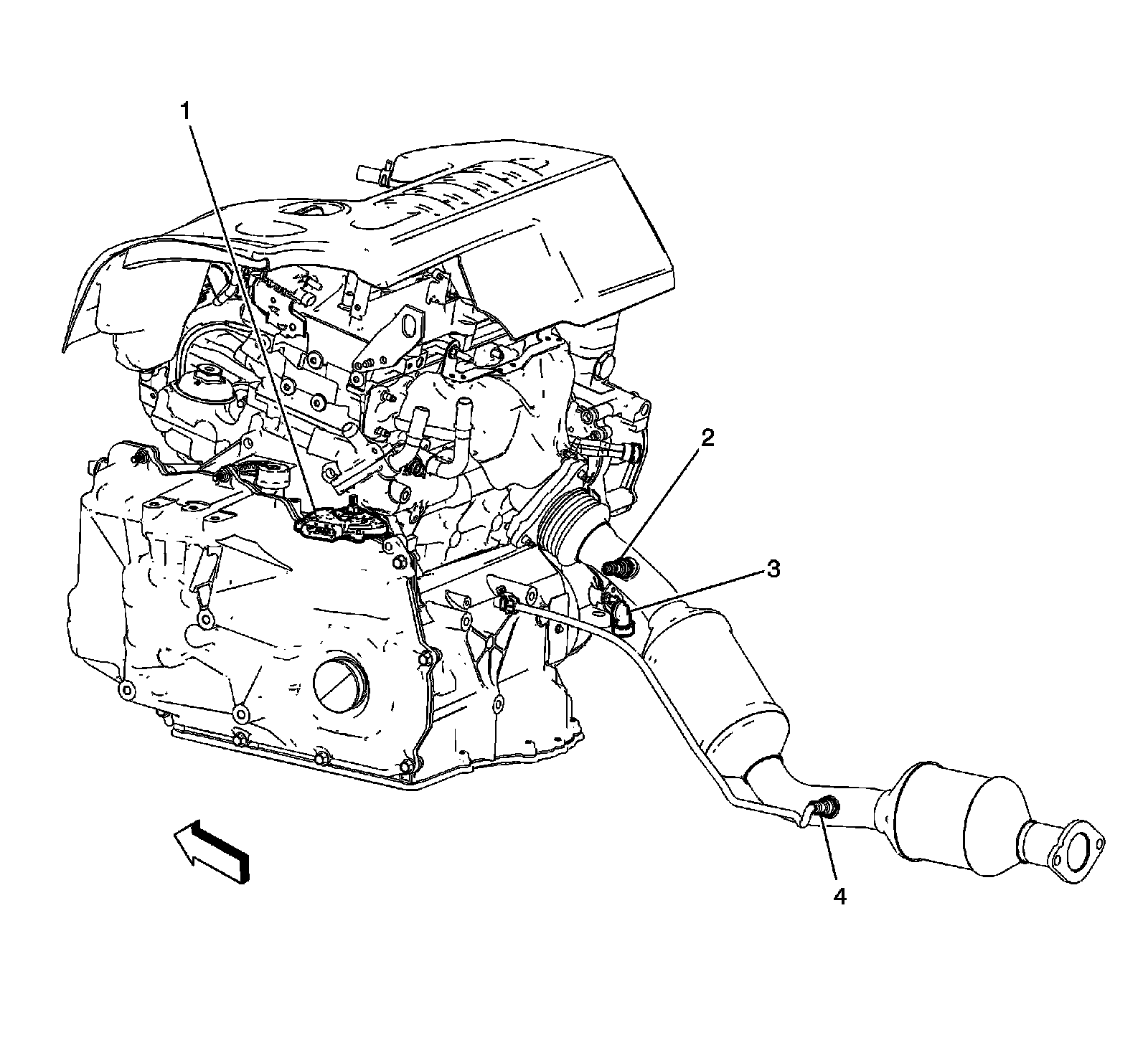

Engine (L61) and Automatic Transmission (MN5)
1 - Park/Neutral Position (PNP) Switch (MN5/MXO)
2 - Heated Oxygen Sensor (HO2S) 1
3 - Vehicle Speed Sensor (VSS)
4 - Heated Oxygen Sensor (HO2S) 2

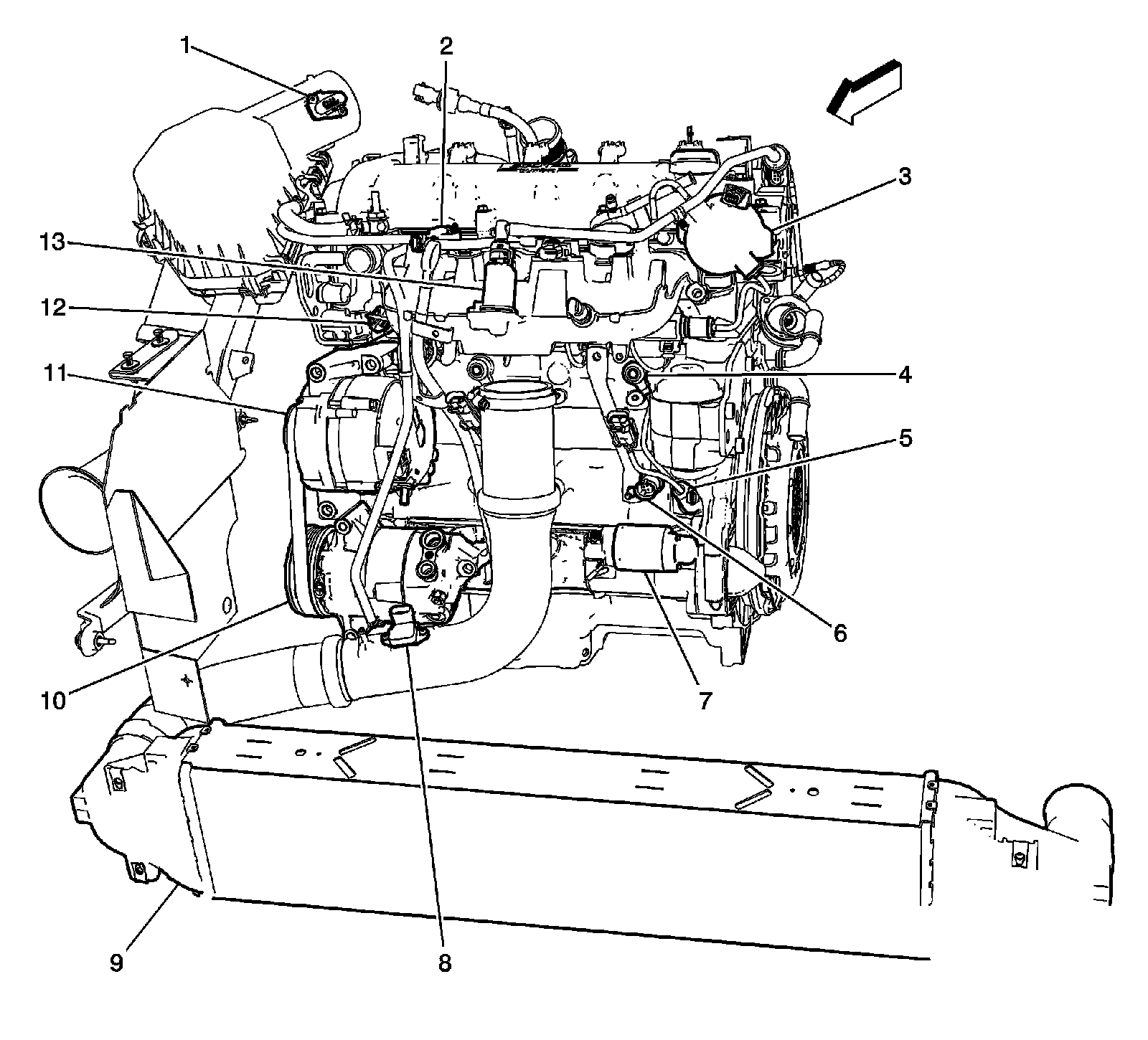

Engine - Front View (LNF)
1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LNF)
2 - Turbo Bypass Valve Solenoid (LNF)
3 - High Pressure Fuel Pump
4 - Knock Sensor (KS) 2
5 - Crankshaft Position (CKP) Sensor
6 - Engine Oil Pressure (EOP) Switch
7 - Starter Solenoid
8 - Turbocharger Intake Air Pressure and Temperature Sensor
9 - Charge Air Cooler
10 - A/C Compressor Clutch (C70)
11 - Generator
12 - Fuel Rail Pressure (FRP) Sensor
13 - Evaporative Emission (EVAP) Canister Purge Solenoid

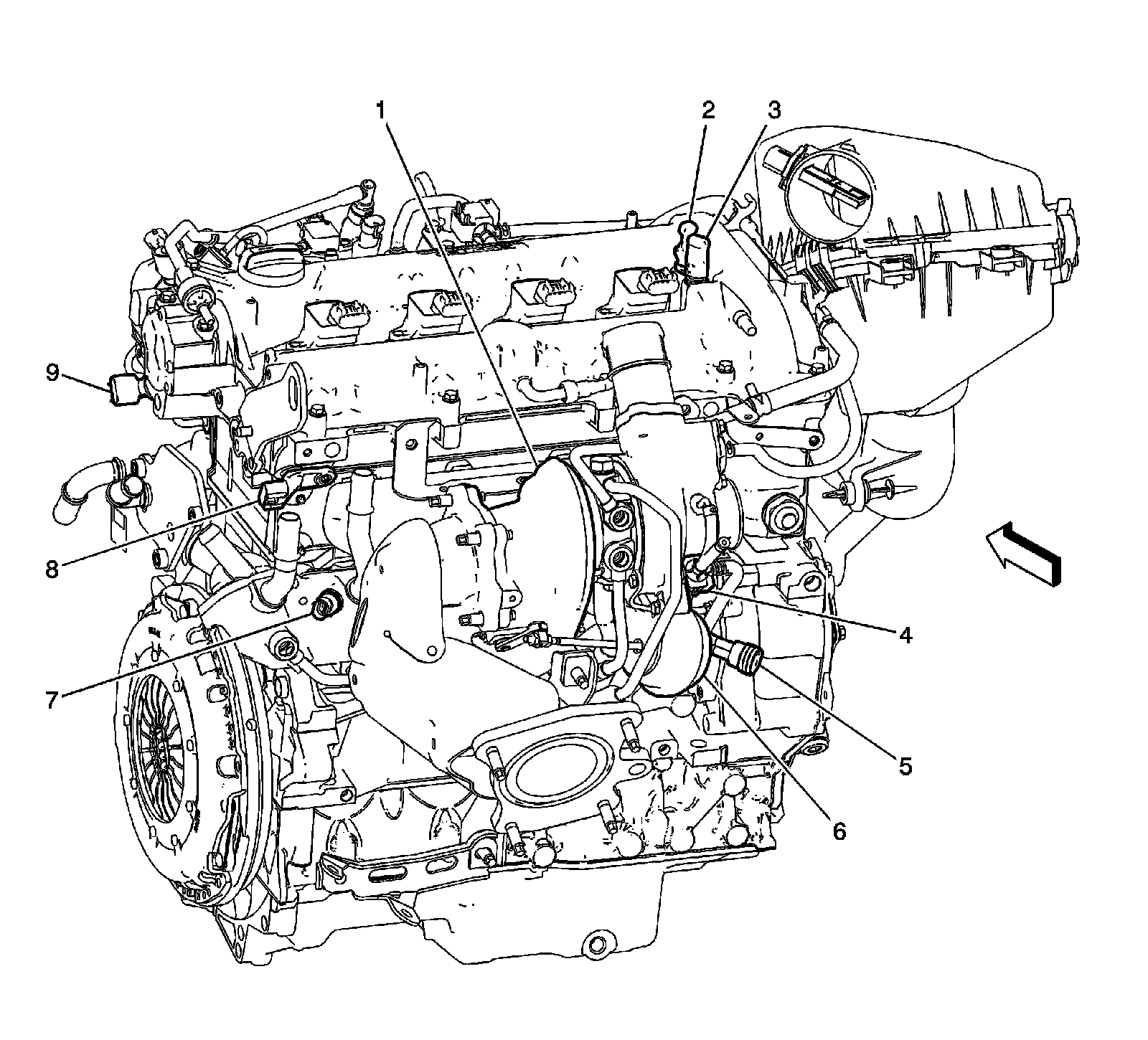

Engine - Rear View (LNF)
1 - Turbocharger
2 - Camshaft Position (CMP) Actuator Solenoid - Intake (LE5/LNF)
3 - Camshaft Position (CMP) Actuator Solenoid - Exhaust (LE5/LNF)
4 - Turbocharger Wastegate Solenoid (LNF)
5 - Heater Block Connector
6 - Turbocharger Wastegate Actuator (LNF)
7 - Engine Coolant Temperature (ECT) Sensor (LNF)
8 - Camshaft Position (CMP) Sensor - Exhaust (LE5/LNF)
9 - Camshaft Position (CMP) Sensor - Intake (LE5/LNF)

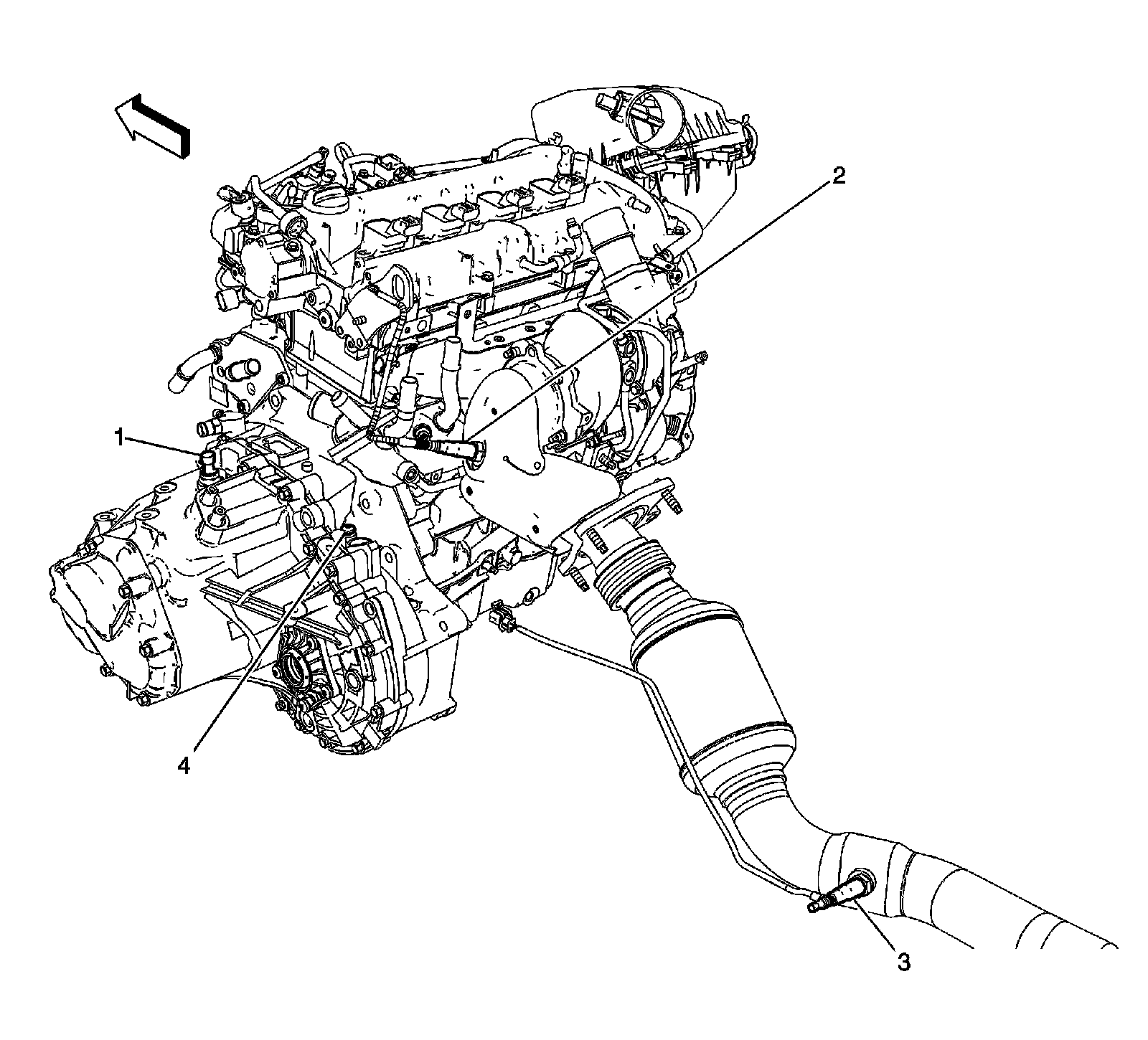

Engine (LNF) and Manual Transmission (M86)
1 - Backup Lamp Switch (M86)
2 - Heated Oxygen Sensor (HO2S) 1
3 - Heated Oxygen Sensor (HO2S) 2
4 - Vehicle Speed Sensor (VSS)

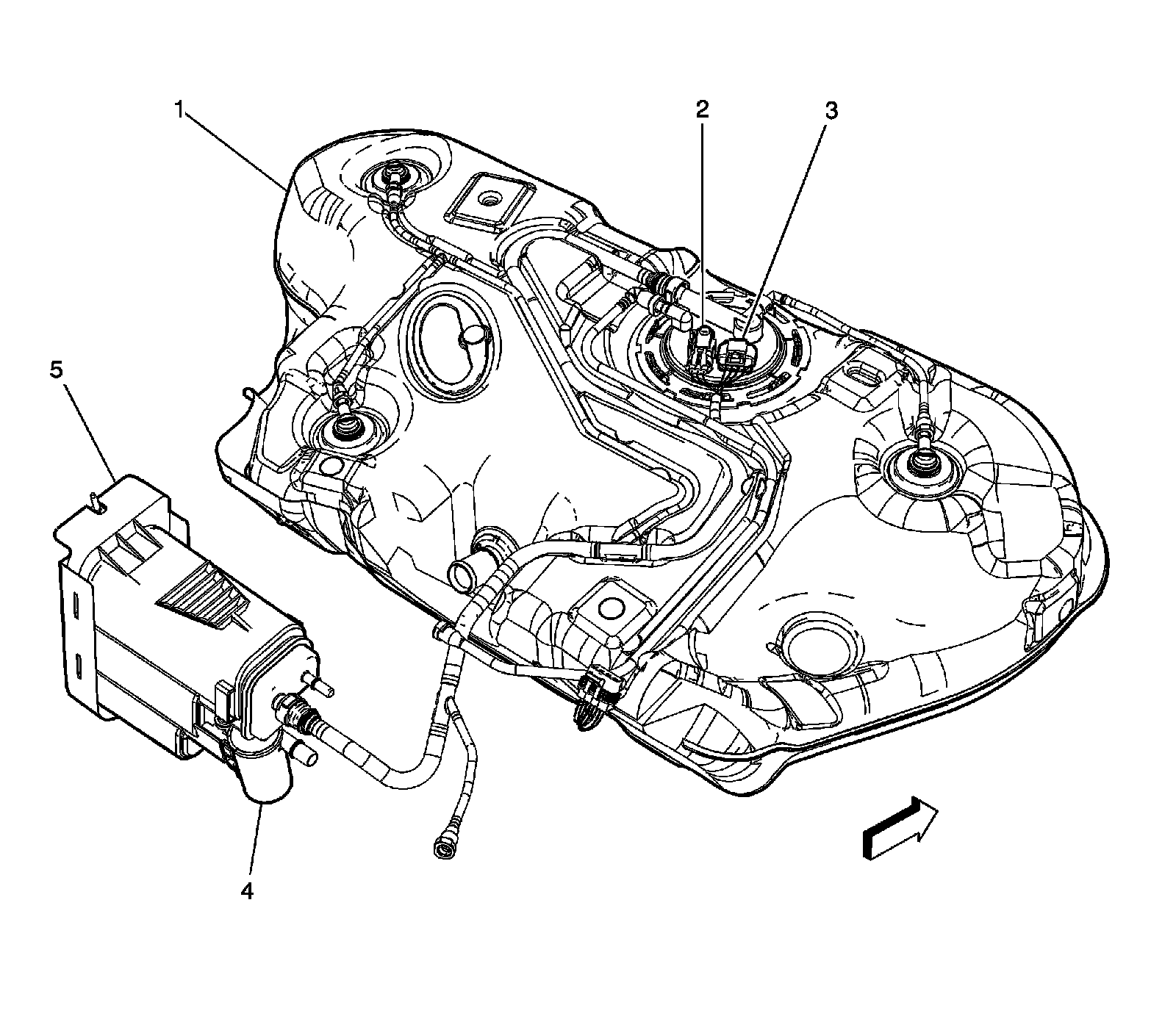

Fuel Tank Components
1 - Fuel Tank
2 - Fuel Pump and Sender Assembly
3 - Fuel Tank Pressure Sensor
4 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 - Evaporative Emission (EVAP) Canister

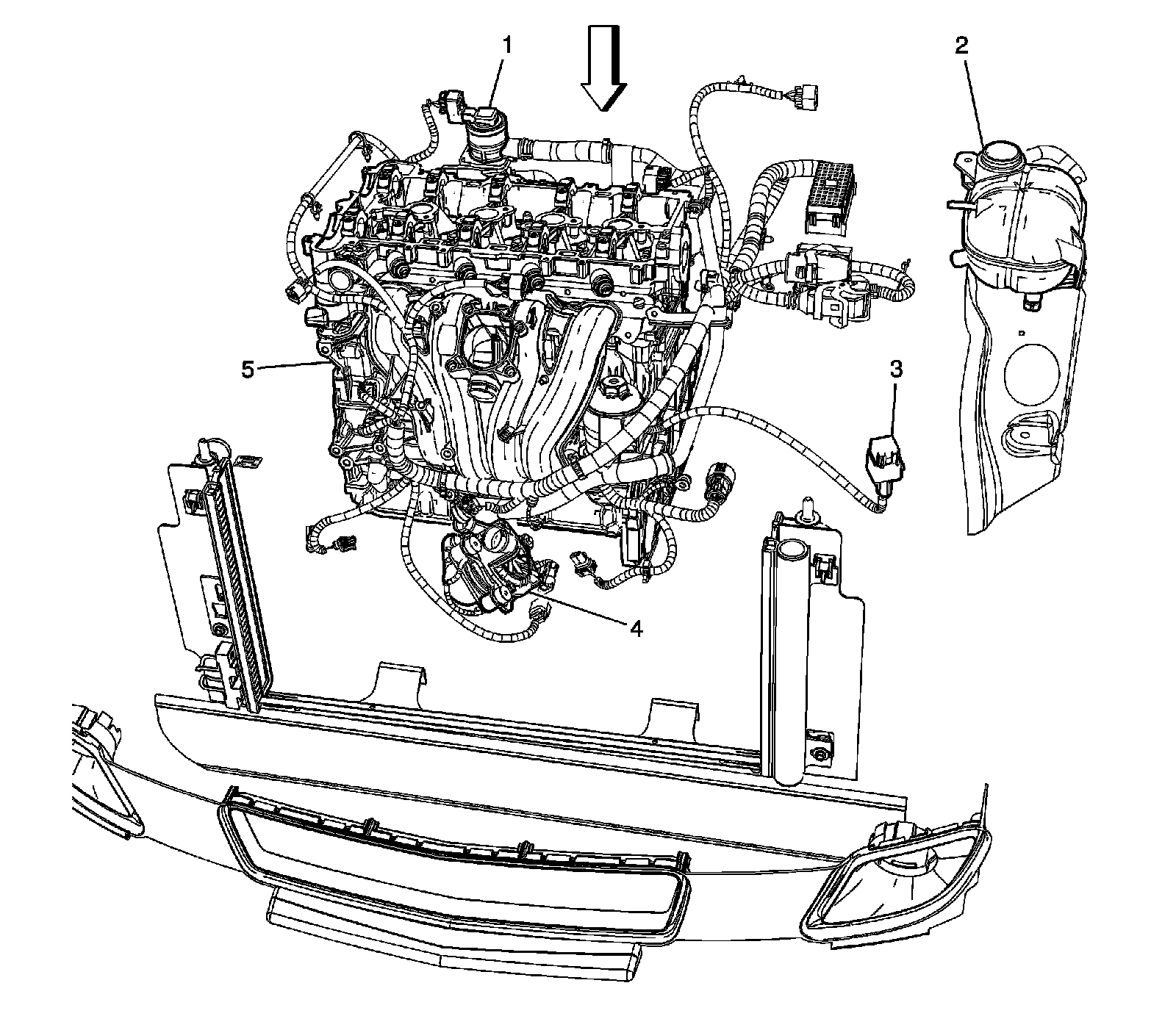

Secondary Air Injection (AIR) Components (NU6)
1 - Secondary Air Injection (AIR) Solenoid (NU6)
2 - Coolant Overflow Container
3 - Secondary Air Injection (AIR) Relay (NU6)
4 - Secondary Air Injection (AIR) Pump (NU6)
5 - Engine Block

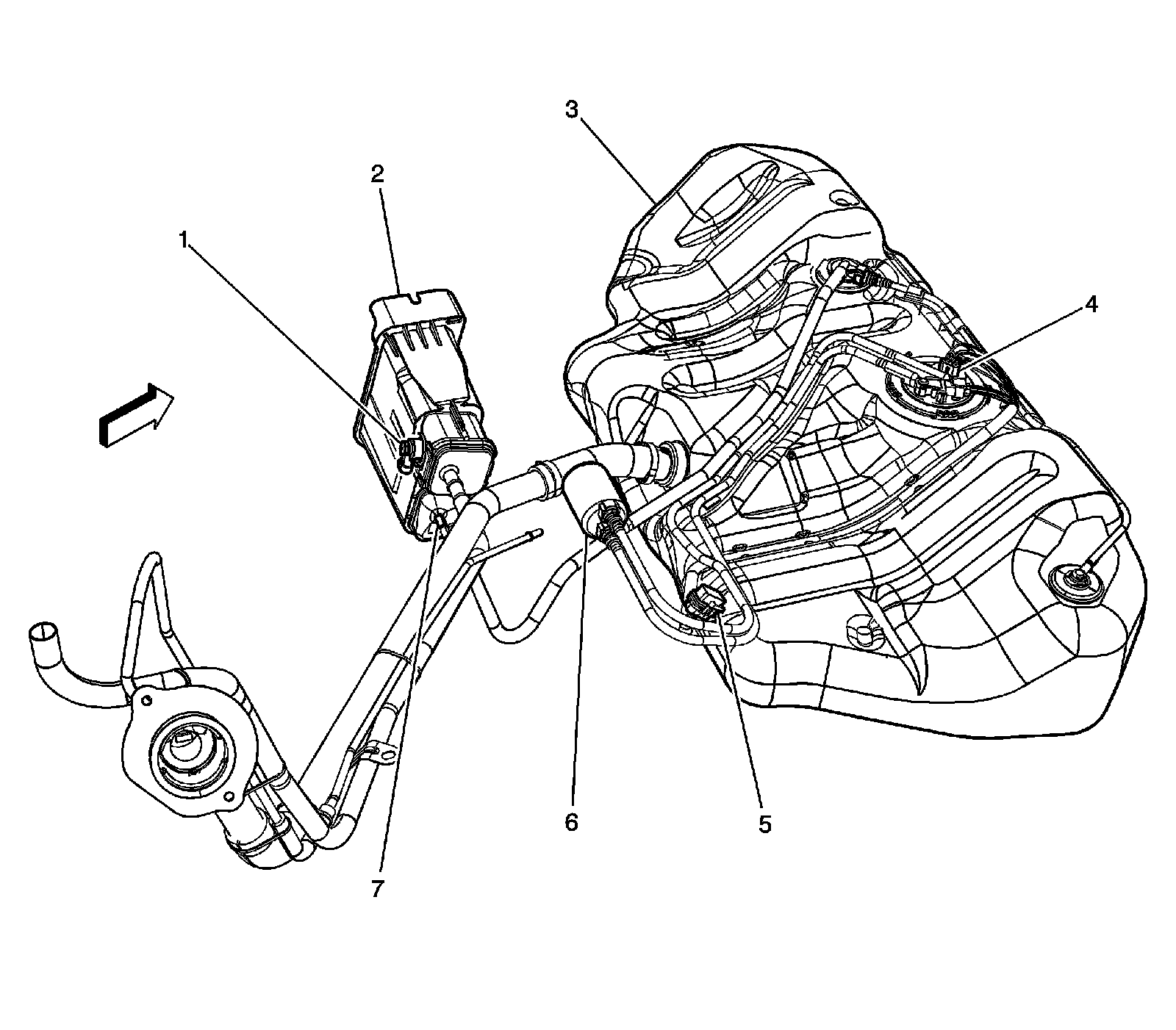

Fuel Tank Components
1 - Evaporative Emission (EVAP) Canister Vent Solenoid
2 - Evaporative Emission (EVAP) Canister
3 - Fuel Tank
4 - Fuel Pump and Sender Assembly
5 - X305
6 - Fuel Filter
7 - Fuel Tank Pressure (FTP) Sensor

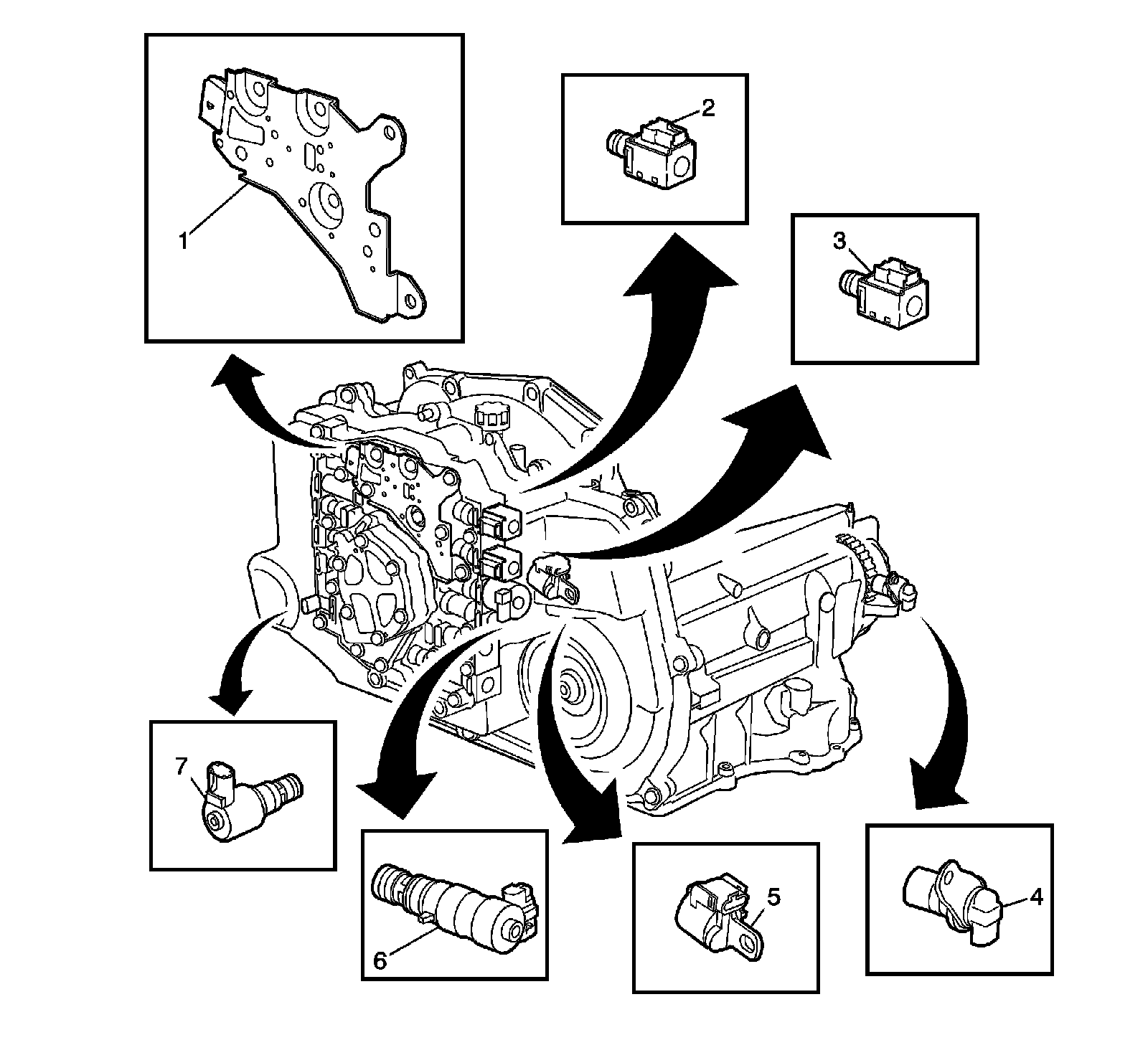

Electronic Components
1 - TFP Manual Valve Position Switch Assembly
2 - 1-2 Shift Solenoid Valve
3 - 2-3 Shift Solenoid Valve
4 - Output Speed Sensor
5 - Input Speed Sensor
6 - Pressure Control Solenoid
7 - TCC Control PWM Solenoid
