Clutch Switch: Diagrams

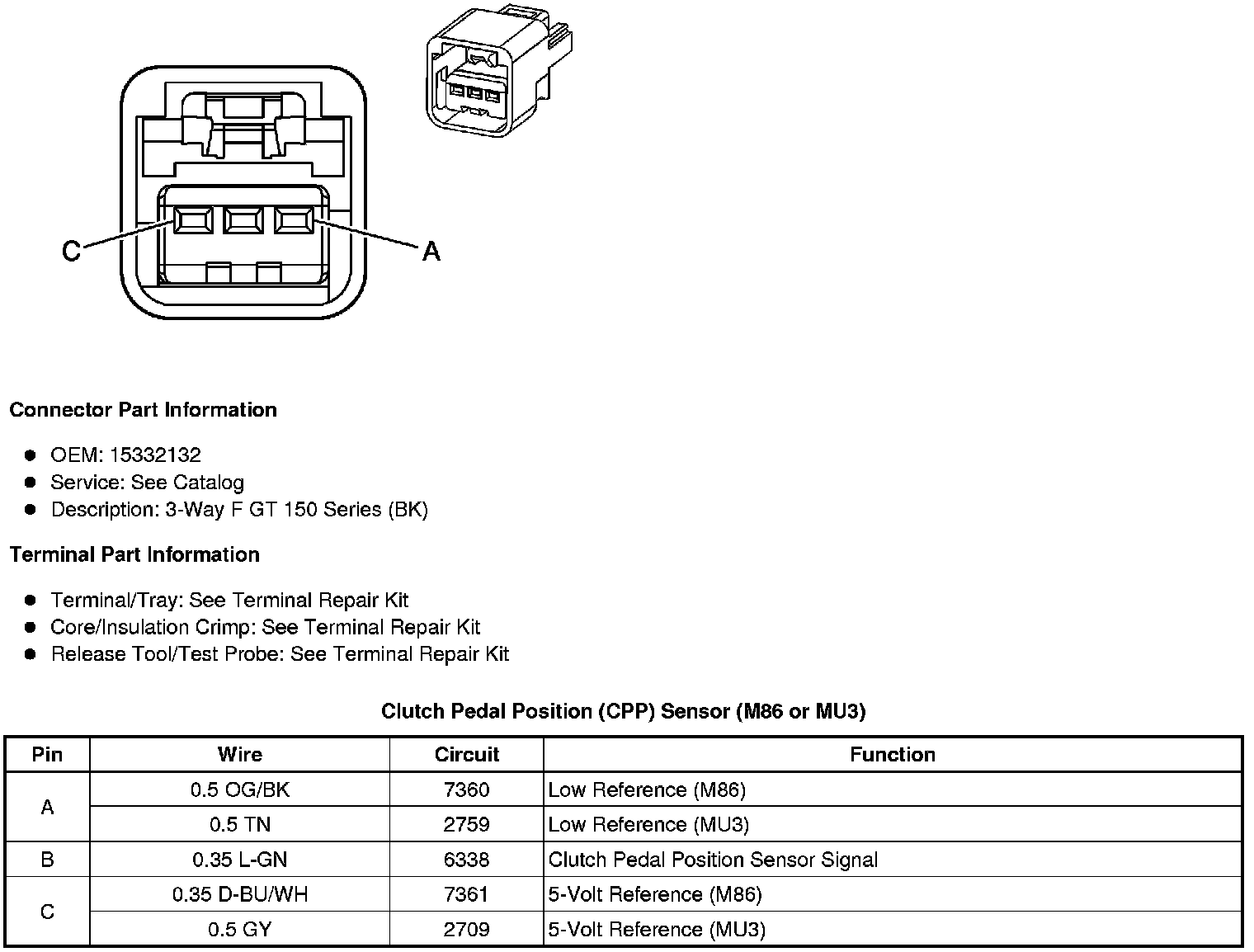

Component Connector End Views

Clutch Pedal Position (CPP) Sensor (M86 or MU3)
