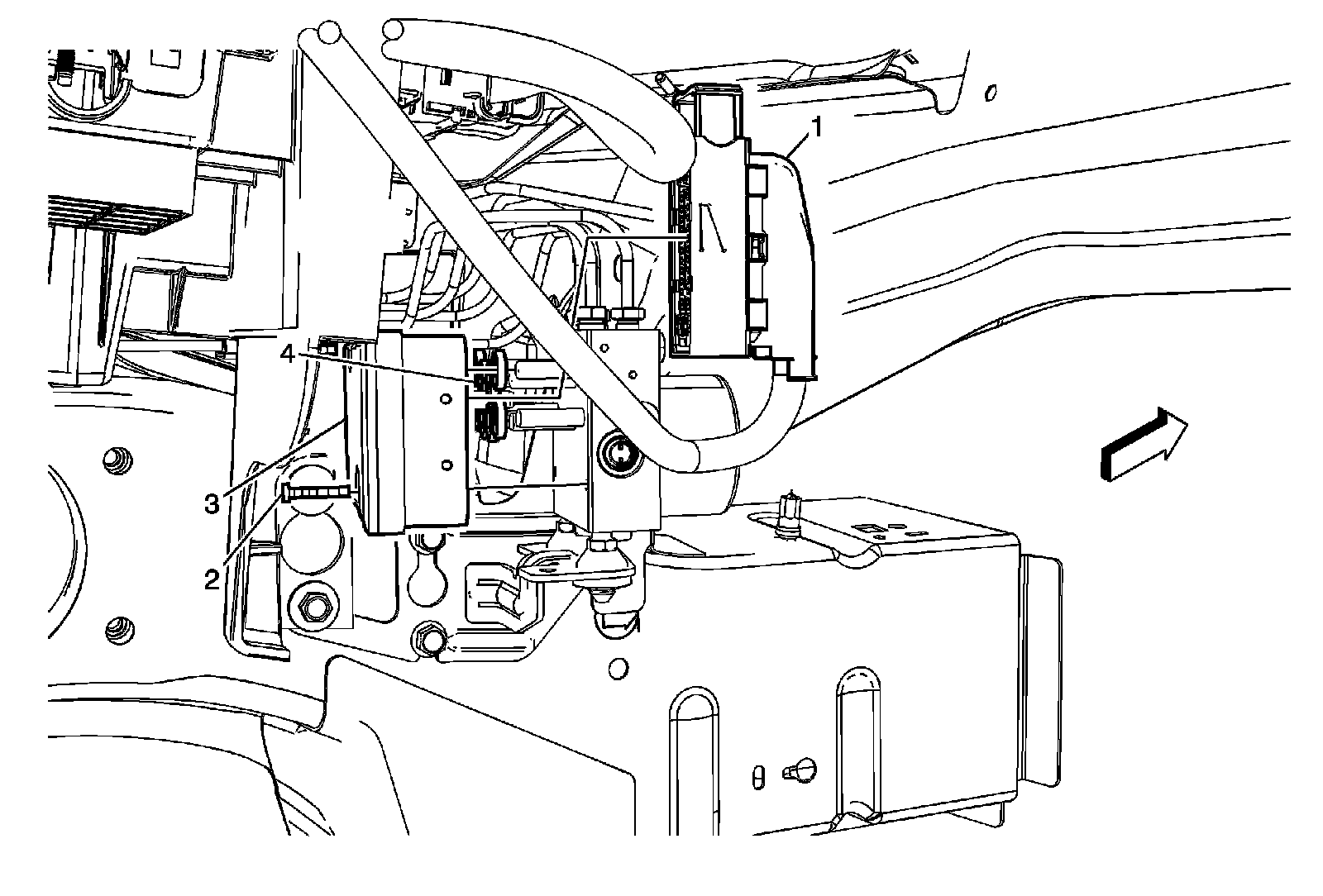

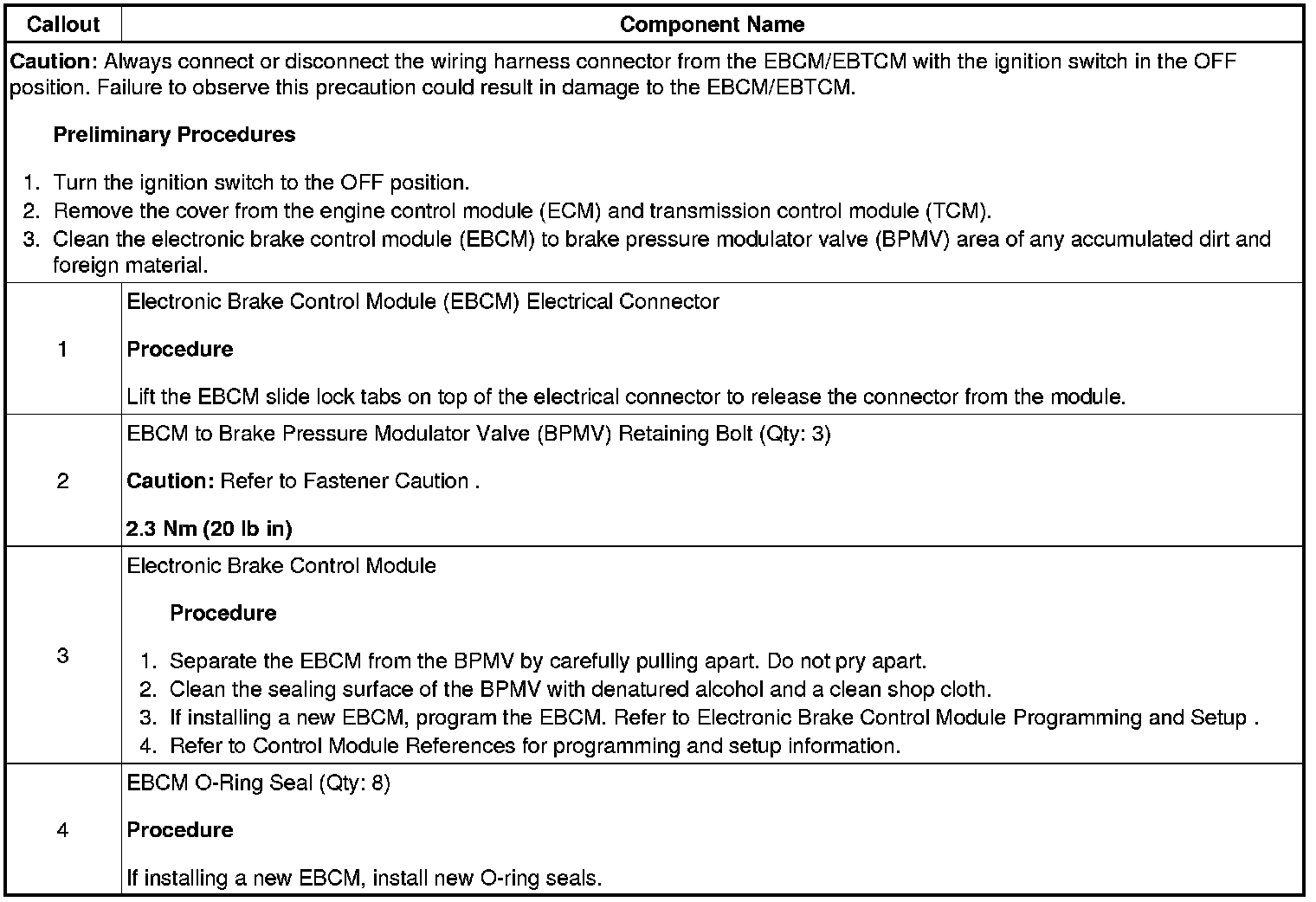

Electronic Brake Control Module Replacement (W/O JL4)




Electronic Brake Control Module Replacement (Without JL4)
