Radio/Navigation System Schematics

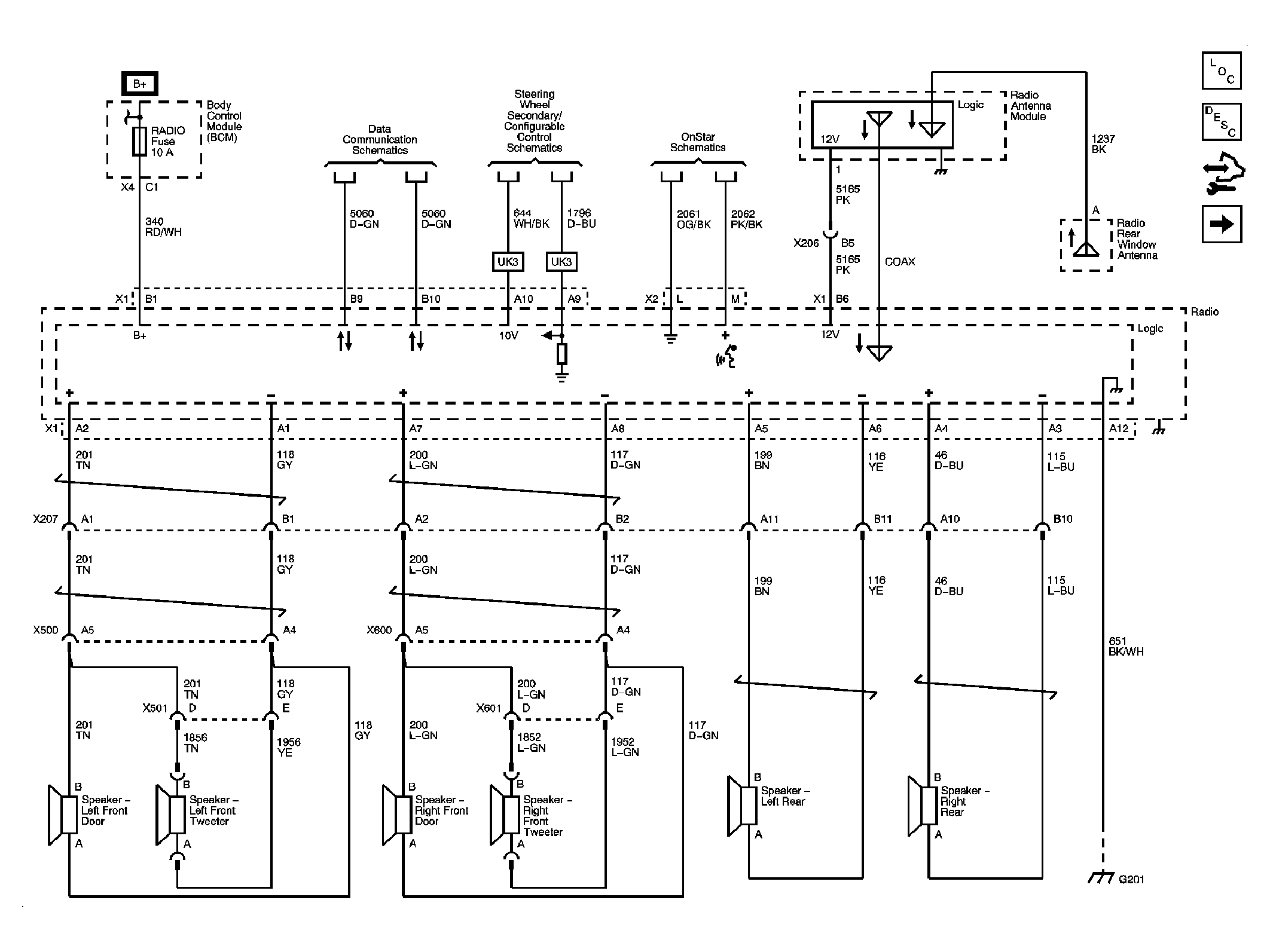

Fig 1: Radio w/UZ6 Schematic

Courtesy of GENERAL MOTORS CORP.

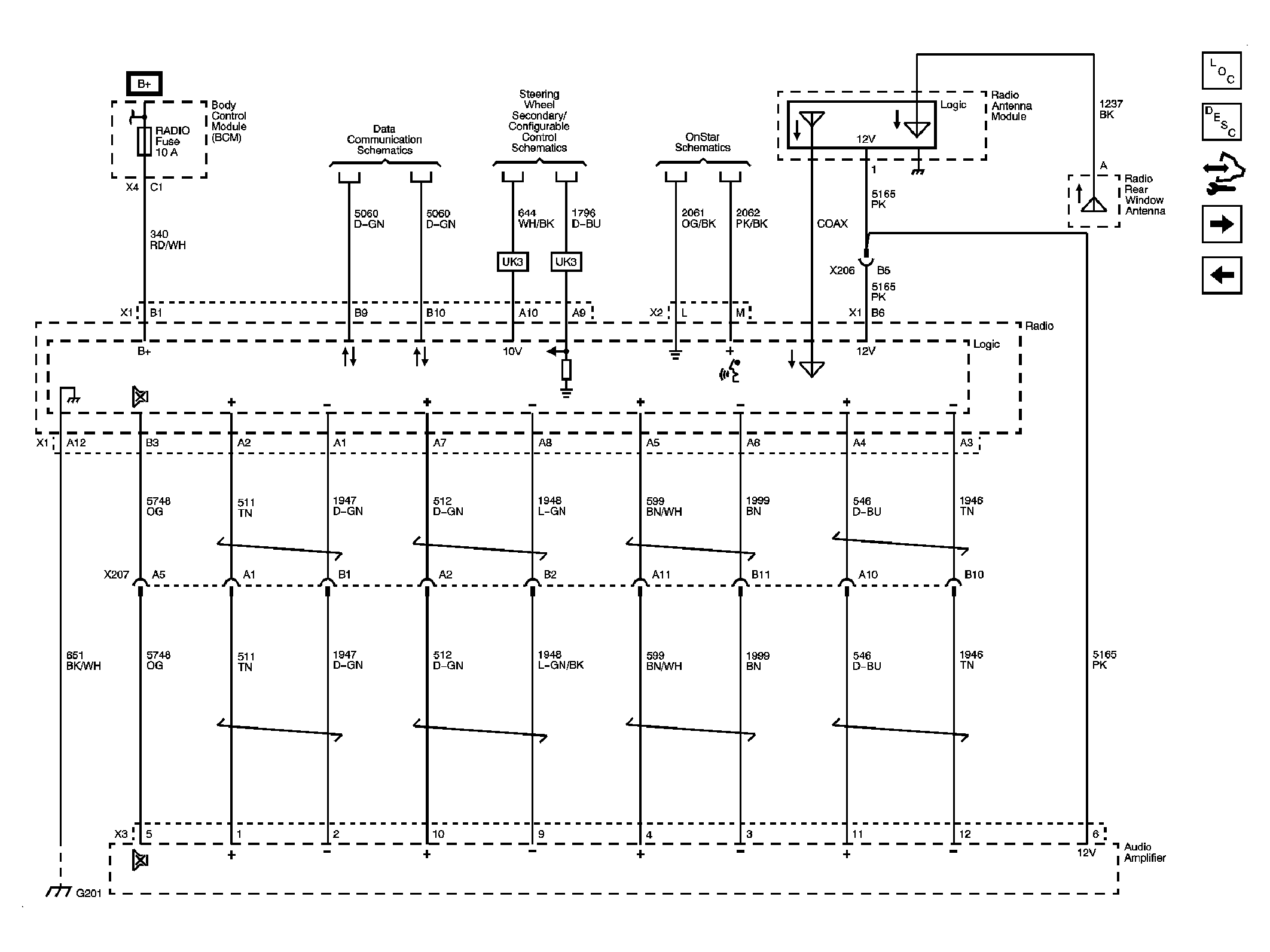

Fig 2: Radio w/U85 Audio Signals Schematic

Courtesy of GENERAL MOTORS CORP.

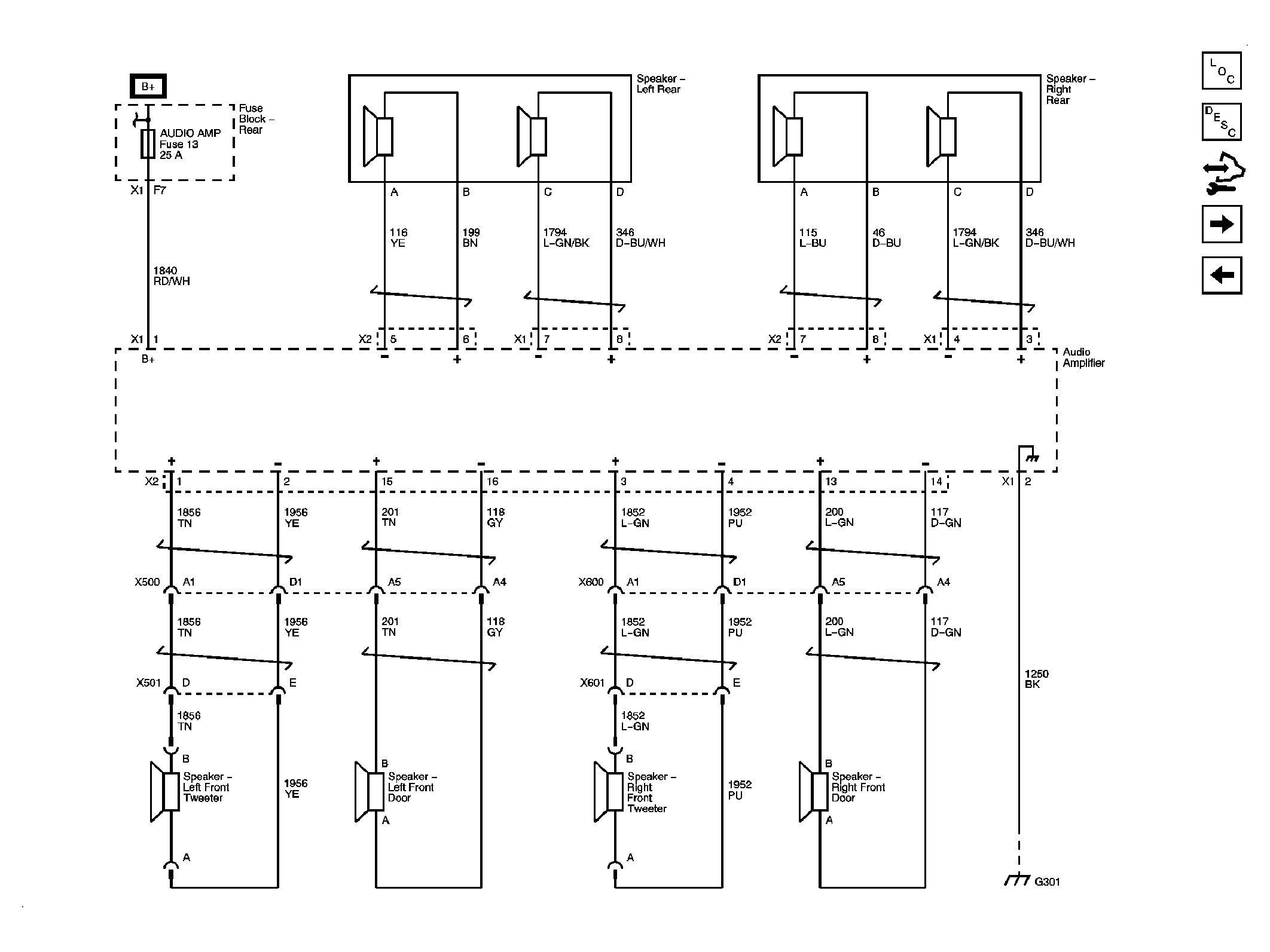

Fig 3: Radio w/U85 (Coupe/Sedan) Schematic

Courtesy of GENERAL MOTORS CORP.

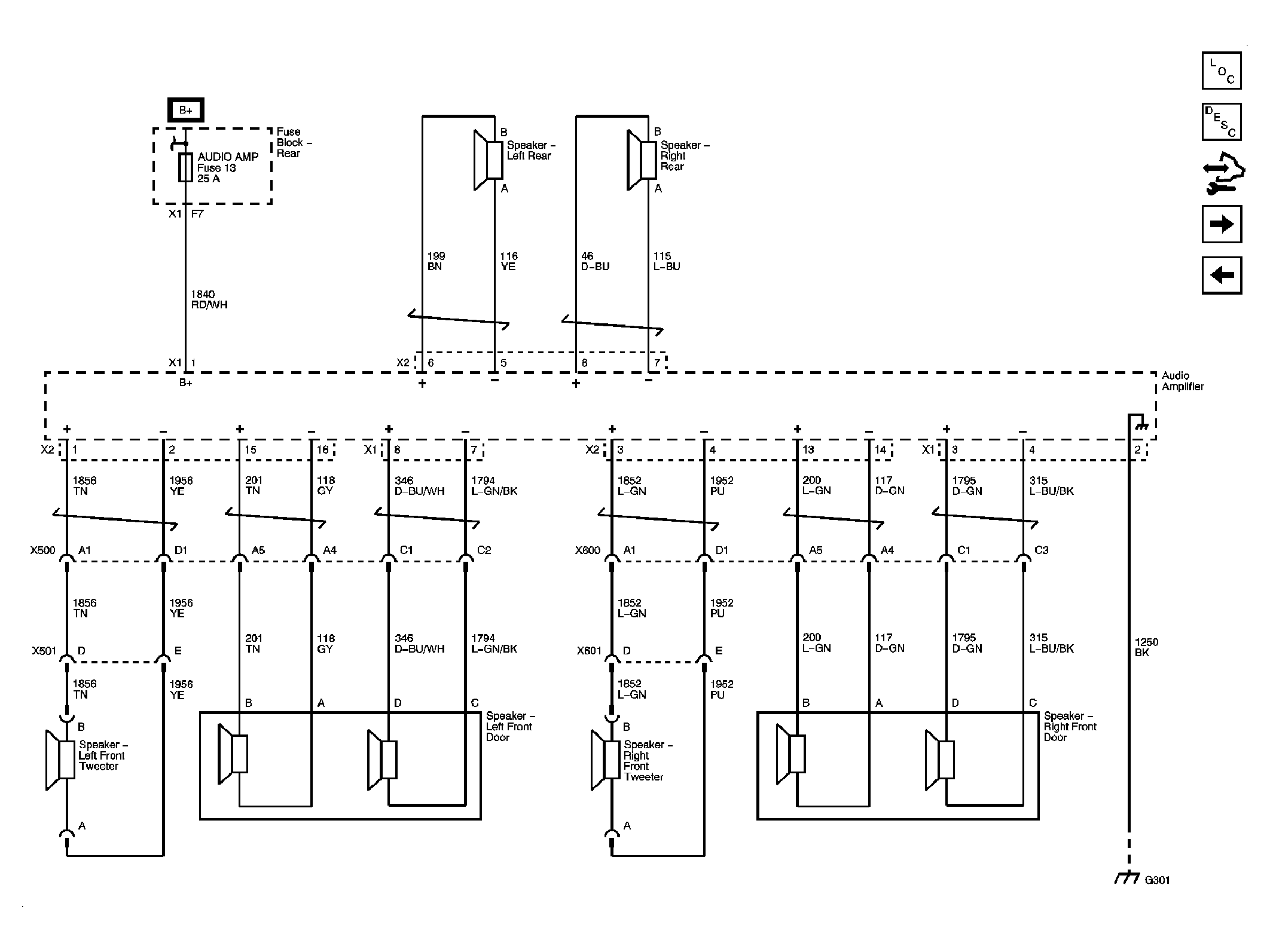

Fig 4: Radio w/U85 (Convertible) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Digital Radio Receiver Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Redundant Radio Controls - 3 Spoke Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Redundant Radio Controls - 4 Spoke Schematic

Courtesy of GENERAL MOTORS CORP.
