Body Control System Schematics

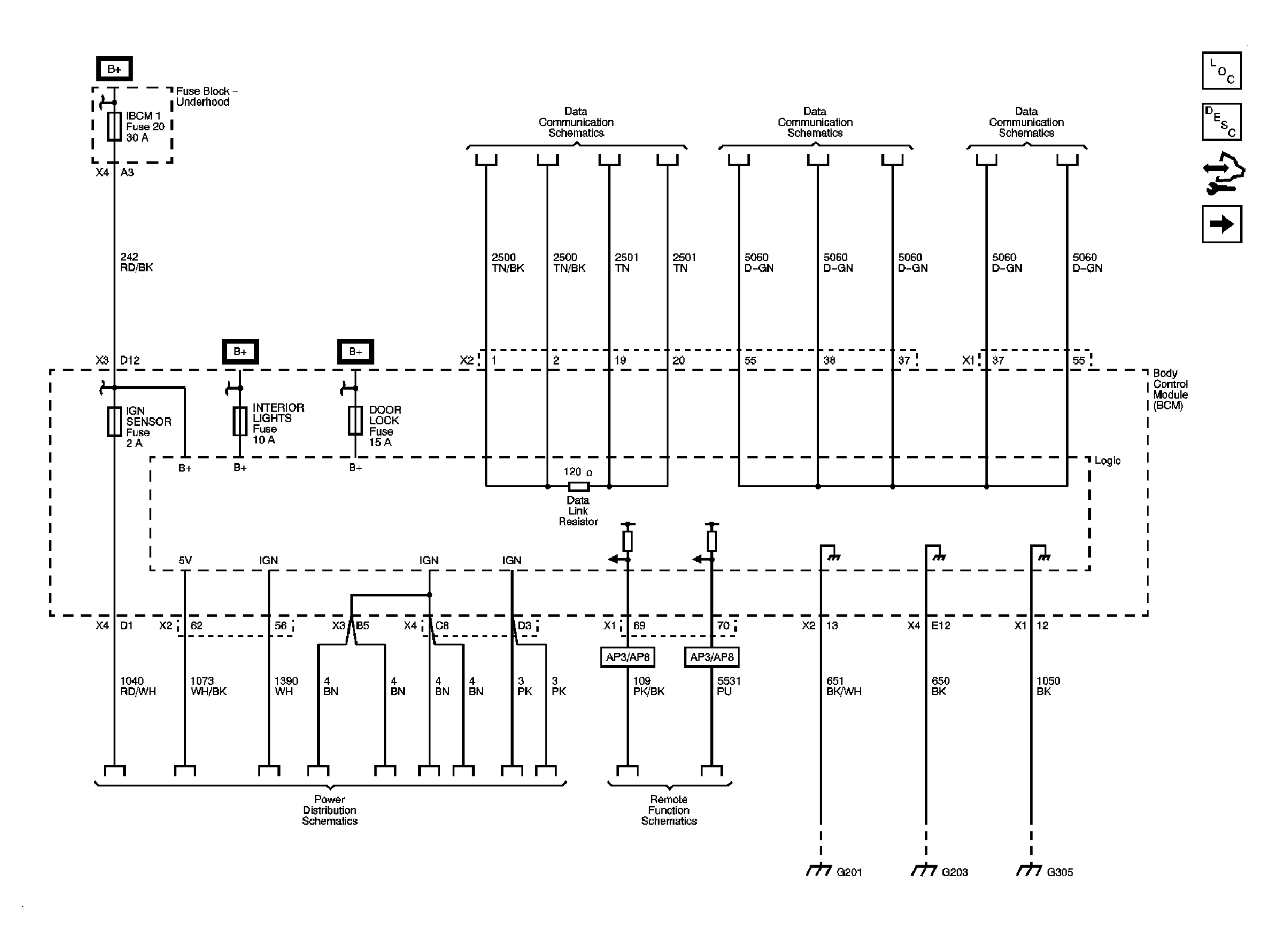

Fig 1: Power, Ground, and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

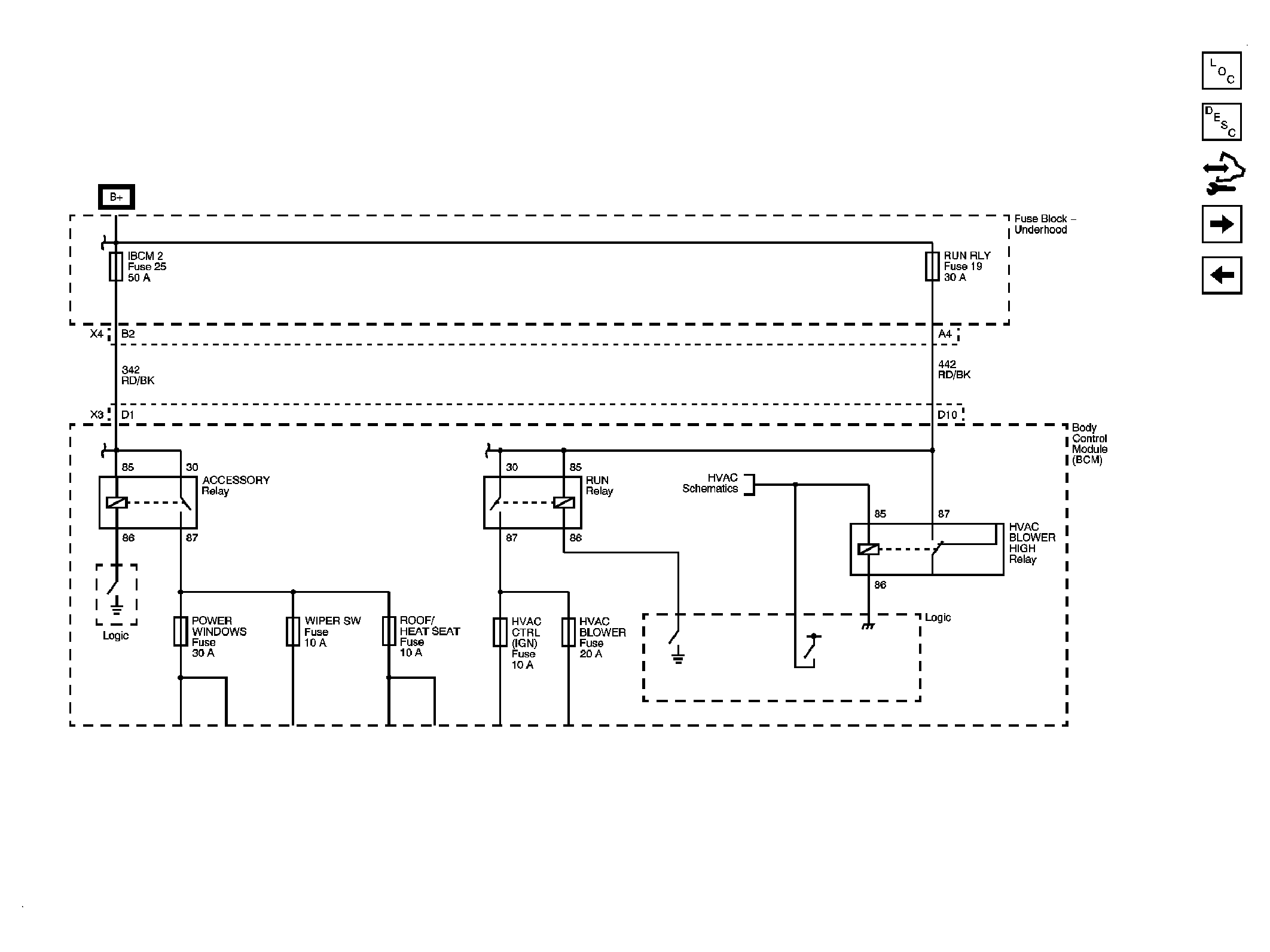

Fig 2: Accessory, HVAC Blower High and Run Relays Schematic

Courtesy of GENERAL MOTORS CORP.

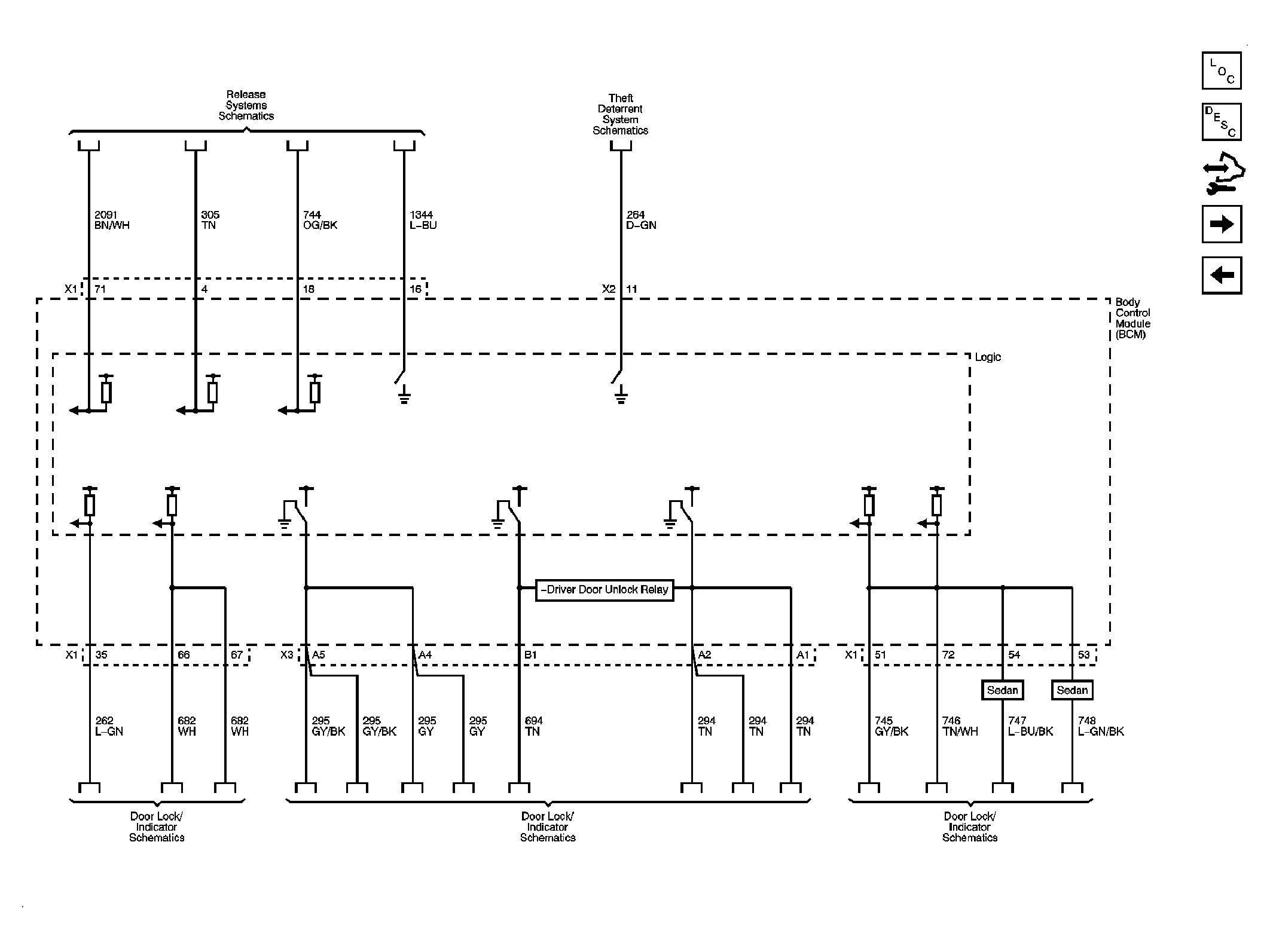

Fig 3: Controlled/Monitored Subsystem References Schematic (1 of 3)

Courtesy of GENERAL MOTORS CORP.

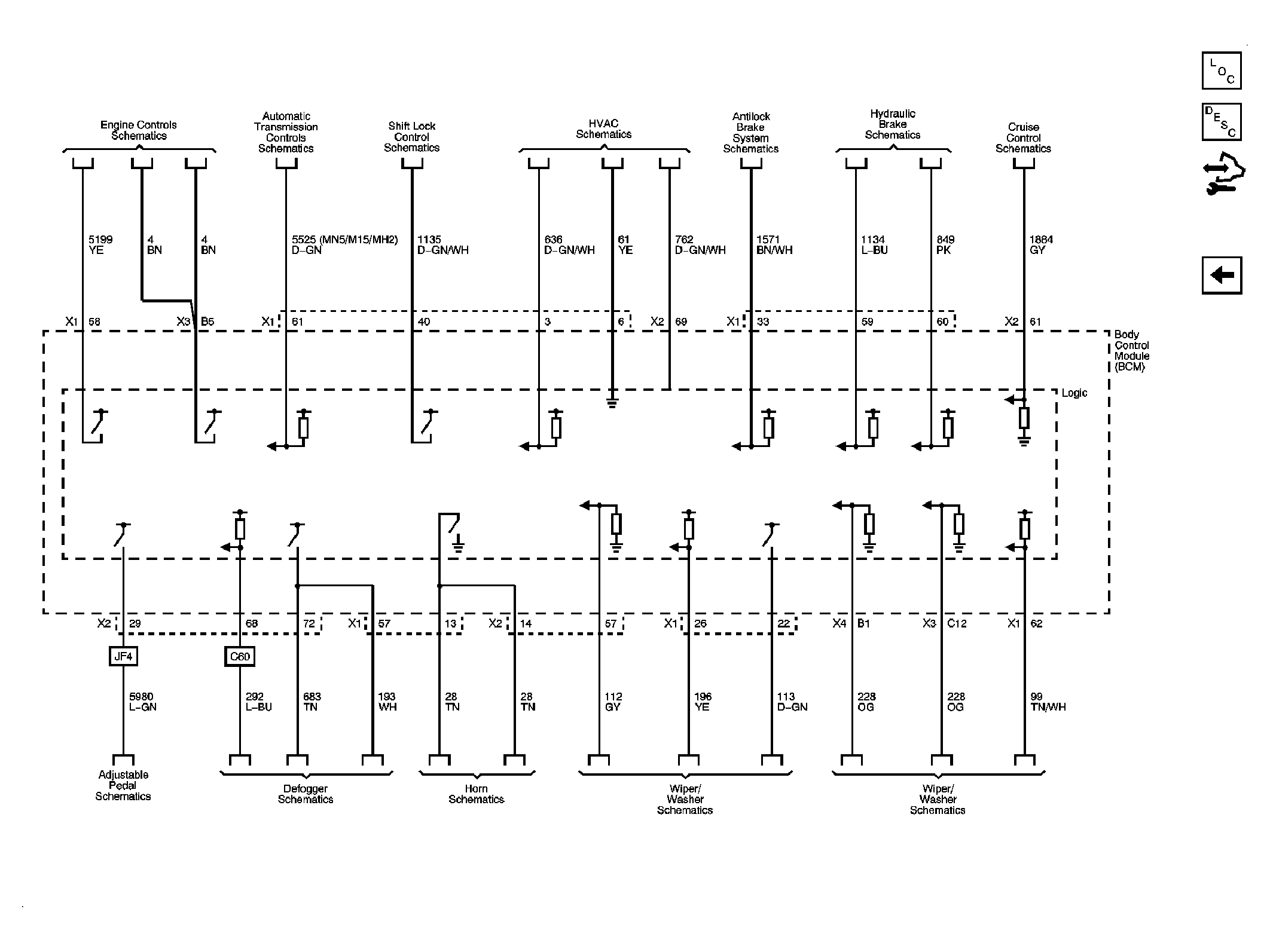

Fig 4: Controlled/Monitored Subsystem References Schematic (2 of 3)

Courtesy of GENERAL MOTORS CORP.

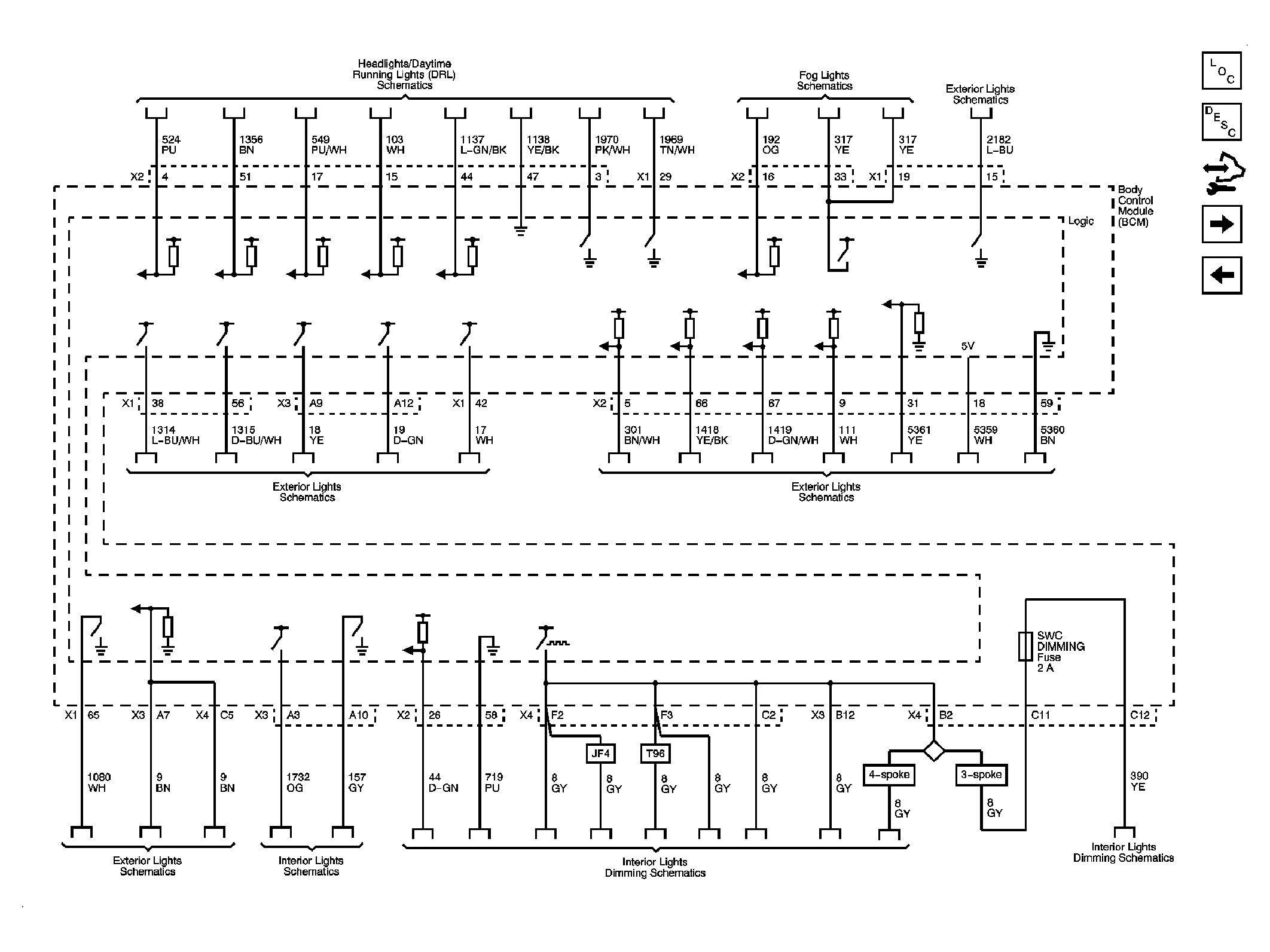

Fig 5: Controlled/Monitored Subsystem References Schematic (3 of 3)

Courtesy of GENERAL MOTORS CORP.
