Installation Procedure

    Fig 1: View Of ECT Sensor
    GM1836047Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the ECT sensor and tighten to 22 N.m (16 lb ft).

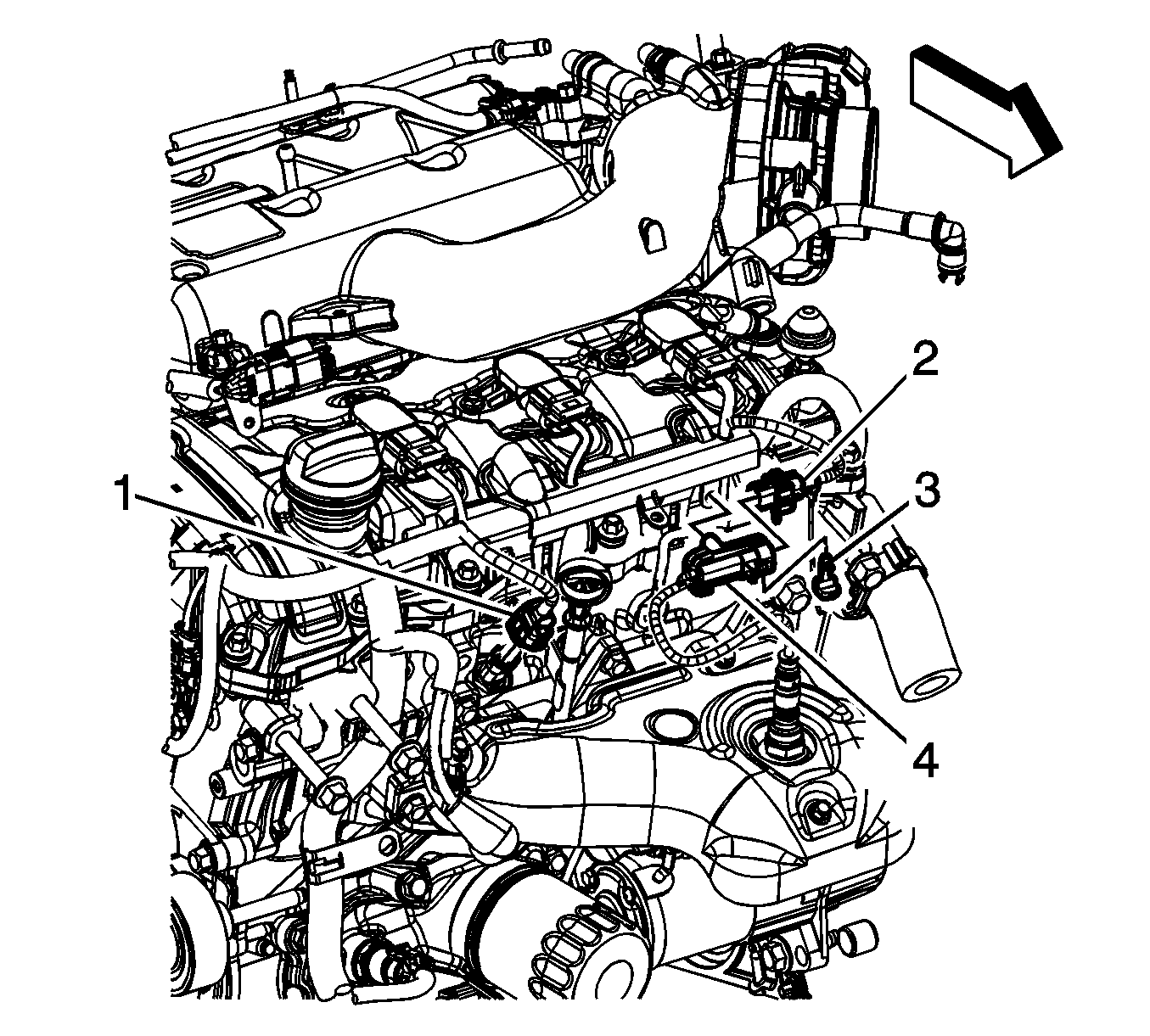

    2. Fig 2: Identifying ECT & HO2S Wiring Harness Connectors
    GM1838989Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (1) to the ECT sensor.
