Installation Procedure

    Fig 1: View Of Throttle Body & Bolts
    GM1839345Courtesy of GENERAL MOTORS CORP.
  1. Position a NEW throttle body gasket to the upper intake manifold.
  2. Position the throttle body to the upper intake manifold.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the throttle body bolts and tighten to 10 N.m (89 lb in).

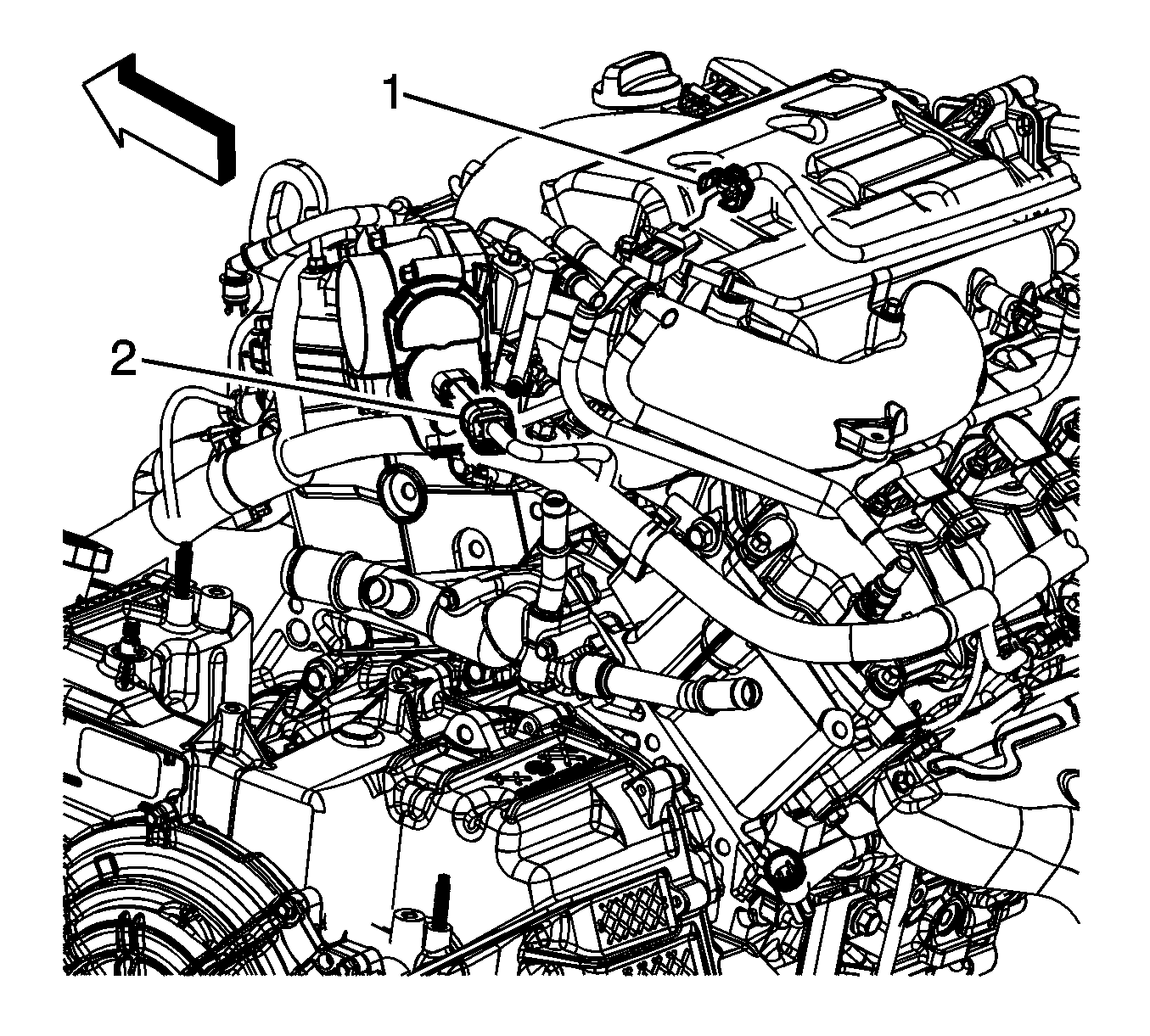

    4. Fig 2: Identifying MAP Sensor & ETC Electrical Connectors
    GM1838990Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (2) to the ETC.
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  6. Perform the Throttle Learn Procedure. Refer to Throttle Learn .
