Cylinder Head Assembly

CYLINDER HEAD

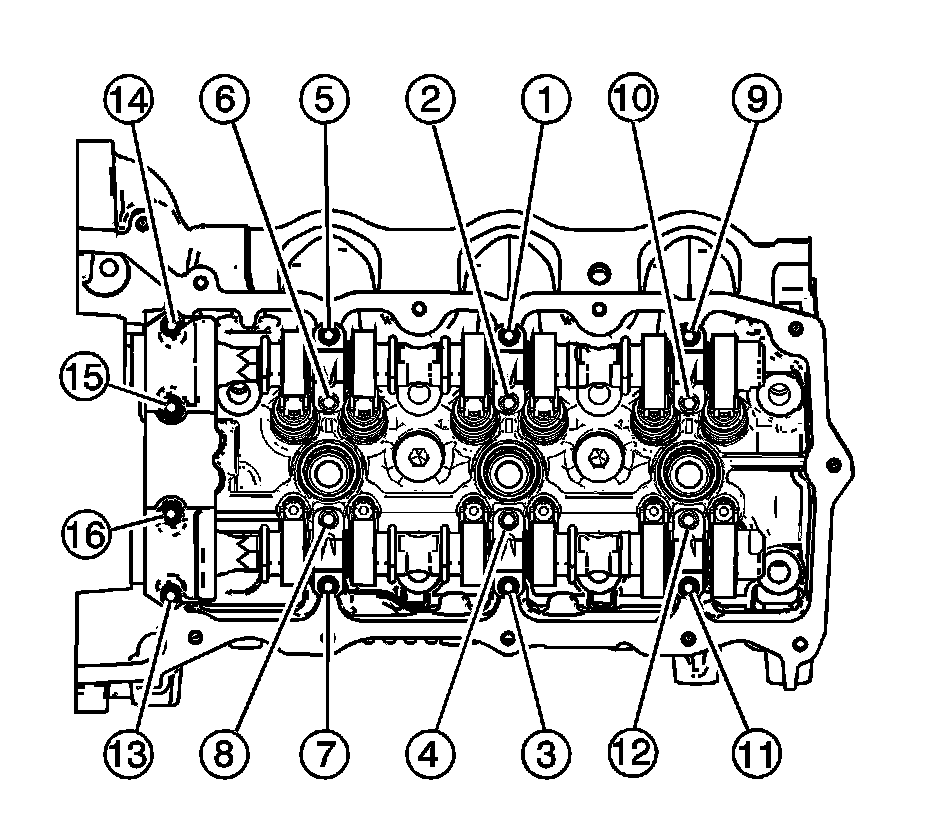

Right Sequence:

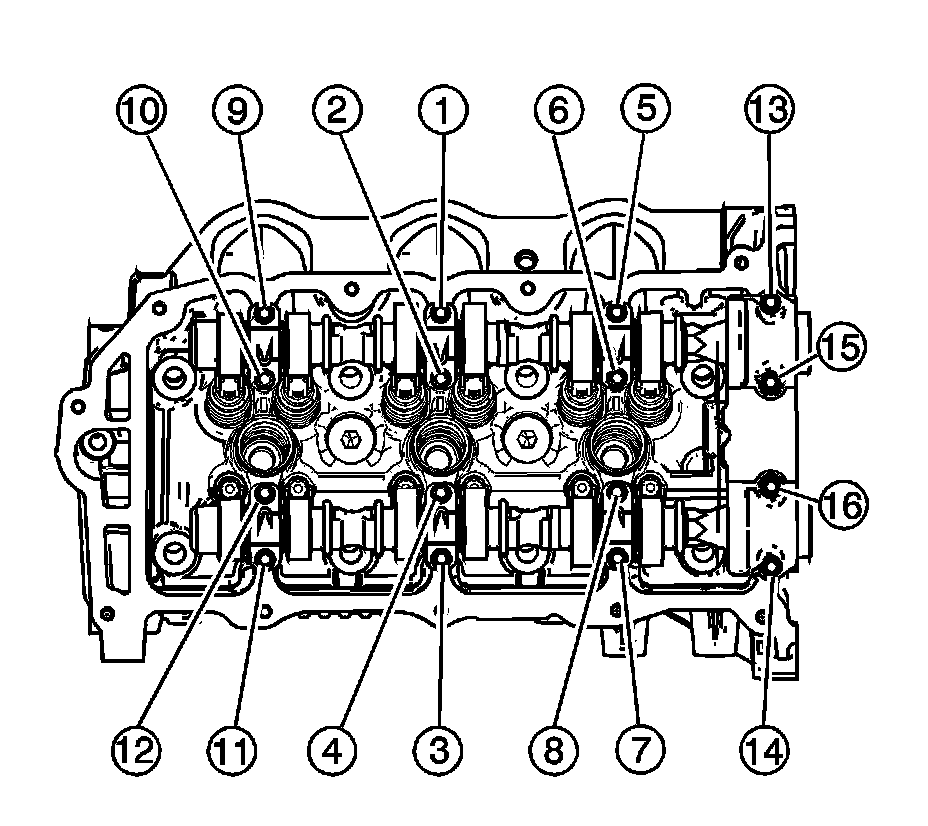

Left Sequence:

Cylinder Head Bolt - M8
First Pass 15 Nm (11 lb ft)
Final Pass 75 Degrees

Cylinder Head Bolt - M11
First Pass 30 Nm (22 lb ft)
Final Pass 150 degrees

CYLINDER HEAD BOLT RE-USABILITY

Notice: DO NOT allow oil on the cylinder head bolt bosses. DO NOT reuse the old cylinder head bolts.

INTAKE MANIFOLD

Upper-to-Cylinder Head Bolt
Long 23 Nm (17 lb ft)
Short 23 Nm (17 lb ft)

Upper-to-Lower Intake Manifold Bolt 23 Nm (17 lb ft)

CAMSHAFT BEARING CAP

Right (SFI):

Left:

Camshaft Cap Bolt 10 Nm (89 lb in)

EXHAUST MANIFOLD

Exhaust Manifold Bolt 20 Nm (15 lb ft)
